15247060 Mini-Fit BMI by Molex

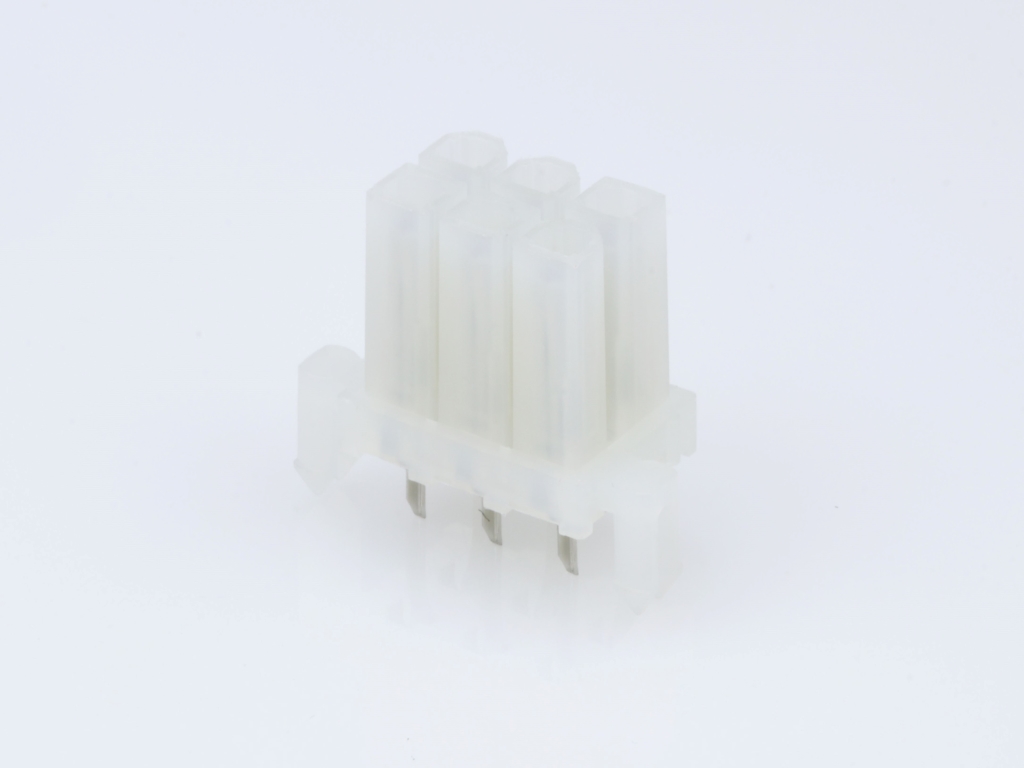

Mini-Fit BMI Receptacle Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-In Plastic Pegs, Brass Terminal, Matte Tin (Sn) Plating, Nylon UL 94V-2, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-24-7060,
0015247060, 42385-06A1 |
Where to Buy
Prices starting from US$0.98
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.80
|
4,800
in stock
|
Buy Now |
|
Newark Electronics
from US$2.67
|
363
in stock
|
Buy Now |
|
element14
from US$1.71
|
363
in stock
|
Buy Now |
|
Farnell
from US$1.84
|
363
in stock
|
Buy Now |
|
TME
from US$2.10
|
4
in stock
|
Buy Now |
|
TTI Europe
from US$1.64
|
0
in stock
|
Buy Now |
|
Sager
from US$1.00
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.51
|
0
in stock
|
Buy Now |
|
EME
from US$1.84
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Power, Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.296/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.20 mm 15247060 1 St. Tray | Conrad |
| Connector, Rcpt, 6Pos, 2Row, 4.2Mm | Newark Electronics |
| CONNECTOR, RCPT, 6POS, 2ROW, 4.2MM | element14 |
| Connector: wire-board | TME |
| MINI-FIT BMI RCPT HEADER 6CIRC | TTI Europe |
| Headers & Wire Housings MINI-FIT BMI REC HDR 04P 94V-2 | Sager |
| A-42385-06A1 V-2 CKT | Heilind Americas |
