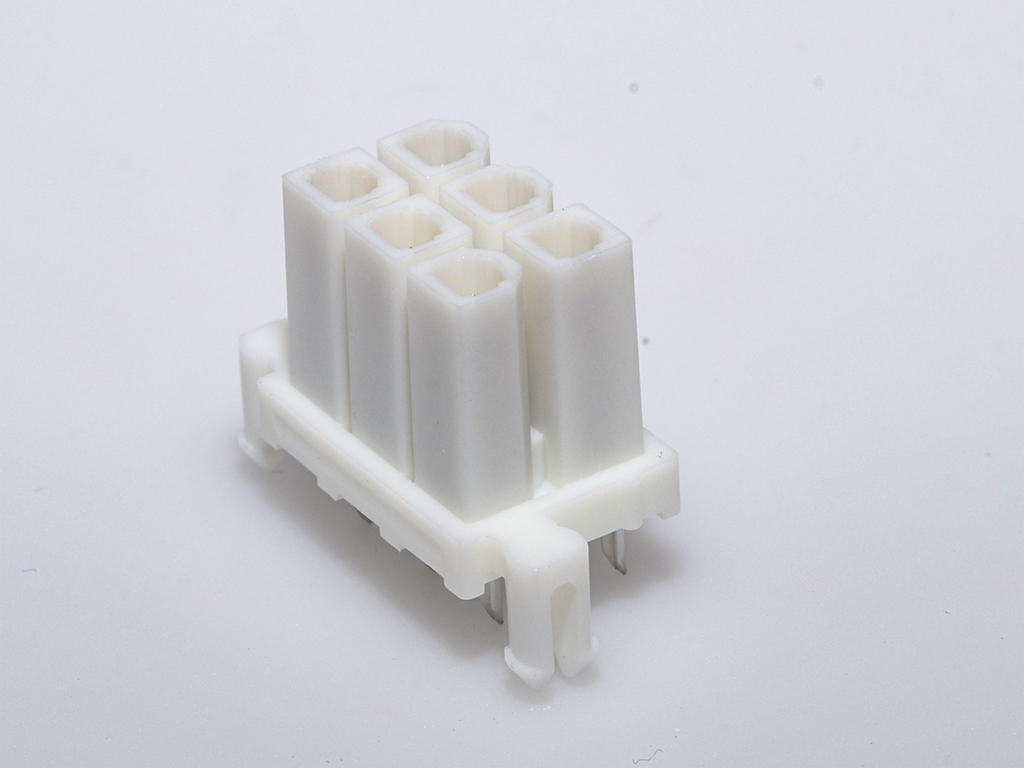

15247061 Mini-Fit BMI by Molex
Mini-Fit BMI Receptacle Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-In Plastic Pegs, Brass Terminal, Matte Tin (Sn) Plating, Nylon UL 94V-0, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-24-7061,
0015247061, 42385-06B1 |
Where to Buy
Prices starting from US$1.00
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.14
|
4,640
in stock
|
Buy Now |
|
Conrad
from US$1.53
|
386
in stock
|
Buy Now |
|
Farnell
from US$1.48
|
348
in stock
|
Buy Now |
|
Newark Electronics
from US$2.18
|
130
in stock
|
Buy Now |
|
TME
from US$1.42
|
130
in stock
|
Buy Now |
|
element14
from US$1.39
|
130
in stock
|
Buy Now |
|
RS
from US$2.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.02
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.275/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT BMI HEADER 6CIRCUITS | TTI Europe |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.20 mm 15247061 1 St. Tray | Conrad |
| CONN, RCPT, 6POS, 4.2MM, TH | Farnell |
| Conn, Rcpt, 6Pos, 2Row, 4.2Mm Rohs Compliant: Yes |Molex 15-24-7061 | Newark Electronics |
| Connector: wire-board | TME |
| CONN, RCPT, 6POS, 2ROW, 4.2MM | element14 |
| Molex 15-24-7061 PCB Header Pin | RS |
| A-42385-06B1 V-0 6 KT | Heilind Americas |
| MINI-FIT BMI REC HDR ASSY V-0 | TTI Asia |
