15249244 Mini-Fit BMI by Molex

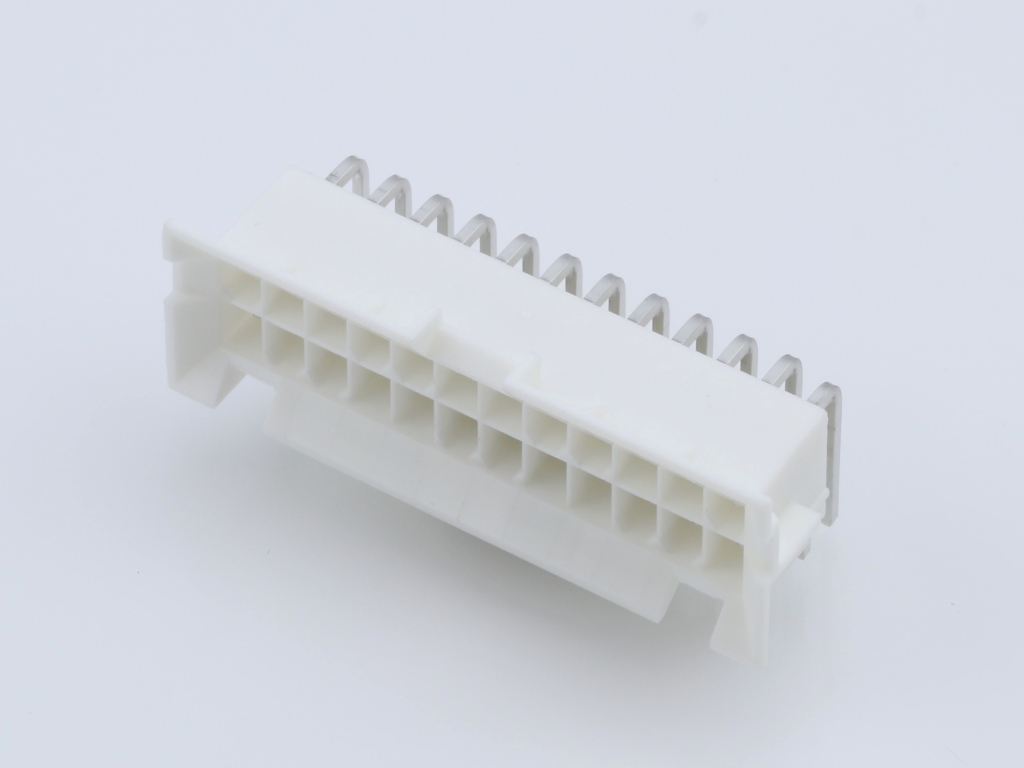

Mini-Fit BMI Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 24 Circuits, PA Polyamide Nylon 6/6, UL 94V-0, with Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-24-9244,
0015249244, A-42404-24B1 |
Where to Buy
Prices starting from US$1.97
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.65
|
600
in stock
|
Buy Now |
|
Conrad
from US$3.33
|
600
in stock
|
Buy Now |
|
Farnell
from US$5.40
|
600
in stock
|
Buy Now |
|
Newark Electronics
from US$6.07
|
70
in stock
|
Buy Now |
|
element14
from US$4.81
|
31
in stock
|
Buy Now |
|
Offical Electronic
-
|
80
in stock
|
Buy Now |
|
Rutronik
from US$3.15
|
0
in stock
|
Buy Now |
|
Avnet America
from US$4.67
|
0
in stock
|
Buy Now |
|
RS Americas
from US$5.54
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.66
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.66
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.78
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.97
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 9.334/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.80mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
