15311096 Standard .093" by Molex

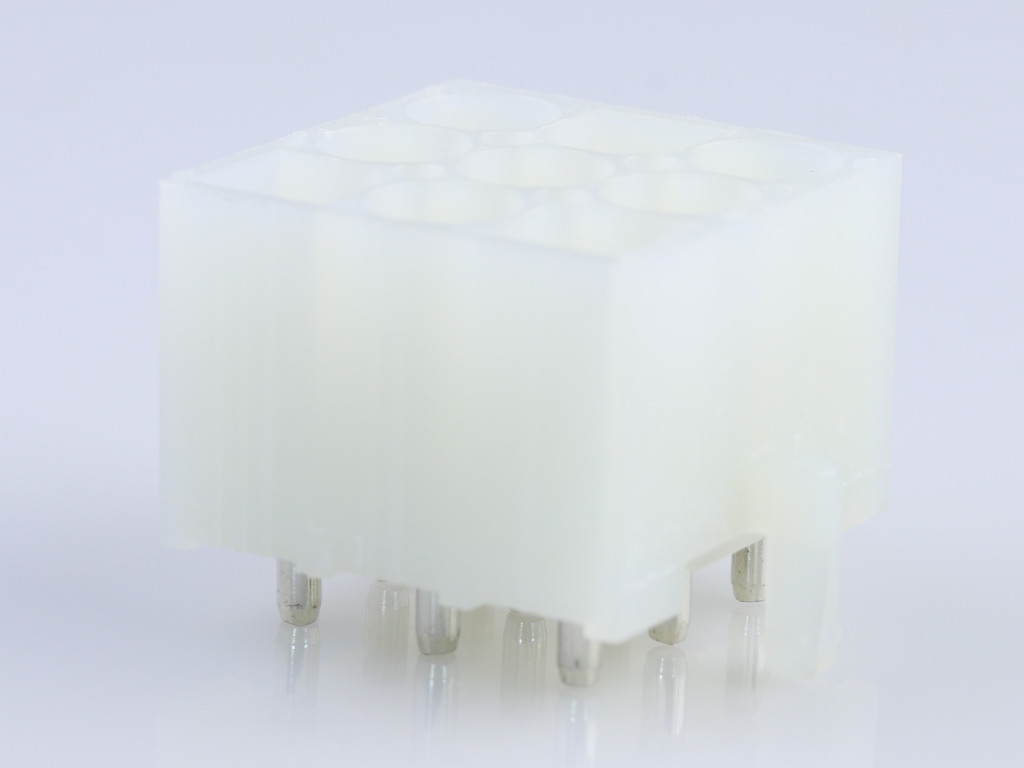

2.36mm Diameter Standard .093" Pin and Socket Header, Vertical, Solid Pin Style, with Beveled Plastic Peg, 9 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-31-1096,
0015311096, A521909B |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 6.976/g |
| Number Of Rows | 3 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 6.70mm |
| Pitch Termination Interface | 6.70mm |
| Plating Min Mating | 3.048µm |
| Plating Min Termination | 3.048µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 15-31-1096 | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 9 15311096 1 St. Bulk | Conrad |
| CONN, HEADER, 9POS, 3ROW, 6.7MM | Farnell |
| Connector, Header, 9Pos, 3Row, 6.7Mm | Newark Electronics |
| CONNECTOR, HEADER, 9POS, 3ROW, 6.7MM | element14 |
