15453514 C-Grid by Molex

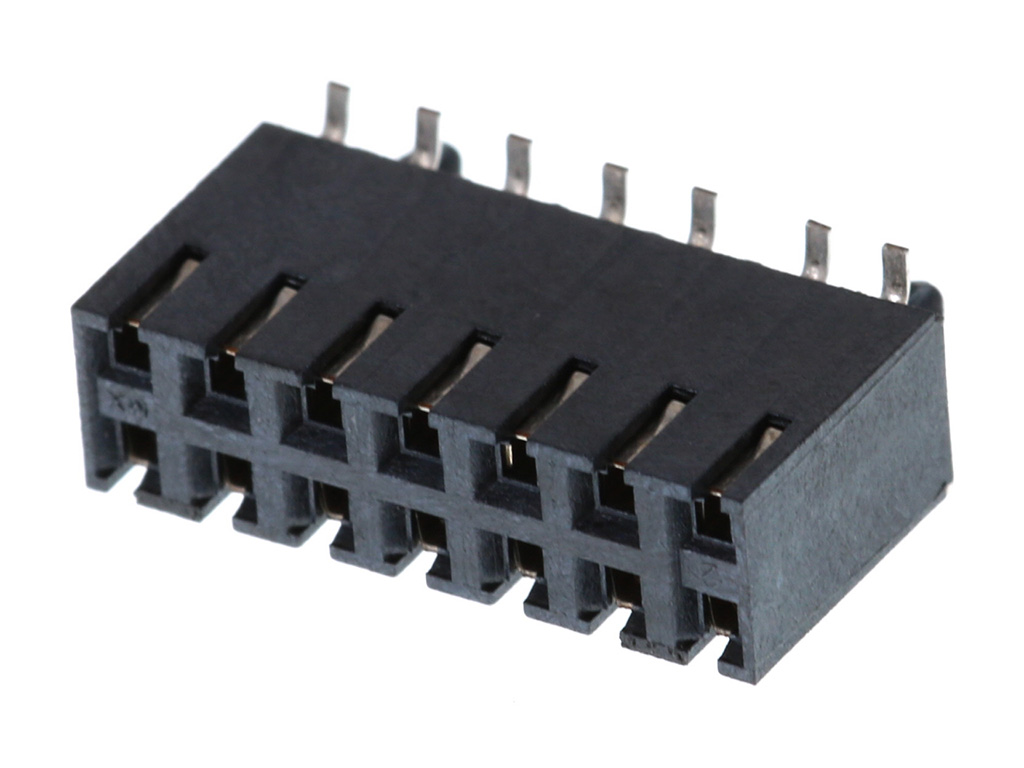

2.54mm Pitch C-Grid PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 14 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-45-3514,
0015453514, A713950114 |
Where to Buy
Prices starting from US$4.62
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V AC (RMS) |
Physical |
|
|---|---|
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.185/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.905µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
