15477620 C-Grid by Molex

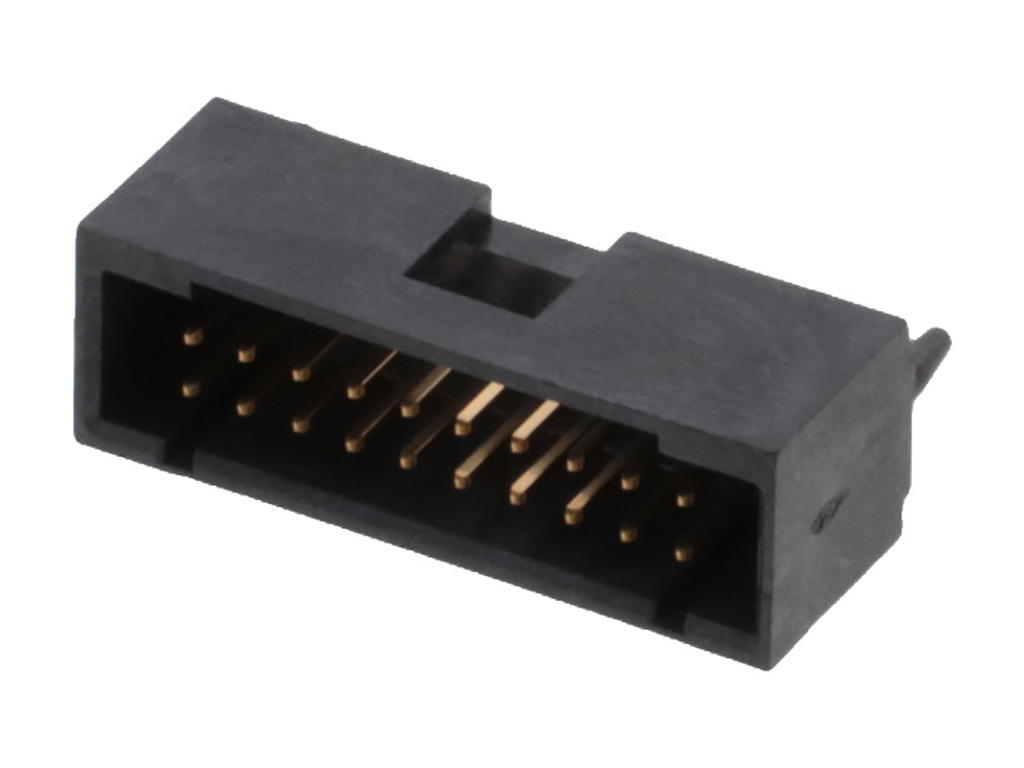

2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-47-7620,
0015477620, A-70568-0042 |
Where to Buy
Prices starting from US$1.57
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.04
|
6,448
in stock
|
Buy Now |
|
TME
from US$1.94
|
6,144
in stock
|
Buy Now |
|
Farnell
from US$2.46
|
6,144
in stock
|
Buy Now |
|
Heilind Americas
from US$1.57
|
693
in stock
|
Buy Now |
|
RS
from US$3.18
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.90
|
0
in stock
|
Buy Now |
|
element14
from US$2.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.71
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.979/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 2.40mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.910µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftleiste (Standard) Anzahl Reihen: 2 15477620 1 St. Tube | Conrad |
| Connector: wire-board | TME |
| PIN HEADERS | Farnell |
| CGRID VT SHRD HDR W/PG 15 SAU 20CKT | Heilind Americas |
| Molex 15-47-7620 PCB Header | RS |
| Header Connector, pcb Mount, recept,20 Contacts, pin,0.1 Pitch, pc Tail Terminal |Molex 15-47-7620 | Newark Electronics |
| CONNECTOR, HEADER, 20POS, 2ROW, 2.54MM | element14 |
