15910180 C-Grid by Molex

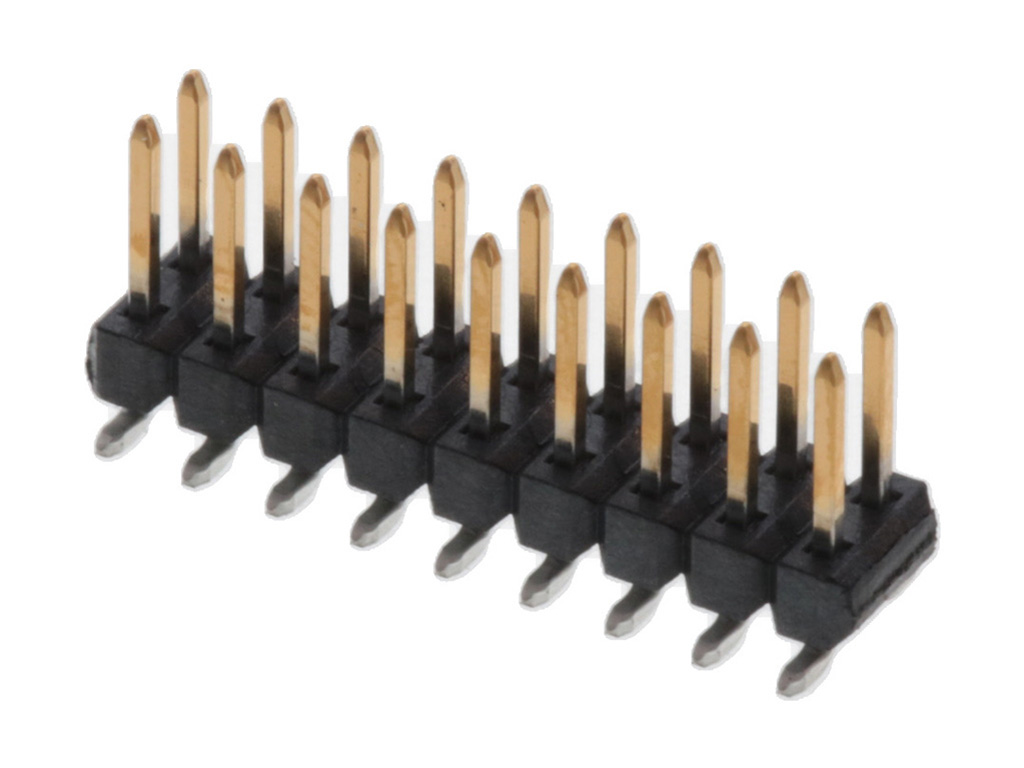

C-Grid Breakaway PCB Header, 2.54mm Pitch, Surface Mount, Dual Row, Vertical, 18 Circuits, 0.38µm Gold (Au) Plating, 6.10mm Mating Pin Length, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-91-0180,
0015910180, 71308-0118N |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.53
|
1,541
in stock
|
Buy Now |
|
TME
from US$0.97
|
1,377
in stock
|
Buy Now |
|
Conrad
from US$2.23
|
1,377
in stock
|
Buy Now |
|
Farnell
from US$2.12
|
1,377
in stock
|
Buy Now |
|
element14
from US$1.81
|
456
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
308
in stock
|
Buy Now |
|
RS
from US$1.51
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.67
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.99
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 18 |
| Circuits Maximum | 18 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Surface Mount |
| Net Weight | 1.116/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.032µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Surface Mount |
