15976041 Mini-Fit TPA by Molex

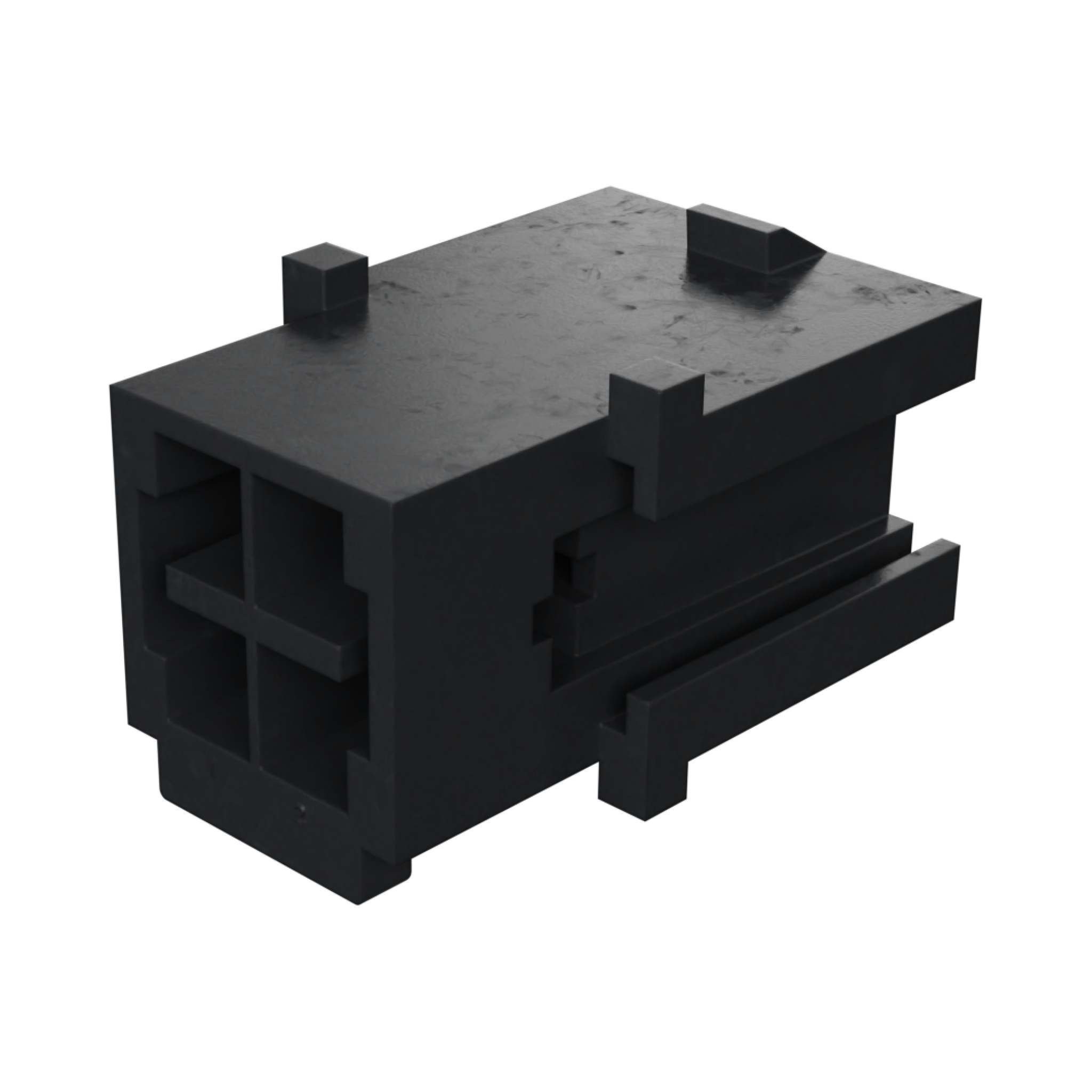

Mini-Fit TPA Plug Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
15-97-6041,
0015976041, 30068-04 |
Where to Buy
Prices starting from US$0.30
Specifications
| Product Name | Mini-Fit TPA |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 2.456/g |
| Number Of Rows | 2 |
| Panel Mount | No, Yes |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFIT TPA PLUG HSG V-0 BLK CKT | Heilind Americas |
| Header Connector, cable Mount, recept,4 Contacts, pin,0.165 Pitch, polarized Lck Rohs Compliant: Yes |Molex 15-97-6041 | Newark Electronics |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| MINIFIT TPA PLUG HSG V-0 BLK 4 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 15976041?
Additional datasheets, footprints and schematics for 15976041 are listed on our Part Details page. You can also find images and similar parts to 15976041 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 15976041 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 15976041 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 15976041 fall under?
The 15976041 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 15976041 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 15976041 you can contact the distributor directly for product support, shipping queries etc.
Is the 15976041 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 15976041 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, Farnell, Heilind Europe and TTI Asia have stock available or on a lead time for 15976041.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 15976041 often in real-time on the comparison pages.
What if I can't find stock of 15976041?
You can fill out our help required form which you can use to request a quote for 15976041 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
