16020083 CyClone,EXTreme Ten60Power,SL by Molex

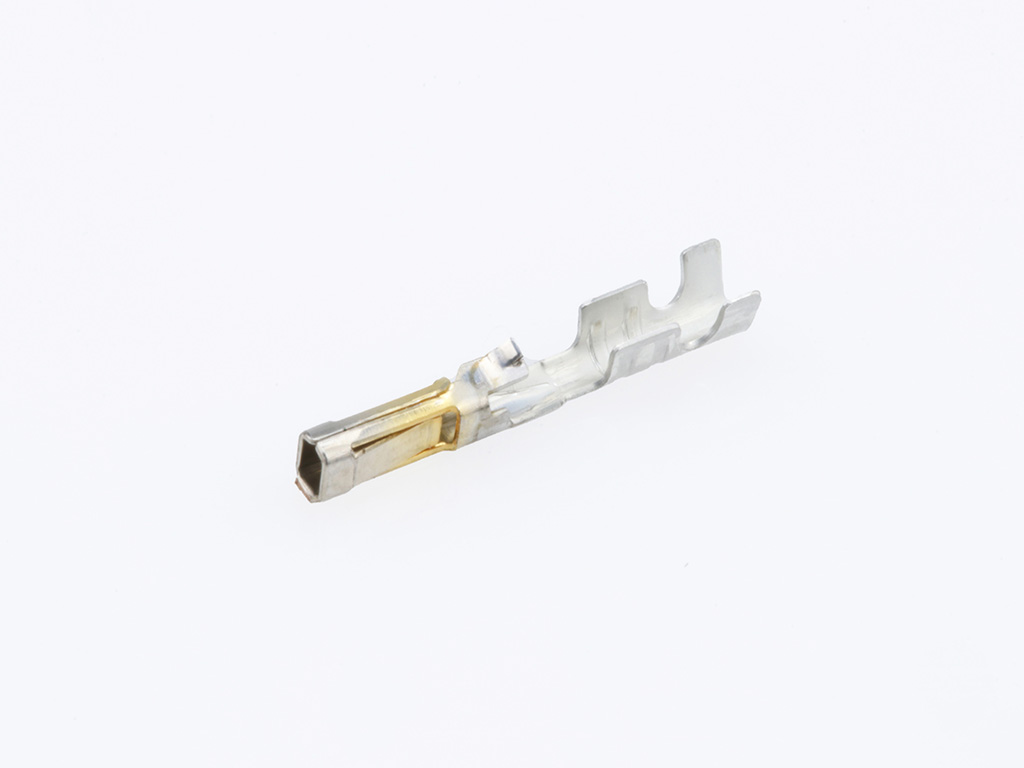

SL Crimp Terminal, Series 70058, Female, 30-24 AWG, with 0.76µm Selective Gold (Au) Plated Contact, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
16-02-0083,
0016020083, 70058-0008 |
Where to Buy
Prices starting from US$0.07
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.07
|
555,000
in stock
|
Buy Now |
|
Conrad
from US$0.35
|
200,000
in stock
|
Buy Now |
|
Farnell
from US$0.13
|
160,000
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.11
|
140,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.08
|
120,000
in stock
|
Buy Now |
|
RS
from US$0.13
|
40,900
in stock
|
Buy Now |
|
TME
from US$0.13
|
15,196
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
10,976
in stock
|
Buy Now |
|
Offical Electronic
-
|
30,945
in stock
|
Buy Now |
|
Rutronik
from US$0.12
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.09
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.10
|
0
in stock
|
Buy Now |
|
Compona
from US$0.13
|
0
in stock
|
Buy Now |
|
element14
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CyClone,EXTreme Ten60Power,SL |
|---|---|
| Application | Signal, Wire-to-Board |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.073/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.270µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.52mm max. |
| Wire Size Awg | 24, 26, 28, 30 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SL TERM CRP F BOX 30 SAU 24-3 | Heilind Americas |
| SL 16020083 Molex Inhalt: 1 St. | Conrad |
| PIN AND SOCKET CONTACTS | Farnell |
| SL .100 CRMP 24-30 AWG FE | TTI Americas |
| Molex 16-02-0083 Crimp Terminal | RS |
| Contact | TME |
| Contact, Socket, 24Awg, Crimp | Newark Electronics |
| Crimp terminal FEMALE BOX AWG 24-30 | Rutronik |
| Contact, SL 70058, Socket, Crimp, 24 AWG, Gold Plated Contacts | Avnet America |
| HEADERS, SL F TERM 24-30 AWG REEL OF 20000 | RS Americas |
| MOLEX 16-02-0083 Socket Contact SL Crimp AWG 24-30 | Compona |
| CONTACT, SOCKET, 24AWG, CRIMP | element14 |
| REELED TERMINALS | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 16020083?
Additional datasheets, footprints and schematics for 16020083 are listed on our Part Details page. You can also find images and similar parts to 16020083 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 16020083 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 16020083 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 16020083 fall under?
The 16020083 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 16020083 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 16020083 you can contact the distributor directly for product support, shipping queries etc.
Is the 16020083 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 16020083 have stock available?
Authorised distributors including Heilind Americas, Conrad, Farnell, Heilind Europe and TTI Americas have stock available or on a lead time for 16020083.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 16020083 often in real-time on the comparison pages.
What if I can't find stock of 16020083?
You can fill out our help required form which you can use to request a quote for 16020083 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
