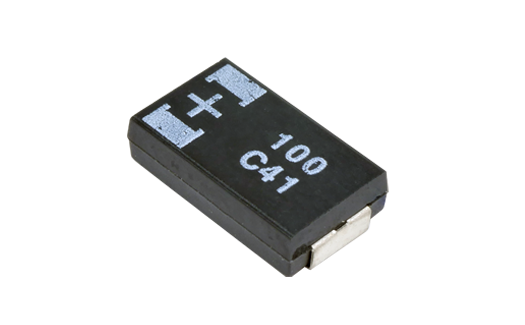

16TDC100MYF Polymer Capacitors by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Where to Buy
Prices starting from US$0.96
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.96
|
6,000
in stock
|
Buy Now |
|
Newark Electronics
from US$2.44
|
25
in stock
|
Buy Now |
|
element14
from US$2.43
|
25
in stock
|
Buy Now |
|
Farnell
from US$1.58
|
25
in stock
|
Buy Now |
|
Avnet America
from US$1.62
|
0
in stock
|
Buy Now |
|
TME
from US$1.55
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$1.35
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Rated Voltage (DC) (V) | 16 |
|---|---|
| Body Type | Surface mount type (rectangular style) |
| Capacitance (µF) | 100 |
| E.S.R.-1 (Max. Value) (mΩ) | 50 |
| Polarity Type | Polar |
| Rated Voltage (V) | 16 |
| Operating Temperature Range (°C) | -55 to 125 |
| Permissible Ripple Current (Rms) (mA) | 1800 |
| Endurance (h) | 1000 |
| Leakage Current (Max.) (μA) | 160 |
| Tolerance on Capacitance (%) | -20 to 20 |
| Length * Width (mm) | 7.3 * 4.3 |
| Temperature Range (°C) | -55 to 125 |
| Height (mm) | 1.9 |
| [email protected] | 1000h@125°C |
| Size Code | D2 |
| Rated Ripple Current-1 (mArms) | 1800 |
| Rated Ripple Current-1 (temp.) (°C) | 105 |
| Rated Ripple Current-1 (freq.) (kHz) | 100 |
| ESR (mΩ) | 50 |
| ESR Frequency (kHz) | 100 |
| Leakage Current [Max.] (μA) | 160 |
| Dissipation Factor [Max.] | 0.1 |
| Body Length (mm) | 7.3 |
| Body Width (mm) | 4.3 |
| Body Height (mm) | 1.9 |
| Minimum packaging quantity (piece) | 3000 |
| Forming & Packaging Feature | Embossed carrier taping (reel packing) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 100UF 16V 20% ESR 50 | TTI Americas |
| Cap, 100Uf, 16V, Tant, Polymer, D2 | Newark Electronics |
| CAP, 100UF, 16V, TANT, POLYMER, D2 | element14 |
| Capacitor: tantalum-polymer | TME |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 16TDC100MYF?
Additional datasheets, footprints and schematics for 16TDC100MYF are listed on our Part Details page. You can also find images and similar parts to 16TDC100MYF on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 16TDC100MYF on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 16TDC100MYF price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 16TDC100MYF fall under?
The 16TDC100MYF is listed under Capacitors > Polymer Capacitors > POSCAPâ„¢ Tantalum-Polymer > TDC Series.
Can I view similar or alternative parts?
You can view similar parts to 16TDC100MYF when available in the TDC Series range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 16TDC100MYF you can contact the distributor directly for product support, shipping queries etc.
Is the 16TDC100MYF RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 16TDC100MYF have stock available?
Authorised distributors including TTI Americas, Newark Electronics, element14, Farnell and Avnet America have stock available or on a lead time for 16TDC100MYF.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 16TDC100MYF often in real-time on the comparison pages.
What if I can't find stock of 16TDC100MYF?
You can fill out our help required form which you can use to request a quote for 16TDC100MYF from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
