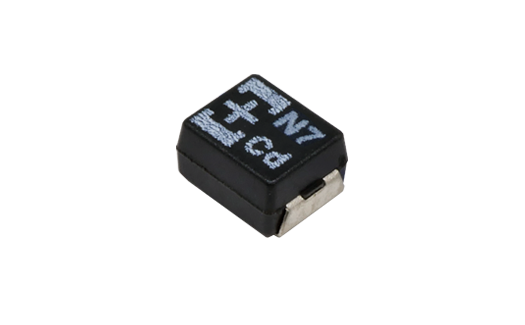

16TDC33MYFB Polymer Capacitors by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Where to Buy
Prices starting from US$0.53
| Distributor | Stock | ||
|---|---|---|---|
|
Future Electronics
from US$1.58
|
10,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.53
|
4,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
1,995
in stock
|
Buy Now |
|
element14
from US$0.71
|
1,995
in stock
|
Buy Now |
|
Farnell
from US$0.89
|
1,995
in stock
|
Buy Now |
|
Avnet America
from US$0.78
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$0.96
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Rated Voltage (DC) (V) | 16 |
|---|---|
| Body Type | Surface mount type (rectangular style) |
| Capacitance (µF) | 33 |
| E.S.R.-1 (Max. Value) (mΩ) | 90 |
| Polarity Type | Polar |
| Rated Voltage (V) | 16 |
| Operating Temperature Range (°C) | -55 to 125 |
| Permissible Ripple Current (Rms) (mA) | 1000 |
| Endurance (h) | 1000 |
| Leakage Current (Max.) (μA) | 158.4 |
| Tolerance on Capacitance (%) | -20 to 20 |
| Length * Width (mm) | 3.5 * 2.8 |
| Temperature Range (°C) | -55 to 125 |
| Height (mm) | 1.9 |
| [email protected] | 1000h@125°C |
| Size Code | B2 |
| Rated Ripple Current-1 (mArms) | 1000 |
| Rated Ripple Current-1 (temp.) (°C) | 105 |
| Rated Ripple Current-1 (freq.) (kHz) | 100 |
| ESR (mΩ) | 90 |
| ESR Frequency (kHz) | 100 |
| Leakage Current [Max.] (μA) | 158.4 |
| Dissipation Factor [Max.] | 0.1 |
| Body Length (mm) | 3.5 |
| Body Width (mm) | 2.8 |
| Body Height (mm) | 1.9 |
| Minimum packaging quantity (piece) | 2000 |
| Forming & Packaging Feature | Embossed carrier taping (reel packing) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Polymer Ta Capacitor 125C 16V 33uF 20% B case ESR 90 | Future Electronics |
| 33UF 16V 20% ESR 90 7343-19 | TTI Americas |
| Tant Poly Cap, 33Uf, 16V, 1A, 1411 | Newark Electronics |
| CAP, 33UF, 16V, TANT, POLYMER, B2 | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 16TDC33MYFB?
Additional datasheets, footprints and schematics for 16TDC33MYFB are listed on our Part Details page. You can also find images and similar parts to 16TDC33MYFB on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 16TDC33MYFB on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 16TDC33MYFB price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 16TDC33MYFB fall under?
The 16TDC33MYFB is listed under Capacitors > Polymer Capacitors > POSCAPâ„¢ Tantalum-Polymer > TDC Series.
Can I view similar or alternative parts?
You can view similar parts to 16TDC33MYFB when available in the TDC Series range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 16TDC33MYFB you can contact the distributor directly for product support, shipping queries etc.
Is the 16TDC33MYFB RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 16TDC33MYFB have stock available?
Authorised distributors including Future Electronics, TTI Americas, Newark Electronics, element14 and Farnell have stock available or on a lead time for 16TDC33MYFB.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 16TDC33MYFB often in real-time on the comparison pages.
What if I can't find stock of 16TDC33MYFB?
You can fill out our help required form which you can use to request a quote for 16TDC33MYFB from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
