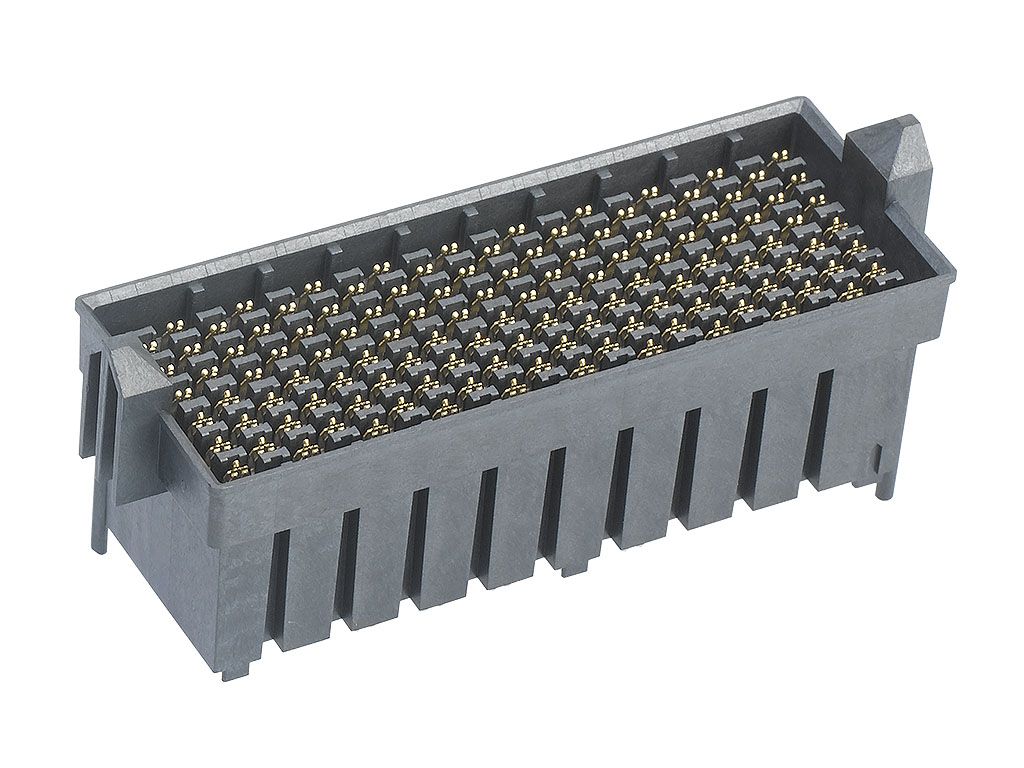

NeoScale High-Speed Mezzanine Receptacle, 2.80mm Pitch, 6x20, 120 Triads-100 Ohm (360 Circuits), 8.00mm Connector Height
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 170814-2009 |
