1714001038 Impel by Molex

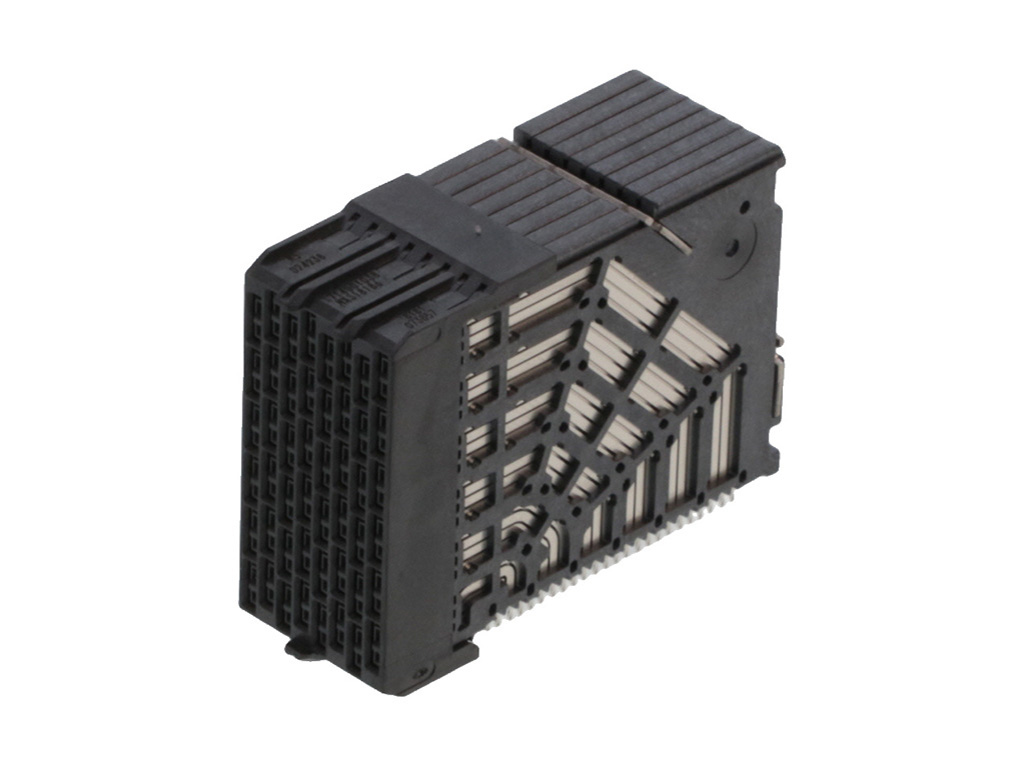

Impel 90 Ohm, 6 Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 8 Columns, 96 Circuits, Plated Through Hole Dimension 0.36mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 171400-1038 |
Where to Buy
Prices starting from US$17.50
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$51.22
|
40
in stock
|
Buy Now |
|
Conrad
from US$46.75
|
40
in stock
|
Buy Now |
|
Farnell
from US$62.02
|
36
in stock
|
Buy Now |
|
Avnet America
from US$34.80
|
0
in stock
|
Buy Now |
|
RS Americas
from US$53.06
|
0
in stock
|
Buy Now |
|
element14
from US$49.74
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$33.68
|
0
in stock
|
Buy Now |
|
Sager
from US$49.01
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$48.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$17.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Impel |
|---|---|
| Application | Coplanar, Daughtercard |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.75A |
| Data Rate | 40.0 Gbps |
| Impedance | 90Ω |
| Shield Type | Full Shield |
| Voltage Maximum | 29.9V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 96 |
| Circuits Maximum | 96 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Nickel, Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 36.170/g |
| Number Of Columns | 8 |
| Number Of Pairs | 6 |
| Number Of Rows | 12 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.00mm |
| Pc Tail Length | 1.30mm |
| Pitch Mating Interface | 1.90mm |
| Pitch Termination Interface | 1.90mm |
| Plating Min Mating | 0.762µm |
| Temperature Range Operating | -55° to +85°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| High Speed/Modular Conn Impel 1.9Mm 6X8 Ra |Molex 171400-1038 | Newark Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 96 Rastermaß: 1.90 mm 1714001038 1 St. Bulk | Conrad |
| CONN, BACKPLANE, RCPT, 96POS, 12ROW | Farnell |
| Conn Daughter Card RCP 96 POS 1.9mm Press Fit RA Through Hole Tray | Avnet America |
| IMPEL 6PX8C DC ASSY UNGUIDED | RS Americas |
| CONNECTOR, BACKPLANE, RCPT, 96POS, 8ROW | element14 |
| IMPEL BP 6PX8C ASSY UNGUI | TTI Americas |
| High Speed / Modular Connectors IMPEL BP 6PX8C ASSY UNGUI | Sager |
| Impel 6Px8C DC Assy Unguided 0 | Heilind Americas |
