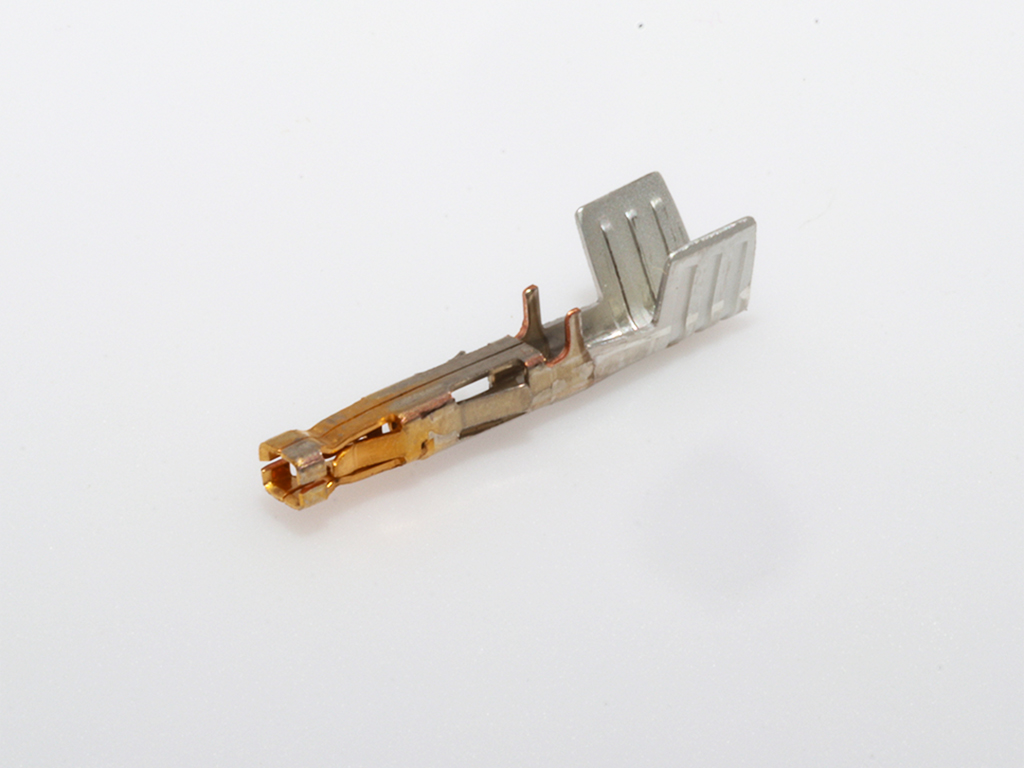

1720630311 Mega-Fit by Molex
Mega-Fit Crimp Terminal, Female, 0.38µm Gold (Au) Plating, 16-14 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172063-0311 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.40
|
106,250
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.36
|
47,812
in stock
|
Buy Now |
|
TME
from US$0.51
|
26,037
in stock
|
Buy Now |
|
Newark Electronics
from US$0.77
|
25,631
in stock
|
Buy Now |
|
element14
from US$0.58
|
25,600
in stock
|
Buy Now |
|
TTI Americas
from US$0.48
|
25,500
in stock
|
Buy Now |
|
Farnell
from US$0.64
|
24,580
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.38
|
17,000
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.35
|
12,750
in stock
|
Buy Now |
|
RS
from US$0.55
|
7,100
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.51
|
3,572
in stock
|
Buy Now |
|
Conrad
from US$0.36
|
3,572
in stock
|
Buy Now |
|
|
RS Americas
from US$0.53
|
3,182
in stock
|
Buy Now |
|
Avnet Abacus
-
|
85,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
9,099
in stock
|
Buy Now |
|
Rutronik
from US$0.47
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
Compona
from US$0.44
|
0
in stock
|
Buy Now |
|
Sager
from US$0.46
|
0
in stock
|
Buy Now |
|
EME
from US$0.46
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Net Weight | 416.000/mg |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.75mm (0.148") |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.50 |
