1720630333 Mega-Fit by Molex

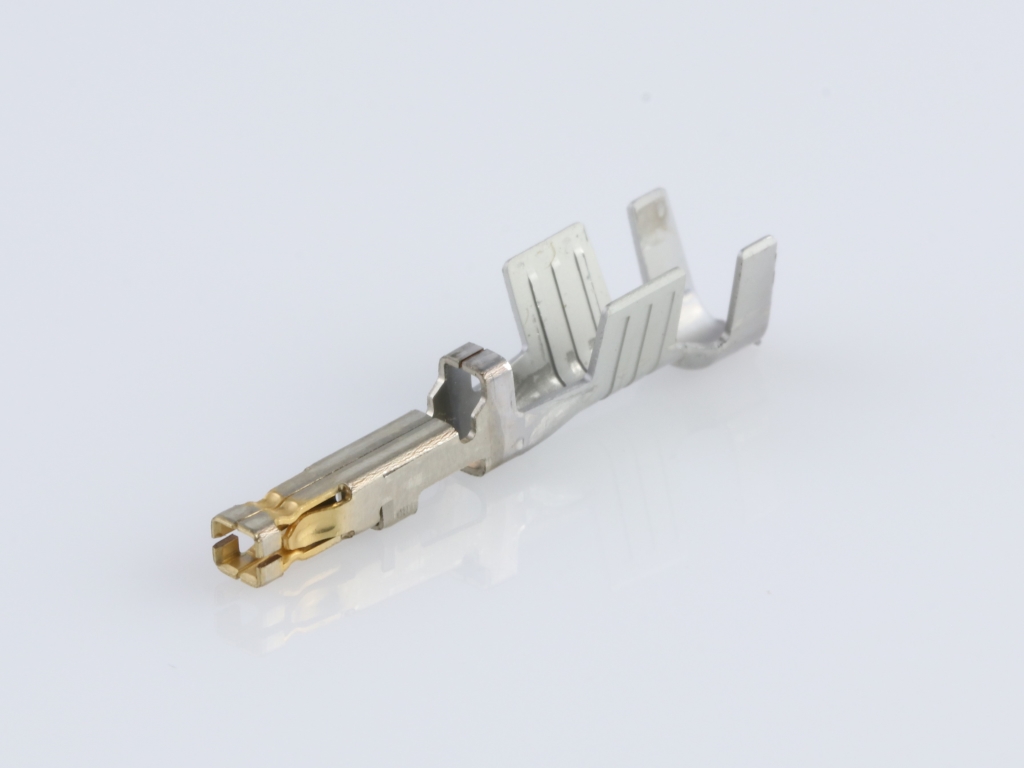

Mega-Fit Tangless TPA-Capable Crimp Terminal, Female, 0.38µm Gold (Au) Plating, Double 16+16 or Single 12 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172063-0333 |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.44
|
10,459
in stock
|
Buy Now |
|
Newark Electronics
from US$0.85
|
10,434
in stock
|
Buy Now |
|
Farnell
from US$1.59
|
10,434
in stock
|
Buy Now |
|
Rutronik
from US$0.52
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.57
|
0
in stock
|
Buy Now |
|
Sager
from US$0.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.57
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.58
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 200 |
| Gender | Female |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Net Weight | 0.330/g |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 4.06mm max. |
| Wire Size Awg | 12, 16+16 |
| Wire Size Mm | 4.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 12AWG, CRIMP | element14 |
| Contact, Socket, 12Awg, Crimp | Newark Electronics |
| Mega-Fit Crimp terminal FEMALE AWG 12 AU | Rutronik |
| MEGA-FIT TANGLESS TPA CAPABLE | TTI Europe |
| Headers & Wire Housings Mega-fit Female Tml 15G 12AWG Formed | Sager |
| MEGA-FIT FEMALE TML 15'G 12AW FORMED | Heilind Americas |
| MEGA-FIT FEMALE TML 15'G | TTI Asia |
| Mega-Fit Female Terminal 12AWG Wire | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1720630333?
Additional datasheets, footprints and schematics for 1720630333 are listed on our Part Details page. You can also find images and similar parts to 1720630333 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1720630333 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1720630333 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1720630333 fall under?
The 1720630333 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 1720630333 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1720630333 you can contact the distributor directly for product support, shipping queries etc.
Is the 1720630333 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1720630333 have stock available?
Authorised distributors including element14, Newark Electronics, Farnell, Rutronik and TTI Europe have stock available or on a lead time for 1720630333.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1720630333 often in real-time on the comparison pages.
What if I can't find stock of 1720630333?
You can fill out our help required form which you can use to request a quote for 1720630333 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
