1720651002 Mega-Fit by Molex

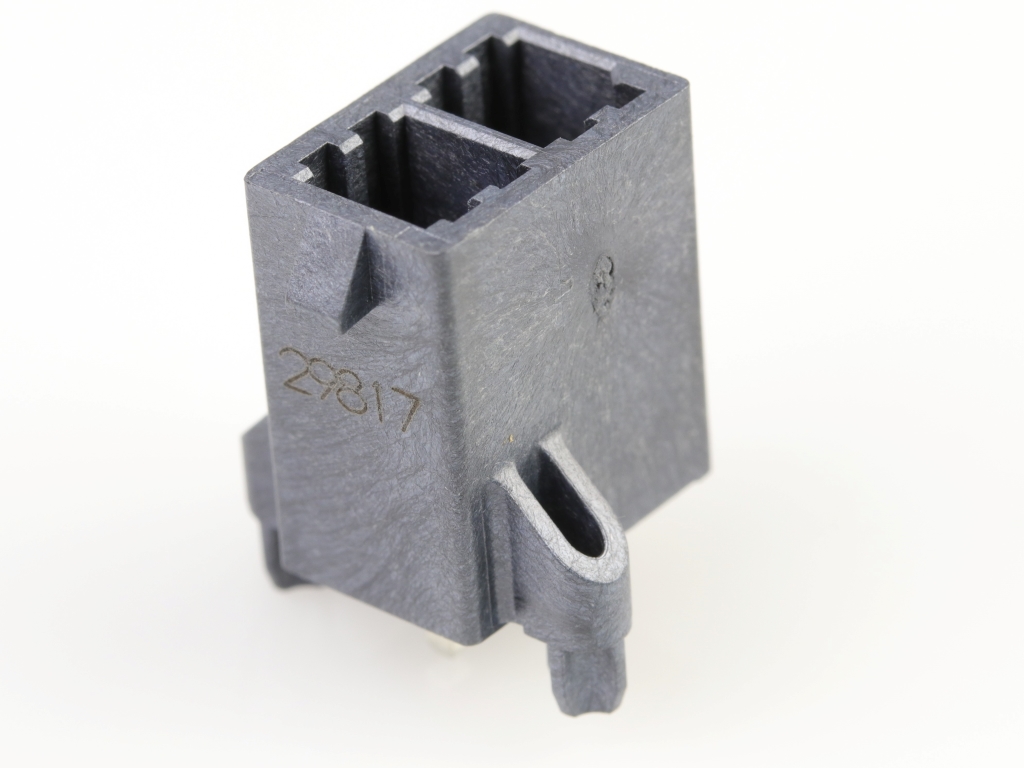

Mega-Fit Vertical Header, 5.70mm Pitch, Through Hole, Dual Row, 2 Circuits, 0.76µm Gold (Au) Plating, 3.73mm Tail Length, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172065-1002 |
Where to Buy
Prices starting from US$3.04
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$3.09
|
21,185
in stock
|
Buy Now |
|
Newark Electronics
from US$4.80
|
1,058
in stock
|
Buy Now |
|
element14
from US$4.22
|
1,058
in stock
|
Buy Now |
|
Farnell
from US$4.36
|
1,058
in stock
|
Buy Now |
|
TME
from US$4.30
|
516
in stock
|
Buy Now |
|
RS
from US$6.43
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.04
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.60
|
0
in stock
|
Buy Now |
|
Sager
from US$3.17
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 16.78mm |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.808/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.73mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
| Unmated Height | 14.80mm |
