1722537023 Ultra-Fit by Molex

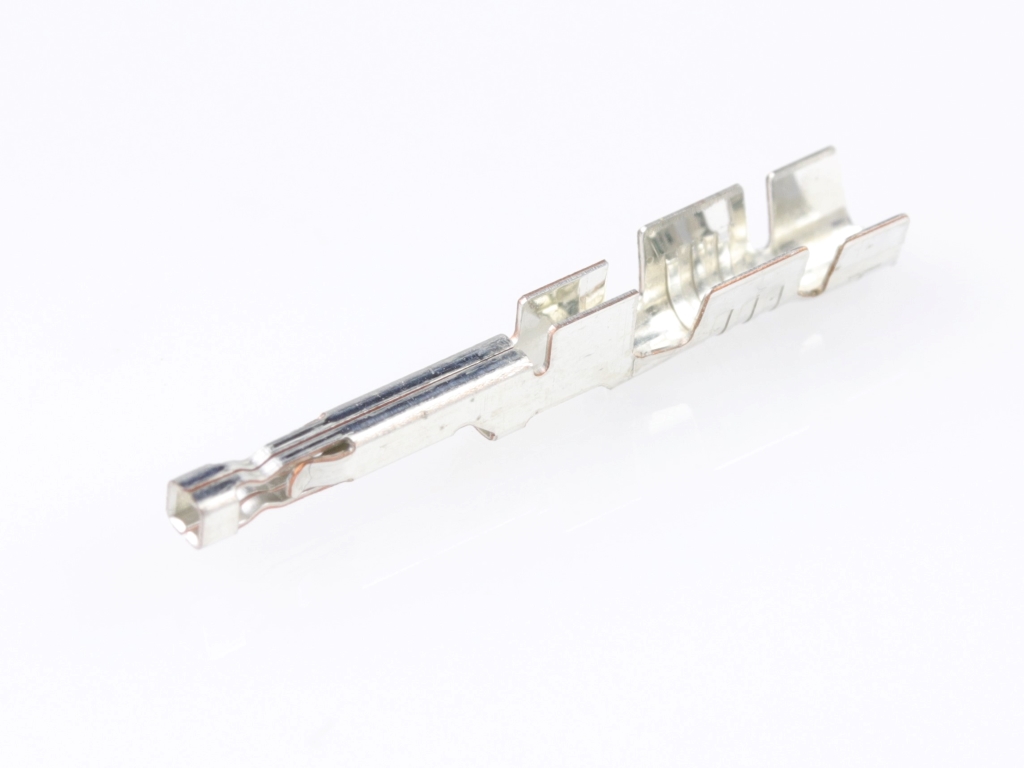

Ultra-Fit Tangless Crimp Terminal, Female, Tin (Sn) Plating, 18-16 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172253-7023 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.09
|
598,500
in stock
|
Buy Now |
|
TTI Europe
from US$0.12
|
84,000
in stock
|
Buy Now |
|
Farnell
from US$0.15
|
44,100
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
21,000
in stock
|
Buy Now |
|
element14
from US$0.16
|
18,390
in stock
|
Buy Now |
|
RS
from US$0.18
|
8,400
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
7,000
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.19
|
5,000
in stock
|
Buy Now |
|
Conrad
from US$0.16
|
5,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
5,200
in stock
|
Buy Now |
|
TME
from US$0.17
|
0
in stock
|
Buy Now |
|
Sager
from US$0.11
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.09
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ultra-Fit |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 14.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 201.560/mg |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.70-2.00mm |
| Wire Size Awg | 16, 18 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| ULTRA-FIT CRIMP TERM 16-18 TIN PRE-P | Heilind Americas |
| ULTRA-FIT CRIMP TERM 16-18 TIN | TTI Europe |
| PIN AND SOCKET CONTACTS | Farnell |
| ULTRA-FIT TANGLESS CRIMP TERMINAL | element14 |
| Molex 172253-7023 | RS |
| Ultra-Fit Tangless Crimp Terminal | Newark Electronics |
| Molex 1722537023 Ultra-fit Tangless Crimp Terminal Female Tin 16-18 AWG | Rapid Electronics |
| Molex Crimpkontakt 1722537023 1 St. | Conrad |
| Contact | TME |
| Terminals ULTRA-FIT 16-18 AWG SN | Sager |
