1725123412 EXTreme Ten60Power by Molex

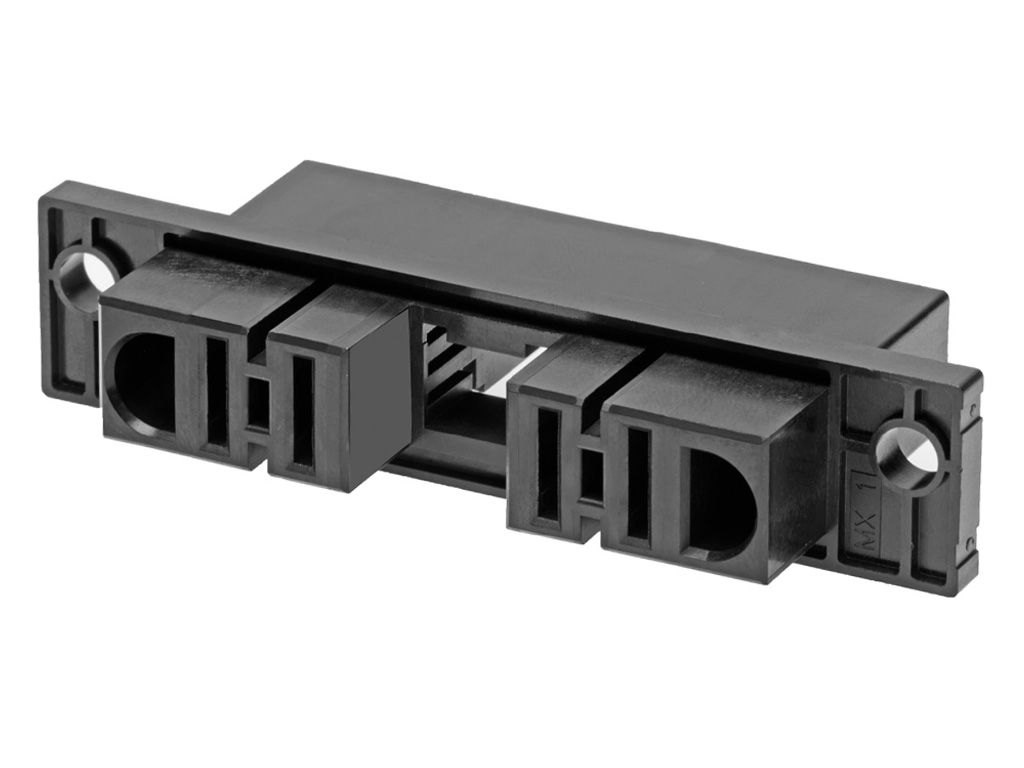

EXTreme Ten60Power Panel-to-Board Receptacle Housing, 12 Signal Circuits, 4 Power Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172512-3412 |
Specifications
| Product Name | EXTreme Ten60Power |
|---|---|
| Application | Panel-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 16 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 14.770/g |
| Number Of Rows | 1, 3 |
| Panel Mount | Yes |
| Pitch Mating Interface | 2.00mm, 5.50mm, 7.50mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 172512-3412 Connector Housing | RS |
| Receptacle Housing, 16Pos, Pbt, Black | Newark Electronics |
| Power to the Board TEN60 PLG 4P-12S PTB | Sager |
| TEN60 PTB RECPT HSG MIX 4P-12S | Heilind Americas |
