1727040005 FCT Products by Molex

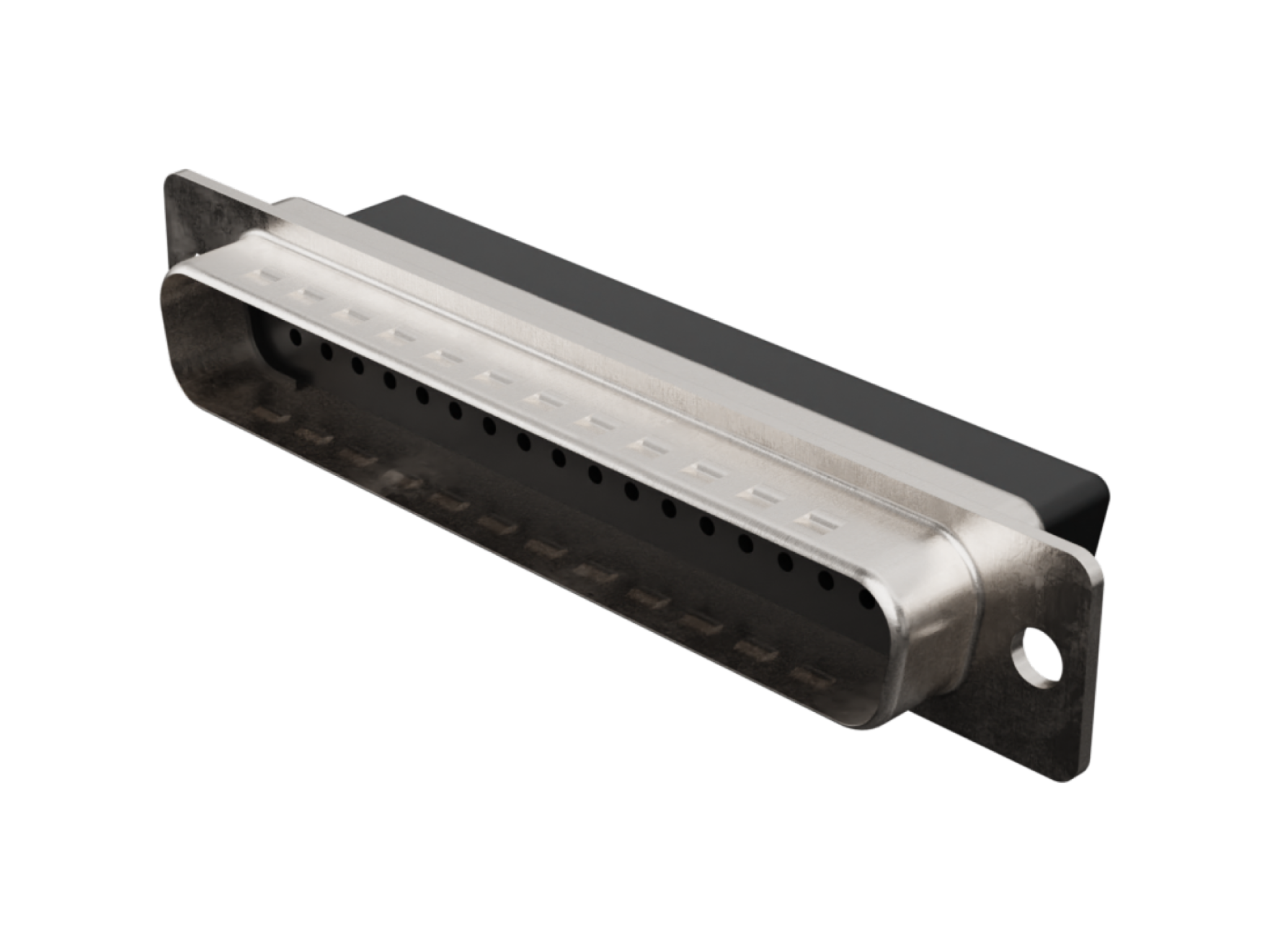

FCT Standard-Density D-Sub Crimp Housing, Male, Shell with Dimples, 37 Circuits, Black Front and Rear Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0005,
FL37P7-K120 |
Where to Buy
Prices starting from US$1.57
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$1.69
|
790
in stock
|
Buy Now |
|
RS
from US$5.01
|
452
in stock
|
Buy Now |
|
Farnell
from US$3.39
|
369
in stock
|
Buy Now |
|
TME
from US$1.87
|
360
in stock
|
Buy Now |
|
Conrad
from US$3.87
|
360
in stock
|
Buy Now |
|
element14
from US$1.93
|
223
in stock
|
Buy Now |
|
TTI Europe
from US$1.62
|
80
in stock
|
Buy Now |
|
Newark Electronics
from US$2.49
|
2
in stock
|
Buy Now |
|
Offical Electronic
-
|
983
in stock
|
Buy Now |
|
Compona
from US$1.57
|
0
in stock
|
Buy Now |
|
Sager
from US$1.62
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.66
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 37 |
| Color Resin | Black |
| Gender | Male |
| Material Resin | Polybutylene Terephthalate (PBT), Polyamide (PA) |
| Material Shell | Steel |
| Net Weight | 11.200/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +115°C |
| Termination Style | Crimp |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 18, 20, 22, 24, 26, 28 |
| Shell Size | 4 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FL37P7-K120 FCT DSUB CRP PLG 37 PN | Heilind Europe |
| FCT from Molex FL37P7-K120 / 1727040005 | RS |
| CONNECTORS | Farnell |
| Connector: D-Sub | TME |
| Molex 1727040005 D-SUB Steckverbinder Polzahl: 37 1 St. Box | Conrad |
| D SUB HOUSING, PLUG, DC, 37POS | element14 |
| FCT DSUB CRIMP 37 POS PLUG | TTI Europe |
| D Sub Conn, Plug, 37Pos, Crimp | Newark Electronics |
| MOLEX FL37P7-K120 D-Sub Connector shell male 37p | Compona |
| D-Sub High Density Connectors FCT DSUB CRP PLG 37 PN | Sager |
| DSUB, CRIMP, 37 POS, PLUG | TTI Asia |
172704-0005 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 37POS CRIMP
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 37Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | Crimp |
| D Sub Shell Size | DC |
| Product Range | 172704 Series |
| Connector Body Material | Steel Body |
| Contact Material | - |
| Contact Plating | - |
| Contact Termination | Crimp |
