1727040006 FCT Products by Molex

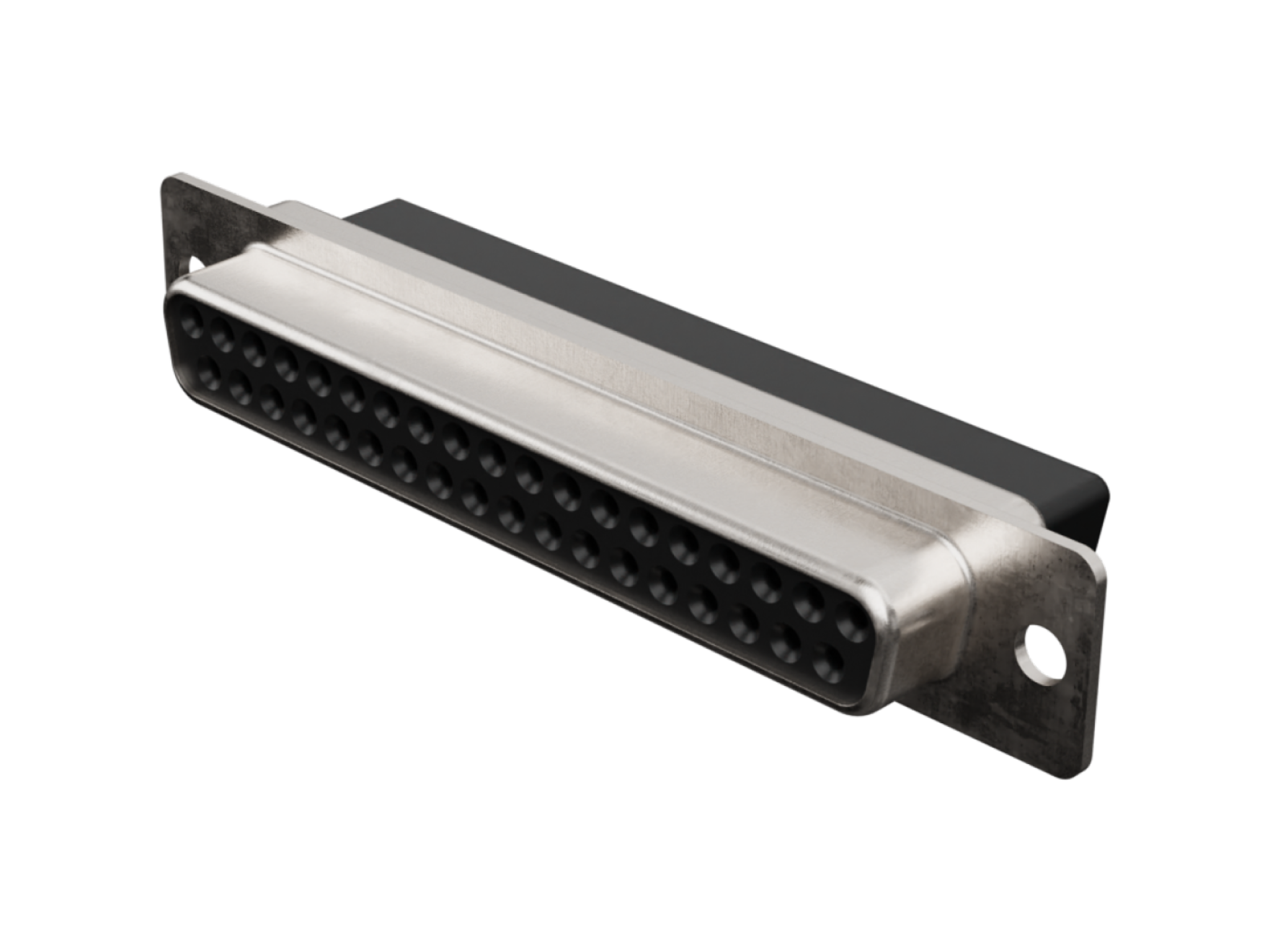

FCT Standard-Density D-Sub Crimp Housing, Female, Shell without Dimples, 37 Circuits, Black Front and Rear Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0006,
FL37S7-K121 |
Where to Buy
Prices starting from US$0.69
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$3.54
|
644
in stock
|
Buy Now |
|
Heilind Europe
from US$1.76
|
400
in stock
|
Buy Now |
|
RS
from US$3.10
|
332
in stock
|
Buy Now |
|
Newark Electronics
from US$0.69
|
182
in stock
|
Buy Now |
|
element14
from US$2.02
|
123
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.85
|
74
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,624
in stock
|
Buy Now |
|
TME
from US$2.08
|
0
in stock
|
Buy Now |
|
Compona
from US$1.57
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$3.12
|
0
in stock
|
Buy Now |
|
Sager
from US$1.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 37 |
| Color Resin | Black |
| Gender | Female |
| Material Resin | Polybutylene Terephthalate (PBT), Polyamide (PA) |
| Material Shell | Steel |
| Net Weight | 13.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +115°C |
| Termination Style | Crimp |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 18, 20, 22, 24, 26, 28 |
| Shell Size | 4 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D SUB HOUSING, RCPT, 37POS, STEEL | Farnell |
| FL37S7-K121 FCT DSUB CRP RC 37 PN | Heilind Europe |
| FCT from Molex FL37S7-K121 / 1727040006 | RS |
| Fct Dsub Crp Rcpt 37 Pn Rohs Compliant: Yes |Molex/fct 172704-0006 | Newark Electronics |
| D SUB HOUSING, RCPT, DC, 37POS | element14 |
| Contact | TME |
| MOLEX FL37S7-K121 D-Sub Connector shell female 37p | Compona |
| FCT DSUB CRIMP 37 POS RCPT | TTI Europe |
| D-Sub High Density Connectors FCT DSUB CRP RCPT 37 PN | Sager |
172704-0006 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 37POS CRIMP
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 37Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Crimp |
| D Sub Shell Size | DC |
| Product Range | 172704 Series |
| Connector Body Material | Steel Body |
| Contact Material | - |
| Contact Plating | - |
| Contact Termination | Crimp |
