1727040009 FCT Products by Molex

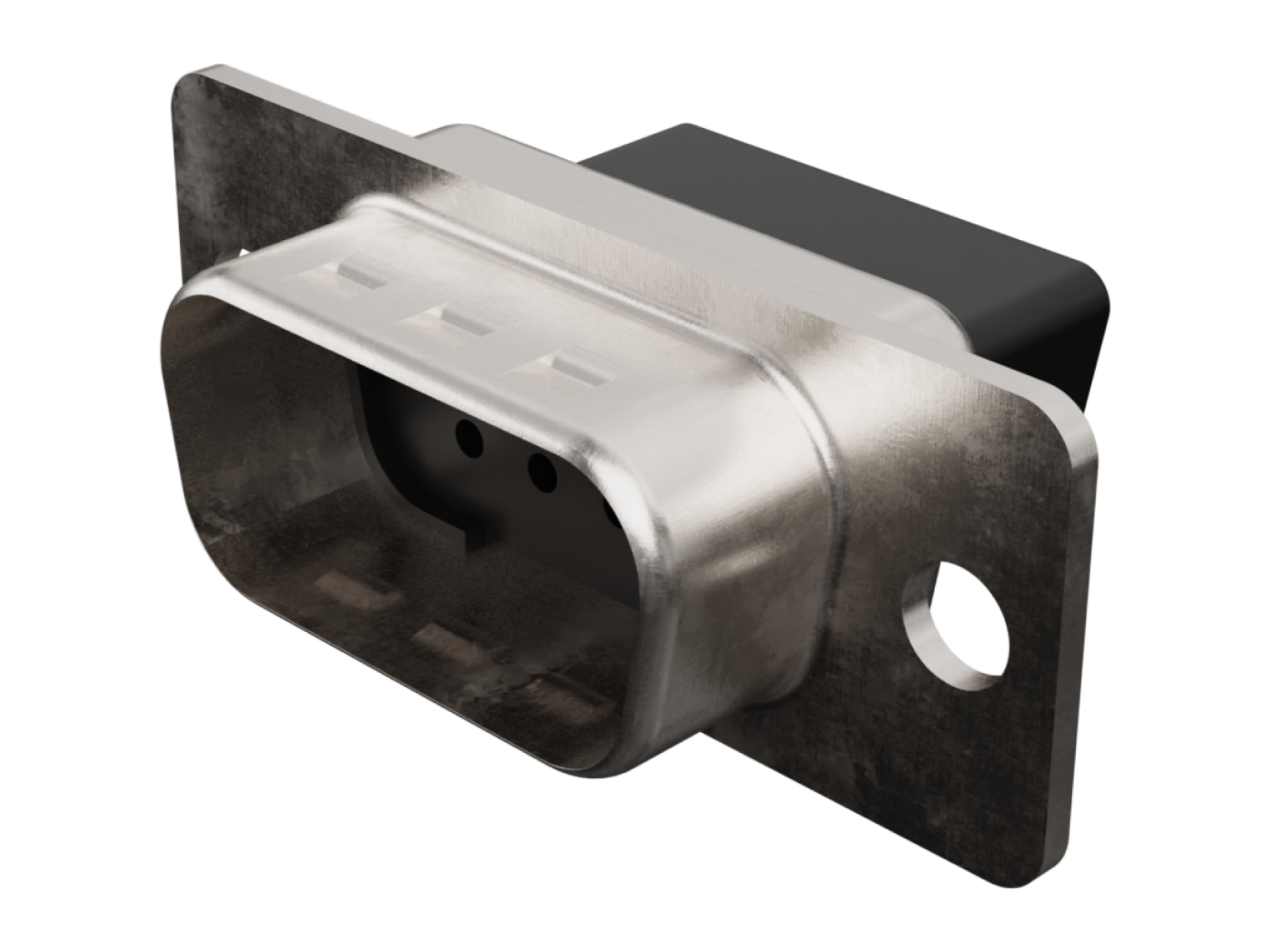

FCT Standard-Density D-Sub Crimp Housing, Male, Shell with Dimples, 9 Circuits, Black Front and Rear Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0009,
FL09P7-K120 |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$1.16
|
8,079
in stock
|
Buy Now |
|
Farnell
from US$2.34
|
3,023
in stock
|
Buy Now |
|
element14
from US$1.44
|
1,052
in stock
|
Buy Now |
|
RS
from US$3.13
|
598
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.49
|
130
in stock
|
Buy Now |
|
Conrad
from US$2.85
|
127
in stock
|
Buy Now |
|
Rutronik
from US$1.32
|
100
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.57
|
3
in stock
|
Buy Now |
|
Offical Electronic
-
|
886
in stock
|
Buy Now |
|
Newark Electronics
from US$1.73
|
0
in stock
|
Buy Now |
|
TME
from US$1.42
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 9 |
| Color Resin | Black |
| Gender | Male |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 4.600/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Crimp |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FL09P7-K120 FCT DSUB CRP PLG 09 PN | Heilind Europe |
| D SUB HOUSING | Farnell |
| D SUB HOUSING, PLUG, DA, 9POS | element14 |
| FCT from Molex FL09P7-K120 / 1727040009 | RS |
| Molex 1727040009 D-sub Plug 9-pin Male Crimp Housing Black 1Pc | Rapid Electronics |
| Molex 1727040009 D-SUB Stecker Polzahl: 9 Crimpen 1 St. Carton | Conrad |
| 09P D-Sub Crimp Housing | Rutronik |
| Fct Dsub Crp Plg 09 Pn Rohs Compliant: Yes |Molex 172704-0009 | Newark Electronics |
| Connector: D-Sub | TME |
172704-0009 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 9POS CRIMP
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | Crimp |
| D Sub Shell Size | DE |
| Product Range | 172704 Series |
| Connector Body Material | Steel Body |
| Contact Material | - |
| Contact Plating | - |
| Contact Termination | Crimp |
