1727040010 FCT Products by Molex

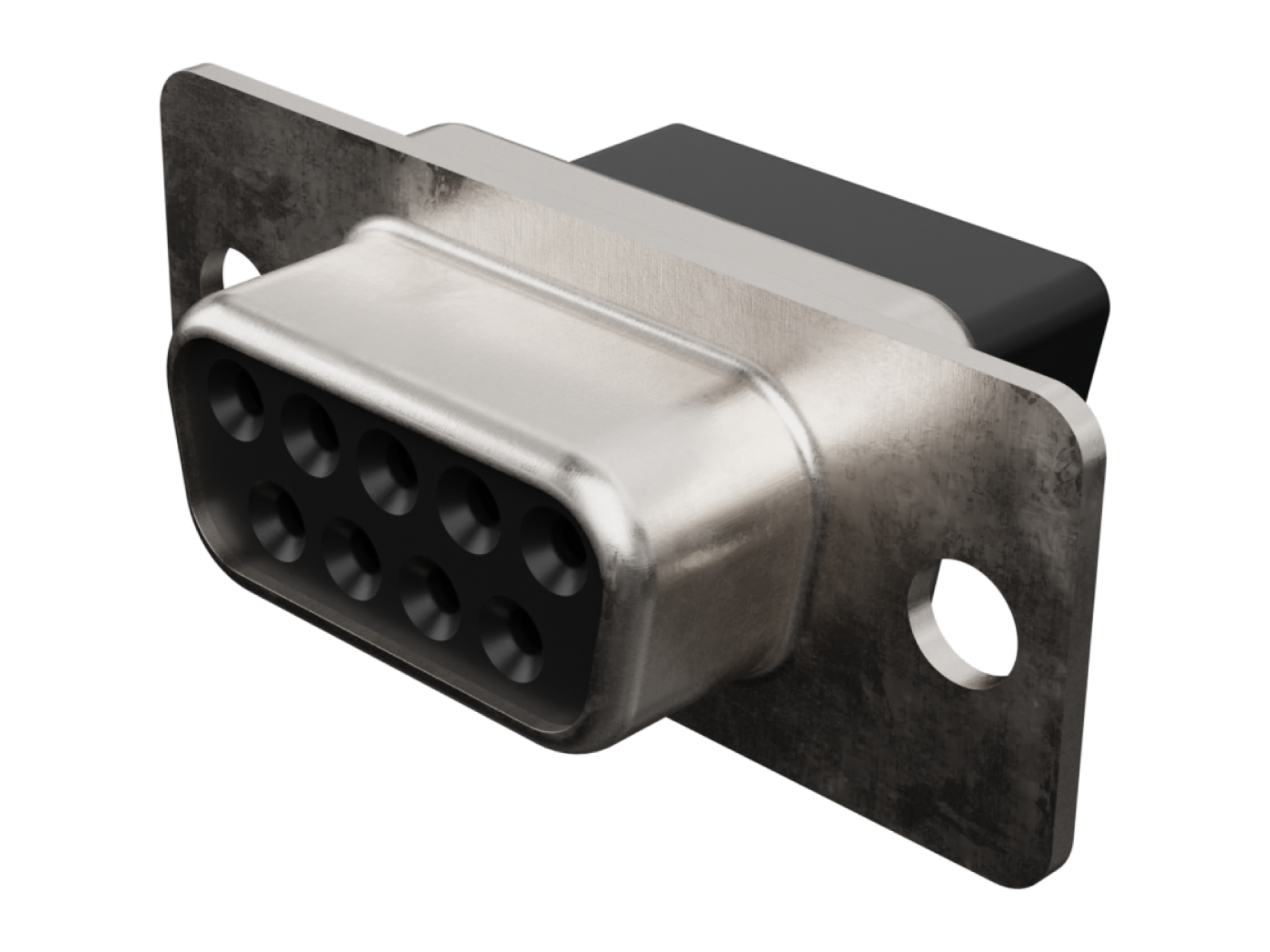

FCT Standard-Density D-Sub Crimp Housing, Female, Shell without Dimples, 9 Circuits, Black Front and Rear Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0010,
FL09S7-K121 |
Where to Buy
Prices starting from US$0.99
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$1.01
|
15,608
in stock
|
Buy Now |
|
TTI Europe
from US$1.24
|
3,100
in stock
|
Buy Now |
|
RS
from US$2.69
|
2,996
in stock
|
Buy Now |
|
Rutronik
from US$1.11
|
2,500
in stock
|
Buy Now |
|
Newark Electronics
from US$1.81
|
2,096
in stock
|
Buy Now |
|
element14
from US$1.41
|
2,096
in stock
|
Buy Now |
|
Farnell
from US$1.90
|
2,096
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.13
|
222
in stock
|
Buy Now |
|
|
RS Americas
from US$13.17
|
80
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,751
in stock
|
Buy Now |
|
Avnet America
from US$0.99
|
0
in stock
|
Buy Now |
|
TME
from US$1.39
|
0
in stock
|
Buy Now |
|
Compona
from US$1.21
|
0
in stock
|
Buy Now |
|
Sager
from US$1.05
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.69
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 9 |
| Color Resin | Black |
| Gender | Female |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 4.800/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Crimp |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FL09S7-K121 FCT DSUB CRP RCPT 09 PN | Heilind Europe |
| FCT DSUB CRIMP 9 POS RCPT | TTI Europe |
| FCT from Molex FL09S7-K121 / 1727040010 | RS |
| 09P D-Sub Crimp Housing | Rutronik |
| D Sub Conn, Rcpt, 9Pos, Crimp | Newark Electronics |
| D SUB HOUSING, PLUG, DA, 15POS, CRIMP | element14 |
| DSUB, CRIMP, 9 POS, RCPT | TTI Americas |
| STANDARD-DENSITY D-SUB CRIMP HOUSING, FEMALE, SHELL WITHOUT DIMPLES, 9 CIRCUITS | RS Americas |
| D Sub Connector Housing, DB9, 9 Ways, D Sub, DE, 172704 Series, Socket, Steel Body | Avnet America |
| Contact | TME |
| MOLEX FL09S7-K121 D-Sub Connector shell female 9p | Compona |
| D-Sub High Density Connectors FCT DSUB CRP RCPT 09 PN | Sager |
172704-0010 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 9POS CRIMP
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Crimp |
| D Sub Shell Size | DE |
| Product Range | 172704 Series |
| Connector Body Material | Steel Body |
| Contact Material | - |
| Contact Plating | - |
| Contact Termination | Crimp |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727040010?
Additional datasheets, footprints and schematics for 1727040010 are listed on our Part Details page. You can also find images and similar parts to 1727040010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727040010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727040010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727040010 fall under?
The 1727040010 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1727040010 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727040010 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727040010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727040010 have stock available?
Authorised distributors including Heilind Europe, TTI Europe, RS, Rutronik and Newark Electronics have stock available or on a lead time for 1727040010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727040010 often in real-time on the comparison pages.
What if I can't find stock of 1727040010?
You can fill out our help required form which you can use to request a quote for 1727040010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
