1727040014 FCT Products by Molex

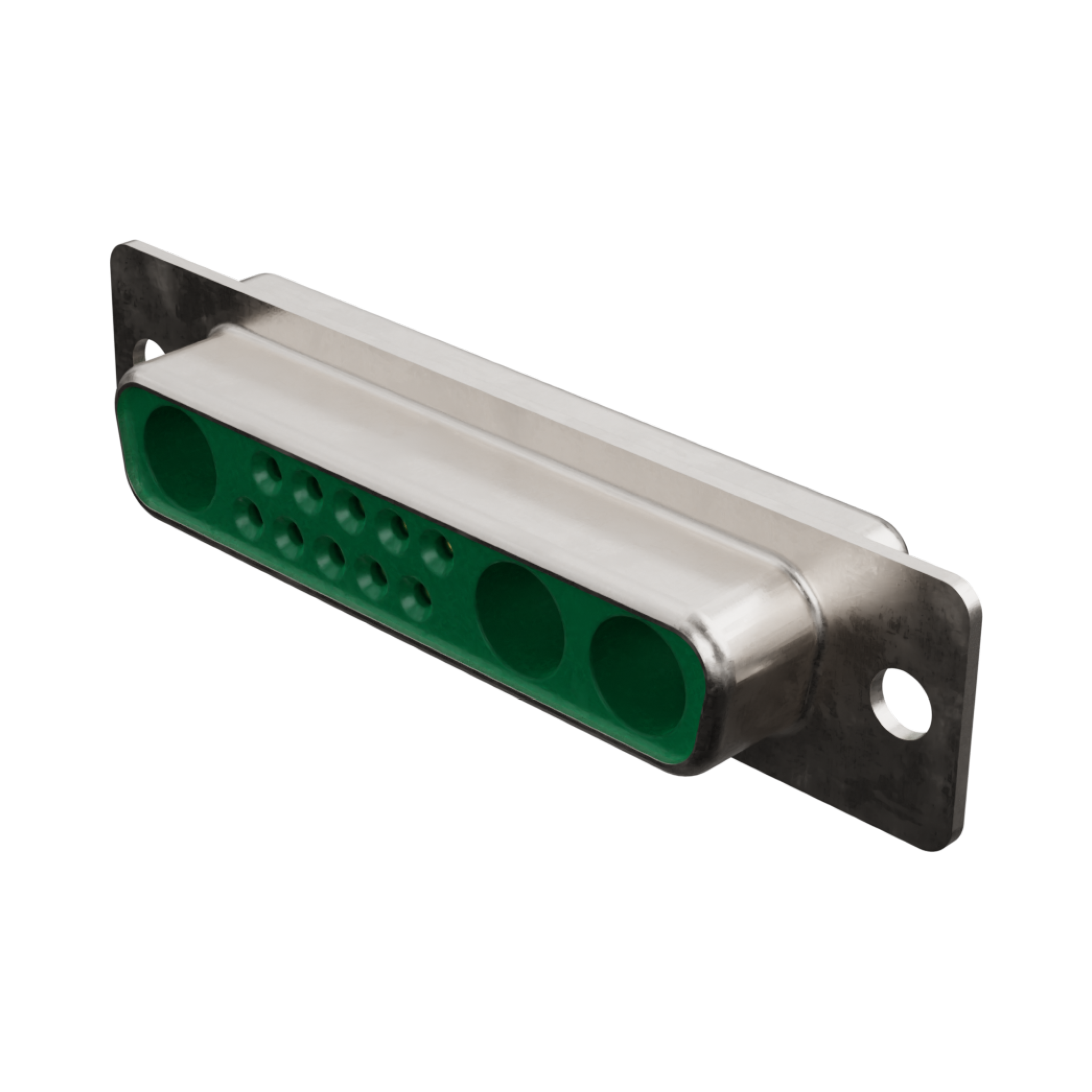

FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold over Nickel Phosphorus Plating, Tin-plated Shell, 13 Circuits Max, 10 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0014,
FM13W3SA-K121 |
Where to Buy
Prices starting from US$5.29
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$8.27
|
60
in stock
|
Buy Now |
|
element14
from US$6.56
|
60
in stock
|
Buy Now |
|
Farnell
from US$8.17
|
60
in stock
|
Buy Now |
|
Sager
from US$5.40
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.29
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 13 |
| Color Resin | Green |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 10.100/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Combo D-Sub Conn, Rcpt, Db-13W3, Solder | Newark Electronics |
| COMBO D-SUB CONN, RCPT, DB-13W3, SOLDER | element14 |
| D-Sub Mixed Contact Connectors FCT ML DSUB SDR RCPT 13W3 | Sager |
| FM13W3SA-K121 FCT ML DSUB SDR RCPT 13W3 | Heilind Americas |
172704-0014 Connectors by FCT ELECTRONIC gmbh
COMBO D-SUB CONN RCPT DB-13W3 SOLDER
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| Product Range | 172704 Series |
|---|---|
| Insert Arrangement | DB-13W3 |
| No. of Signal Contacts | 10Contacts |
| Gender | Receptacle |
| No. of Power Positions | 3 |
| Contact Termination Type | Solder |
| D Sub Shell Size | DB |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Solder |
| No. of Contacts | 13Contacts |
