1727040035 FCT Products by Molex

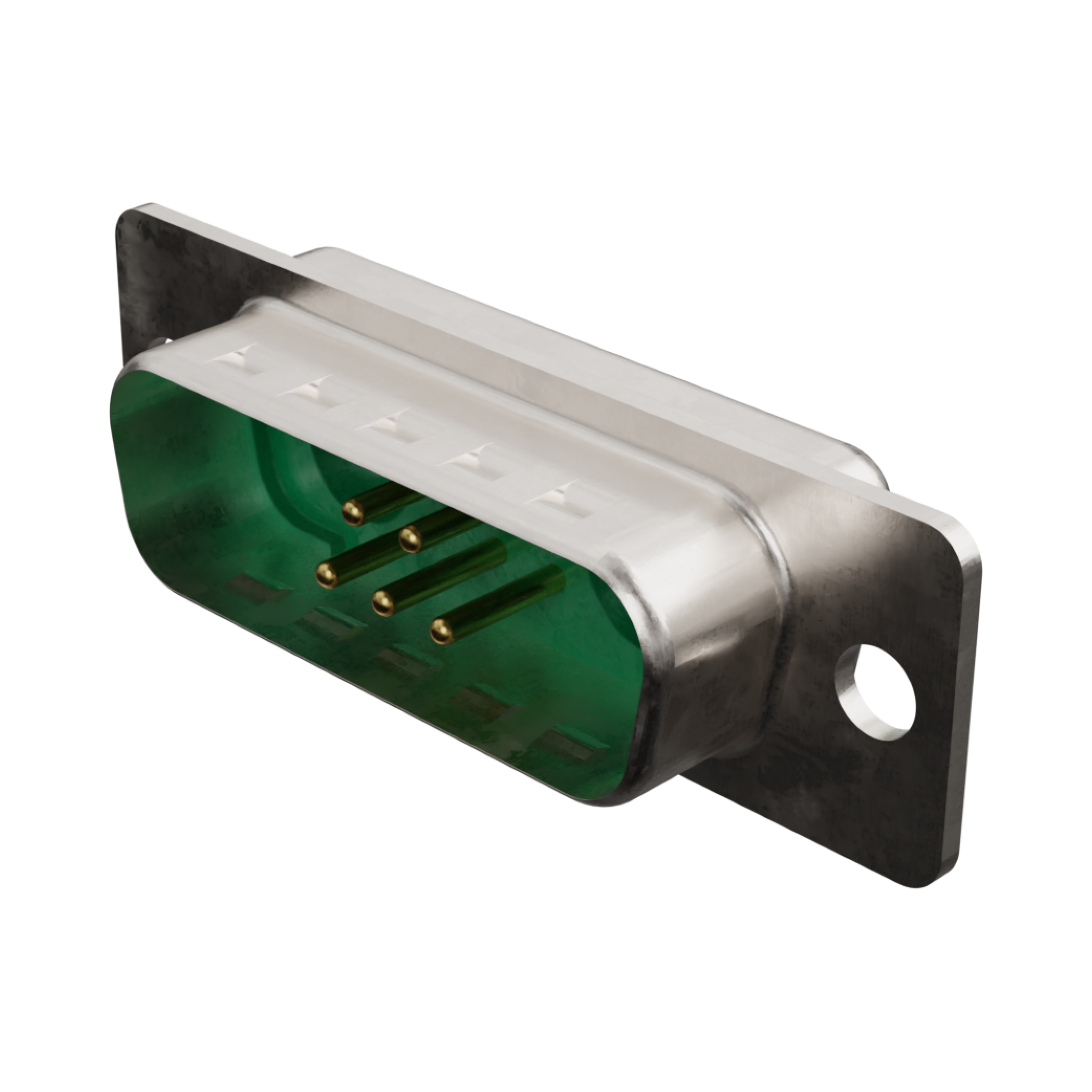

FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold over Nickel Phosphorus Plating, Tin-plated Shell with Dimples, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0035,
FM7W2PA-K120 |
Where to Buy
Prices starting from US$3.20
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$5.61
|
728
in stock
|
Buy Now |
|
element14
from US$3.81
|
122
in stock
|
Buy Now |
|
RS
from US$6.86
|
106
in stock
|
Buy Now |
|
Offical Electronic
-
|
272
in stock
|
Buy Now |
|
Newark Electronics
from US$5.30
|
0
in stock
|
Buy Now |
|
TME
from US$4.05
|
0
in stock
|
Buy Now |
|
Compona
from US$3.25
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$3.68
|
0
in stock
|
Buy Now |
|
Sager
from US$3.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.27
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 7 |
| Color Resin | Green |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 6.100/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 7.40mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Solder |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| COMB D SUB, PLUG, DA-7W2, SOLDER CUP | Farnell |
| COMBO D-SUB CONN, PLUG, DA-7W2, SOLDER | element14 |
| FCT from Molex FM7W2PA-K120 / 1727040035 | RS |
| Combo D-Sub Conn, Plug, Da-7W2, Solder | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX 1727040035 Plug D-Sub 7/2p Solder Mixed Layout | Compona |
| FCT ML DSUB SDR PLG 7W2 | TTI Europe |
| D-Sub Mixed Contact Connectors FCT ML DSUB SDR PLG 7W2 | Sager |
| FM7W2PA-K120 FCT ML DSUB SDR PLG 7W2 | Heilind Americas |
172704-0035 Connectors by FCT ELECTRONIC gmbh
COMBO D-SUB CONN PLUG DA-7W2 SOLDER
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Product Range | - |
|---|---|
| Insert Arrangement | DA-7W2 |
| No. of Signal Contacts | 5Contacts |
| Gender | Plug |
| No. of Power Positions | 2 |
| Contact Termination Type | Solder |
| D Sub Shell Size | DA |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Solder |
| No. of Contacts | 7Contacts |
