1727040047 FCT Products by Molex

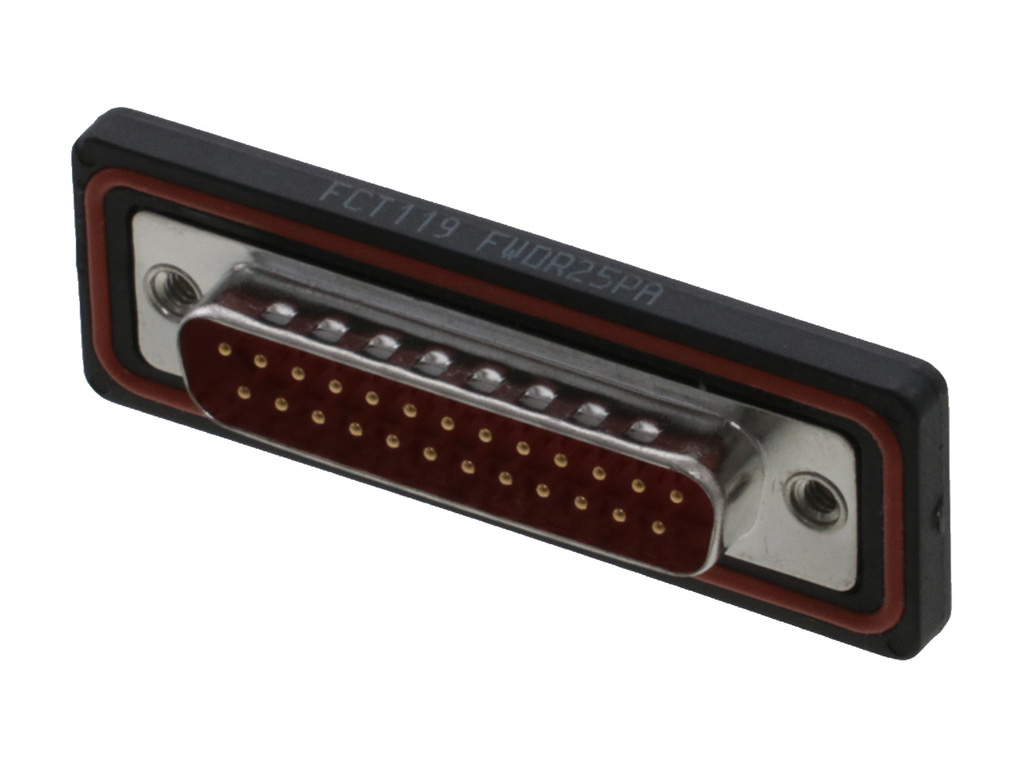

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, Solder Cup, Gold over Nickel Phosphorus Plating, Plastic Watertight Frame, 25 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0047,
FWDR25PA |
Where to Buy
Prices starting from US$22.18
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$24.25
|
45
in stock
|
Buy Now |
|
Newark Electronics
from US$26.92
|
41
in stock
|
Buy Now |
|
Conrad
from US$29.57
|
37
in stock
|
Buy Now |
|
Farnell
from US$35.56
|
34
in stock
|
Buy Now |
|
Rutronik
from US$27.41
|
0
in stock
|
Buy Now |
|
Sager
from US$22.67
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$23.24
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$22.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 16.400/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex FWDR25PA / 1727040047 | RS |
| Fct Standard-Density Waterproof D-Sub Connector M Rohs Compliant: Yes |Molex 172704-0047 | Newark Electronics |
| Molex 1727040047 D-SUB Steckverbinder Polzahl: 25 Lötkelch 1 St. Box | Conrad |
| D SUB CONN, PLUG, DB, SOLDER CUP | Farnell |
| 25P D-Sub Male | Rutronik |
| D-Sub Standard Connectors FCT FWD DSUB SDR PLG 25 RMNT | Sager |
| FWDR25PA FCT DSUB SDR PLG 25 PN SLD R | Heilind Americas |
172704-0047 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 25POS SOLDER
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 25Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | Solder |
| D Sub Shell Size | DB |
| Product Range | 172704 Series |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Solder |
