1727040049 FCT Products by Molex

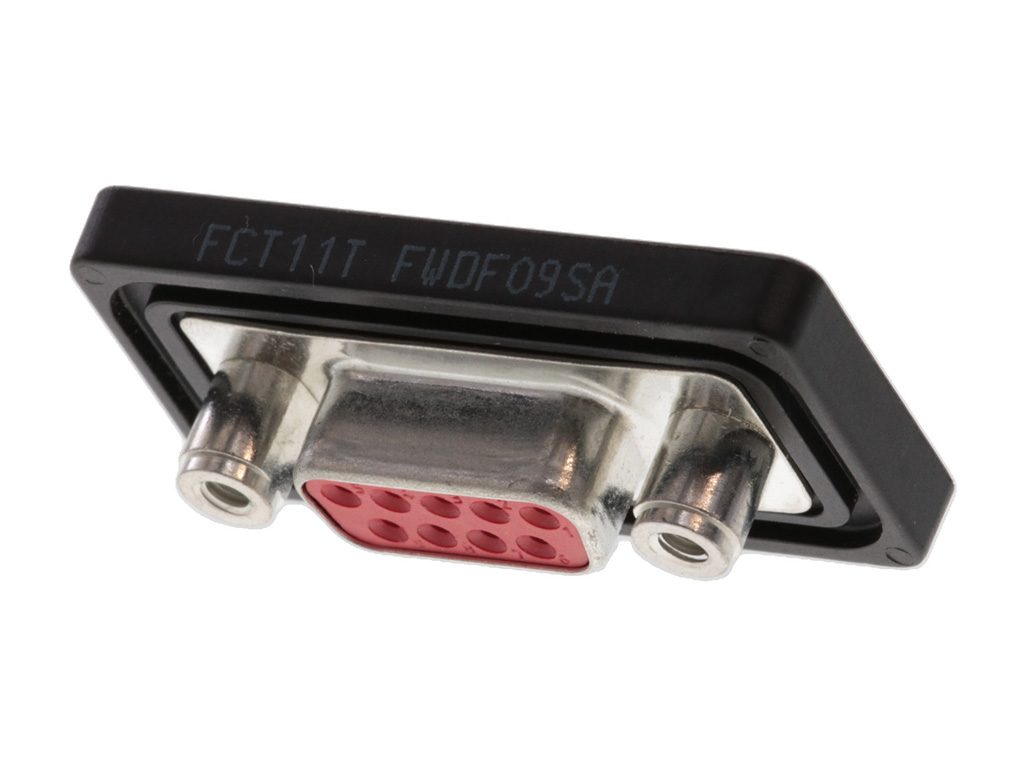

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold over Nickel Phosphorus Plating, Front Panel Mount, Plastic Watertight Frame, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0049,
FWDF09SA |
Where to Buy
Prices starting from US$11.99
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$15.19
|
10
in stock
|
Buy Now |
|
Newark Electronics
from US$18.96
|
0
in stock
|
Buy Now |
|
Compona
from US$12.64
|
0
in stock
|
Buy Now |
|
element14
from US$15.91
|
0
in stock
|
Buy Now |
|
Conrad
from US$23.21
|
0
in stock
|
Buy Now |
|
Sager
from US$12.41
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$12.72
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.99
|
0
in stock
|
Buy Now |
|
Farnell
from US$18.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 11.300/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT DSUB SEALED FMNT 9 POS RCP | TTI Europe |
| D Sub Conn, Rcpt, 9Pos, Solder | Newark Electronics |
| MOLEX 1727040049 Socket D-Sub 9p Solder | Compona |
| D SUB CONN, RCPT, 9POS, SOLDER | element14 |
| Molex 1727040049 D-SUB Steckverbinder 1 St. | Conrad |
| D-Sub Standard Connectors FCT FWD DSUB SDR RCPT 09 PN FMNT | Sager |
| FWDF09SA FCT DSUB SDR RCPT 09 PN SLD RMNT | Heilind Americas |
172704-0049 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 9POS SOLDER
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Solder |
| D Sub Shell Size | DE |
| Product Range | 172704 Series |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Solder |
