1727040060 FCT Products by Molex

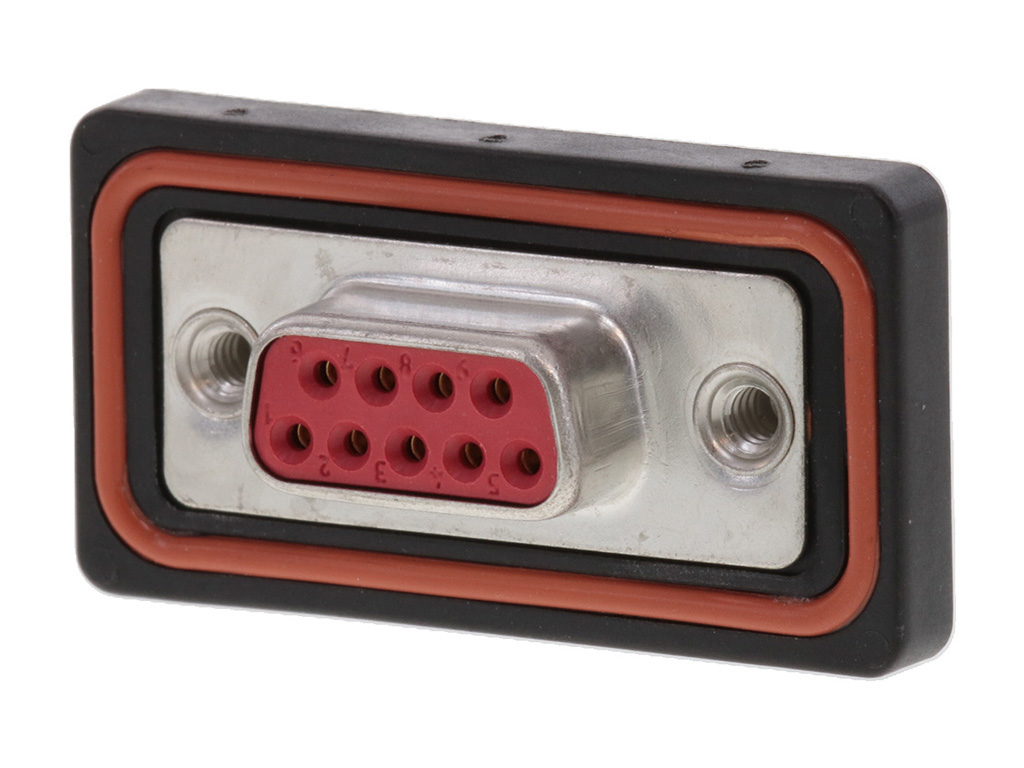

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, PCB Through Hole, 11.20mm Tail Length, Gold over Nickel Phosphorus Plating, Plastic Watertight Frame, Snap-in Bolt, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0060,
FWDR09S1A |
Where to Buy
Prices starting from US$13.88
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$17.32
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$21.46
|
0
in stock
|
Buy Now |
|
element14
from US$18.18
|
0
in stock
|
Buy Now |
|
Conrad
from US$22.85
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$21.68
|
0
in stock
|
Buy Now |
|
Sager
from US$15.06
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$15.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$13.88
|
0
in stock
|
Buy Now |
|
Farnell
from US$23.06
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 10.500/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.20mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub waterproof 9 way socket straight | RS |
| D Sub Conn, Rcpt, 9Pos, Th | Newark Electronics |
| D SUB CONN, RCPT, 9POS, TH | element14 |
| Molex 1727040060 D-SUB Steckverbinder Polzahl: 9 Lötpins 1 St. Box | Conrad |
| FCT FWD DSUB STR PC RCPT 09 | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB STR PC RCPT 09 RMNT | Sager |
| FWDR09S1A FCT DSUB STR PC RCPT 09 PN S | Heilind Americas |
172704-0060 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 9POS TH
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Through Hole |
| D Sub Shell Size | DE |
| Product Range | 172704 Series |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Through Hole Vertical |
