1727040062 FCT Products by Molex

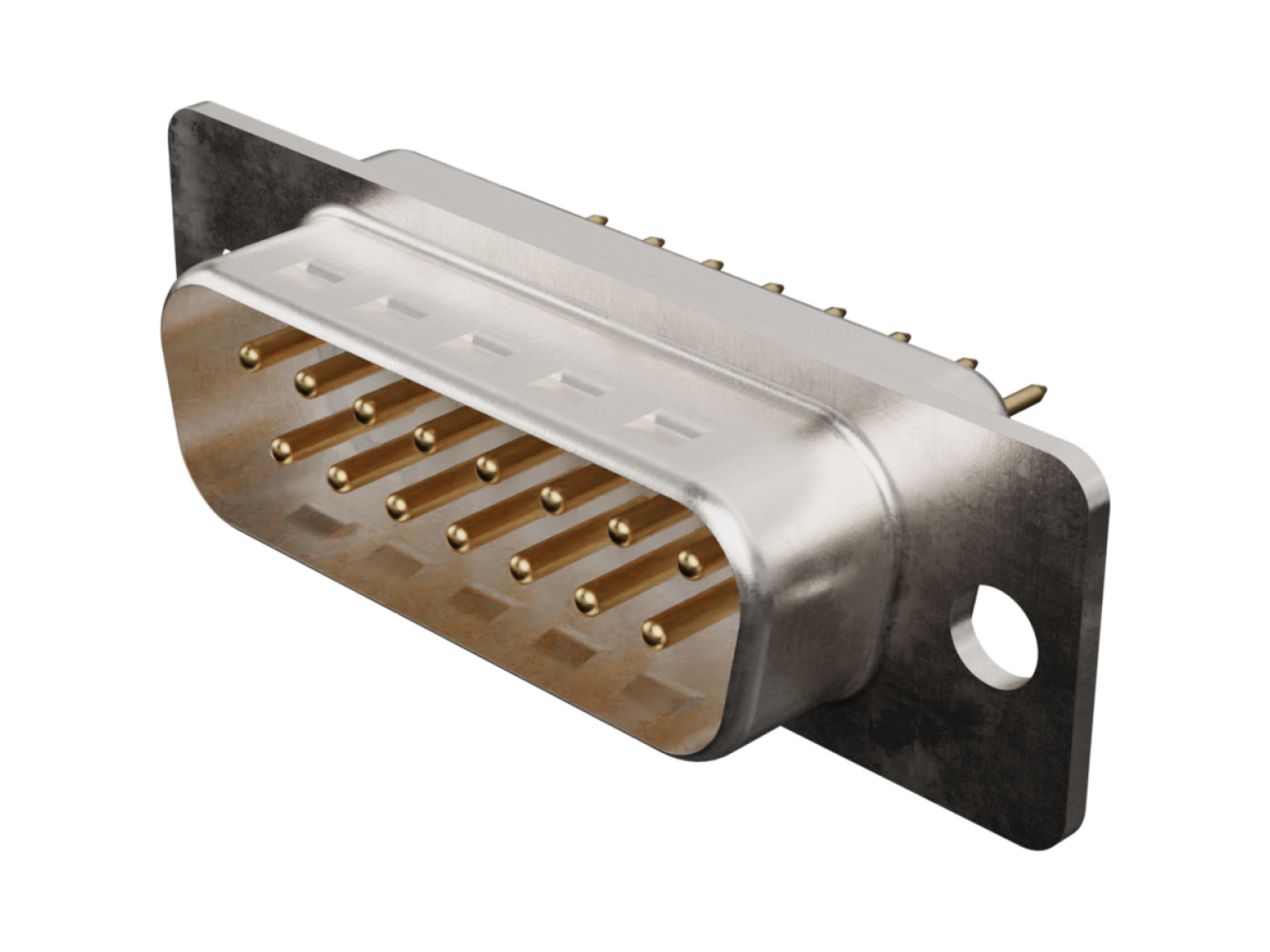

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 500 Mating Cycles, 15 Circuits, White Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0062,
F15P1G1 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$3.58
|
155
in stock
|
Buy Now |
|
Farnell
from US$4.52
|
155
in stock
|
Buy Now |
|
Newark Electronics
from US$0.83
|
56
in stock
|
Buy Now |
|
Compona
from US$2.73
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$3.50
|
0
in stock
|
Buy Now |
|
Sager
from US$2.85
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.92
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.91
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | White |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 7.100/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.30mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D SUB CONN, PLUG, 15POS, TH | element14 |
| D Sub Conn, Plug, 15Pos, Th | Newark Electronics |
| MOLEX F15P1G1 D-Sub Connector male 15p | Compona |
| FCT DSUB STR PC PLG 15 PN | TTI Europe |
| D-Sub Standard Connectors FCT DSUB STR PC PLG 15 PN | Sager |
| F15P1G1 FCT DSUB STR PC PLG 15 PN | Heilind Americas |
172704-0062 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 15POS TH
| Status: | Unknown |
|---|---|
| Series: | HPD 173109 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 15Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | Through Hole |
| D Sub Shell Size | DA |
| Product Range | HPD 173109 Series |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | - |
| Contact Termination | Through Hole Vertical |
