1727040065 FCT Products by Molex

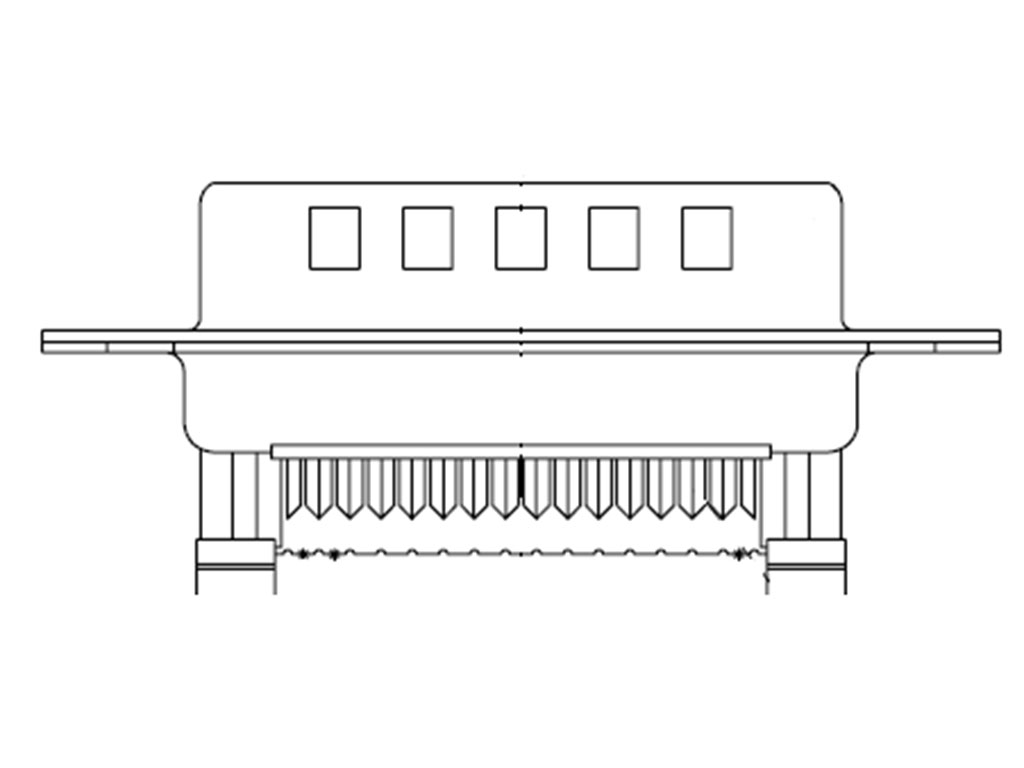

FCT Standard-Density D-Sub Connector, Male, Straight, IDC Ribbon, 0.20µm Gold Plating, 25 Circuits, Black Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0065,
F25P15-K49 |
Where to Buy
Prices starting from US$6.53
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$7.88
|
4,760
in stock
|
Buy Now |
|
Heilind Europe
from US$6.53
|
4,303
in stock
|
Buy Now |
|
Rapid Electronics
from US$18.07
|
135
in stock
|
Buy Now |
|
Conrad
from US$8.57
|
135
in stock
|
Buy Now |
|
Newark Electronics
from US$11.60
|
65
in stock
|
Buy Now |
|
element14
from US$9.54
|
65
in stock
|
Buy Now |
|
Farnell
from US$11.02
|
65
in stock
|
Buy Now |
|
|
Heilind Americas
from US$8.52
|
42
in stock
|
Buy Now |
|
Offical Electronic
-
|
192
in stock
|
Buy Now |
|
RS
from US$18.66
|
0
in stock
|
Buy Now |
|
TME
from US$9.15
|
0
in stock
|
Buy Now |
|
Compona
from US$6.55
|
0
in stock
|
Buy Now |
|
Sager
from US$7.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 16.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 2.000µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | IDC Ribbon |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 28 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT DSUB STANDARD 25 POS PLUG | TTI Europe |
| F25P15-K49 FCT DSUB IDC PLG 25 PN | Heilind Europe |
| Molex 1727040065 FCT D-sub Plug 25-pin Male Idc 0.20µm Gold Plating | Rapid Electronics |
| Molex 1727040065 D-SUB Stecker Polzahl: 25 Schneid-Klemm 1 St. | Conrad |
| D Sub Conn, Plug, 25Pos, Idc/Idt | Newark Electronics |
| D SUB CONN, PLUG, 25POS, IDC / IDT | element14 |
| FCT from Molex F25P15-K49 / 1727040065 | RS |
| Connector: D-Sub | TME |
| MOLEX F25P15-K49 D-Sub Connector male 25p | Compona |
| D-Sub Standard Connectors FCT DSUB IDC PLG 25 PN | Sager |
172704-0065 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 25POS IDC / IDT
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 25Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | IDC / IDT |
| D Sub Shell Size | DB |
| Product Range | - |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | IDC / IDT |
