1727040070 FCT Products by Molex

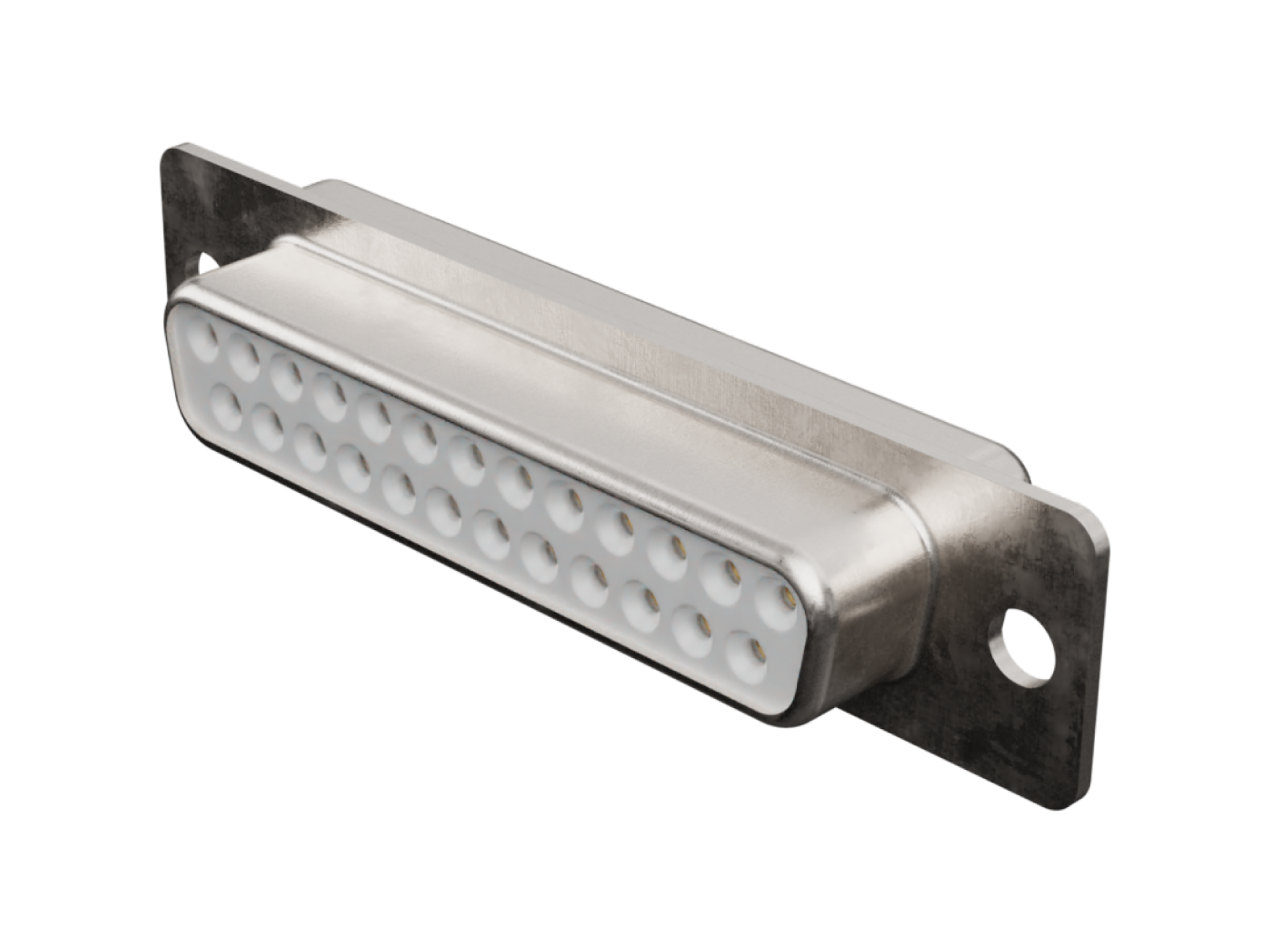

FCT Standard-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 500 Mating Cycles, 25 Circuits, White Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0070,
F25S0G1 |
Where to Buy
Prices starting from US$4.87
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$5.78
|
460
in stock
|
Buy Now |
|
RS
from US$5.98
|
332
in stock
|
Buy Now |
|
Newark Electronics
from US$8.26
|
271
in stock
|
Buy Now |
|
element14
from US$6.22
|
271
in stock
|
Buy Now |
|
Farnell
from US$7.65
|
259
in stock
|
Buy Now |
|
Heilind Europe
from US$5.32
|
151
in stock
|
Buy Now |
|
TME
from US$6.37
|
14
in stock
|
Buy Now |
|
Offical Electronic
-
|
800
in stock
|
Buy Now |
|
Compona
from US$4.87
|
0
in stock
|
Buy Now |
|
Conrad
from US$11.33
|
0
in stock
|
Buy Now |
|
Sager
from US$5.39
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$5.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$5.85
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | White |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 12.200/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT DSUB STANDARD 25 POS RCPT | TTI Europe |
| FCT from Molex F25S0G1 / 1727040070 | RS |
| D Sub Conn, Rcpt, 25Pos, Solder | Newark Electronics |
| D SUB CONN, RCPT, 25POS, SOLDER | element14 |
| F25S0G1 FCT DSUB SDR RCPT 25 PN | Heilind Europe |
| Connector: D-Sub | TME |
| MOLEX F25S0G1 D-Sub Connector female 25p | Compona |
| Molex 1727040070 D-SUB Stecker Polzahl: 25 Löten 1 St. Carton | Conrad |
| D-Sub Standard Connectors FCT DSUB SDR RCPT 25 PN | Sager |
| FCT DSUB SDR RCPT 25 PN | TTI Asia |
| Conn D-Subminiature SKT 25 POS Solder Pot ST Panel Mount 25 Terminal 1 Port | Avnet Asia |
172704-0070 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 25POS SOLDER
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 25Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Solder |
| D Sub Shell Size | DB |
| Product Range | 172704 Series |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | - |
| Contact Termination | Solder |
