1727040073 FCT Products by Molex

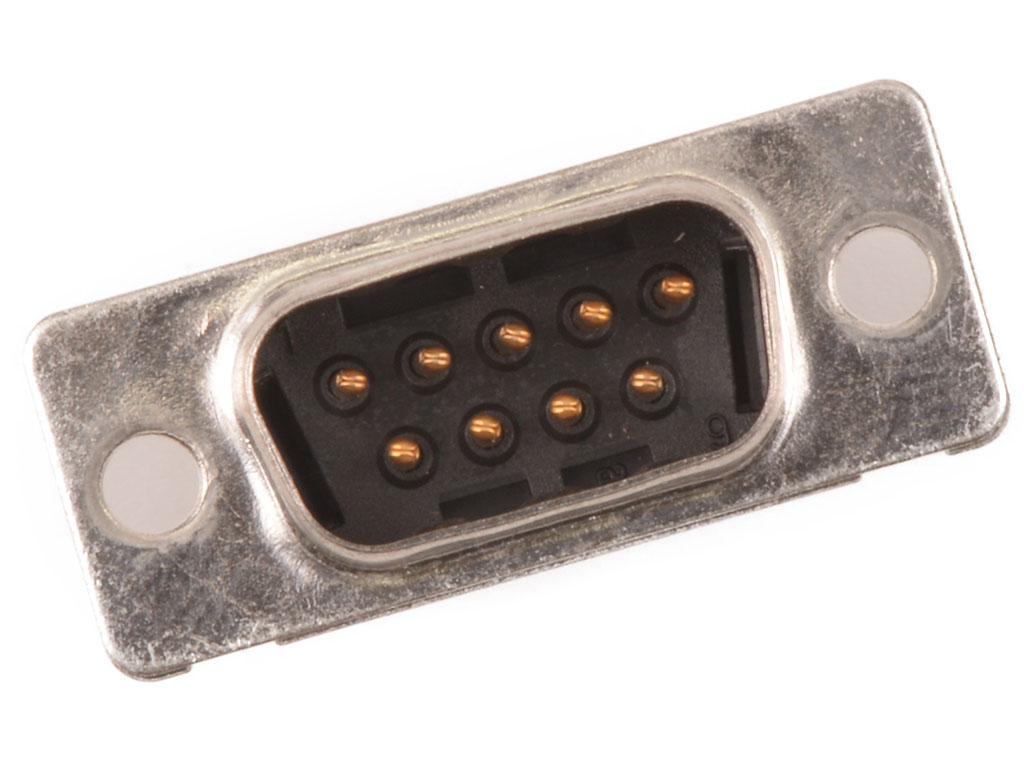

FCT Standard-Density D-Sub Connector, Male, Straight, IDC Ribbon, 0.20µm Gold Plating, 9 Circuits, Black Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0073,
F09P15-K49 |
Where to Buy
Prices starting from US$4.00
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$4.09
|
980
in stock
|
Buy Now |
|
TTI Europe
from US$4.83
|
910
in stock
|
Buy Now |
|
Conrad
from US$7.10
|
492
in stock
|
Buy Now |
|
Farnell
from US$7.64
|
443
in stock
|
Buy Now |
|
RS
from US$13.52
|
192
in stock
|
Buy Now |
|
Newark Electronics
from US$7.11
|
101
in stock
|
Buy Now |
|
element14
from US$5.22
|
101
in stock
|
Buy Now |
|
|
Heilind Americas
from US$6.16
|
9
in stock
|
Buy Now |
|
Offical Electronic
-
|
580
in stock
|
Buy Now |
|
Rutronik
from US$5.35
|
0
in stock
|
Buy Now |
|
TME
from US$5.04
|
0
in stock
|
Buy Now |
|
Compona
from US$4.00
|
0
in stock
|
Buy Now |
|
Sager
from US$4.42
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 8.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 2.000µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | IDC Ribbon |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 28 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| F09P15-K49 FCT DSUB IDC PLG 09 PN | Heilind Europe |
| FCT DSUB STANDARD 9 POS PLUG I | TTI Europe |
| Molex 1727040073 D-SUB Stecker Polzahl: 9 Schneid-Klemm 1 St. Tray | Conrad |
| D SUB CONN, PLUG, DE, IDC / IDT | Farnell |
| FCT from Molex F09P15-K49 / 1727040073 | RS |
| D Sub Conn, Plug, 9Pos, Idc/Idt | Newark Electronics |
| D SUB CONN, PLUG, 9POS, IDC / IDT | element14 |
| 09P D-Sub Male IDC-Style | Rutronik |
| Connector: D-Sub | TME |
| MOLEX F09P15-K49 D-Sub Connector male 9p | Compona |
| D-Sub Standard Connectors FCT DSUB IDC PLG 09 PN | Sager |
172704-0073 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 9POS IDC / IDT
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | IDC / IDT |
| D Sub Shell Size | DE |
| Product Range | - |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | IDC / IDT |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727040073?
Additional datasheets, footprints and schematics for 1727040073 are listed on our Part Details page. You can also find images and similar parts to 1727040073 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727040073 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727040073 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727040073 fall under?
The 1727040073 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1727040073 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727040073 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727040073 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727040073 have stock available?
Authorised distributors including Heilind Europe, TTI Europe, Conrad, Farnell and RS have stock available or on a lead time for 1727040073.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727040073 often in real-time on the comparison pages.
What if I can't find stock of 1727040073?
You can fill out our help required form which you can use to request a quote for 1727040073 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
