1727040074 FCT Products by Molex

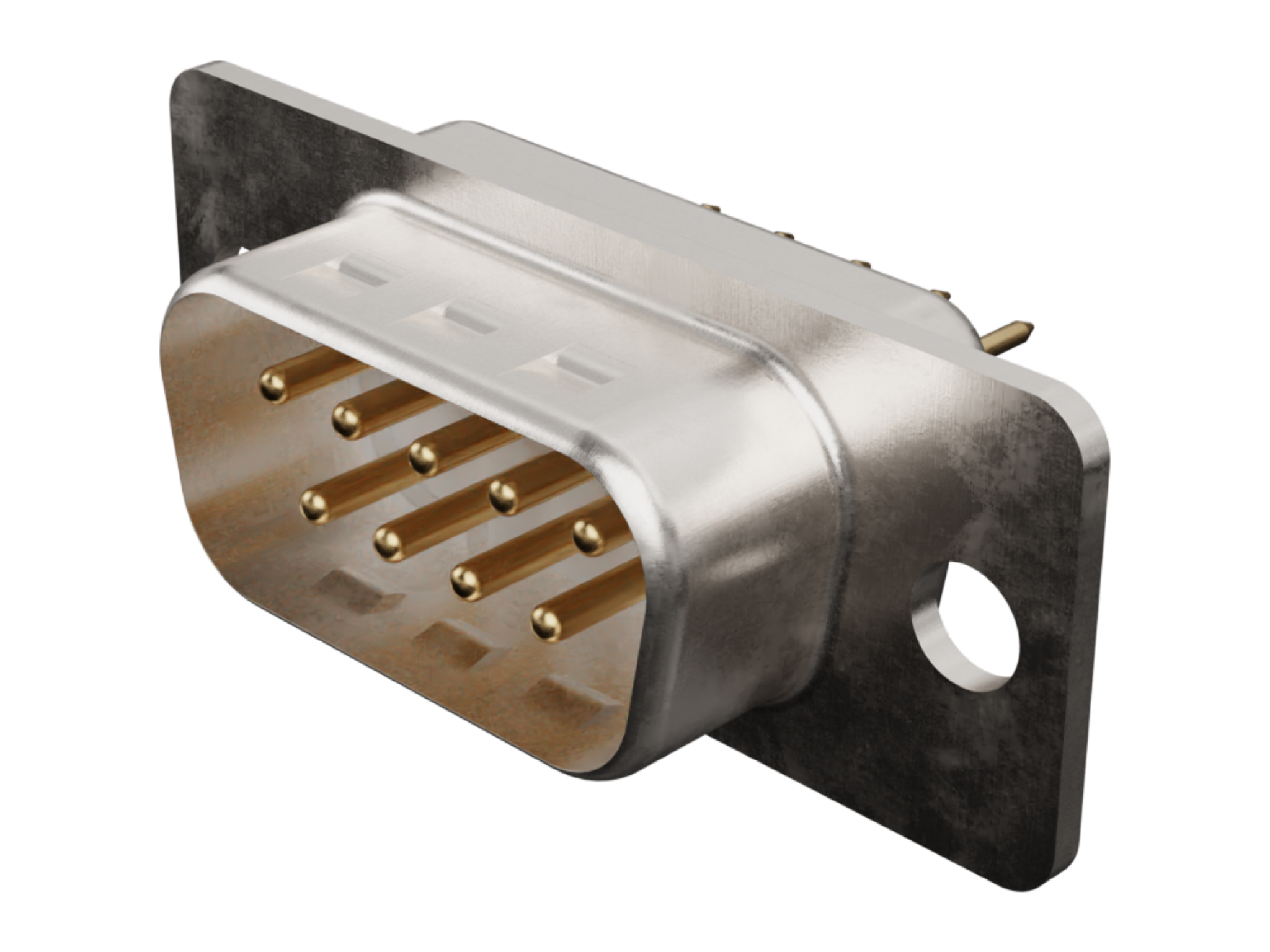

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 500 Mating Cycles, 9 Circuits, White Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0074,
F09P1G1 |
Where to Buy
Prices starting from US$2.09
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$2.12
|
278
in stock
|
Buy Now |
|
Newark Electronics
from US$2.62
|
54
in stock
|
Buy Now |
|
Farnell
from US$3.59
|
49
in stock
|
Buy Now |
|
TME
from US$2.74
|
40
in stock
|
Buy Now |
|
Offical Electronic
-
|
18
in stock
|
Buy Now |
|
RS
from US$3.93
|
0
in stock
|
Buy Now |
|
Compona
from US$2.09
|
0
in stock
|
Buy Now |
|
element14
from US$2.68
|
0
in stock
|
Buy Now |
|
Conrad
from US$4.43
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.10
|
0
in stock
|
Buy Now |
|
Sager
from US$2.10
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$2.15
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | White |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 5.100/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.30mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| F09P1G1 FCT DSUB STR PC PLG 09 PN | Heilind Europe |
| D-Sub Standard Connectors 9P Dsub Solder Pcb |Molex 172704-0074 | Newark Electronics |
| D SUB CONN, PLUG, DE, SOLDER | Farnell |
| Connector: D-Sub | TME |
| FCT from Molex F09P1G1 / 1727040074 | RS |
| MOLEX F09P1G1 D-Sub Connector male 9p | Compona |
| D SUB CONN, PLUG, 9POS, TH | element14 |
| Molex 1727040074 D-SUB Steckverbinder Polzahl: 9 Lötpins 1 St. Box | Conrad |
| FCT DSUB STANDARD 9 POS PLUG P | TTI Europe |
| D-Sub Standard Connectors FCT DSUB STR PC PLG 09 PN | Sager |
172704-0074 Connectors by FCT ELECTRONIC gmbh
D SUB CONN PLUG 9POS TH
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 9Contacts |
|---|---|
| Gender | Plug |
| Contact Termination Type | Through Hole |
| D Sub Shell Size | DE |
| Product Range | - |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | - |
| Contact Termination | Through Hole Vertical |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727040074?
Additional datasheets, footprints and schematics for 1727040074 are listed on our Part Details page. You can also find images and similar parts to 1727040074 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727040074 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727040074 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727040074 fall under?
The 1727040074 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1727040074 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727040074 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727040074 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727040074 have stock available?
Authorised distributors including Heilind Europe, Newark Electronics, Farnell, TME and Offical Electronic have stock available or on a lead time for 1727040074.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727040074 often in real-time on the comparison pages.
What if I can't find stock of 1727040074?
You can fill out our help required form which you can use to request a quote for 1727040074 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
