1727040080 FCT Products by Molex

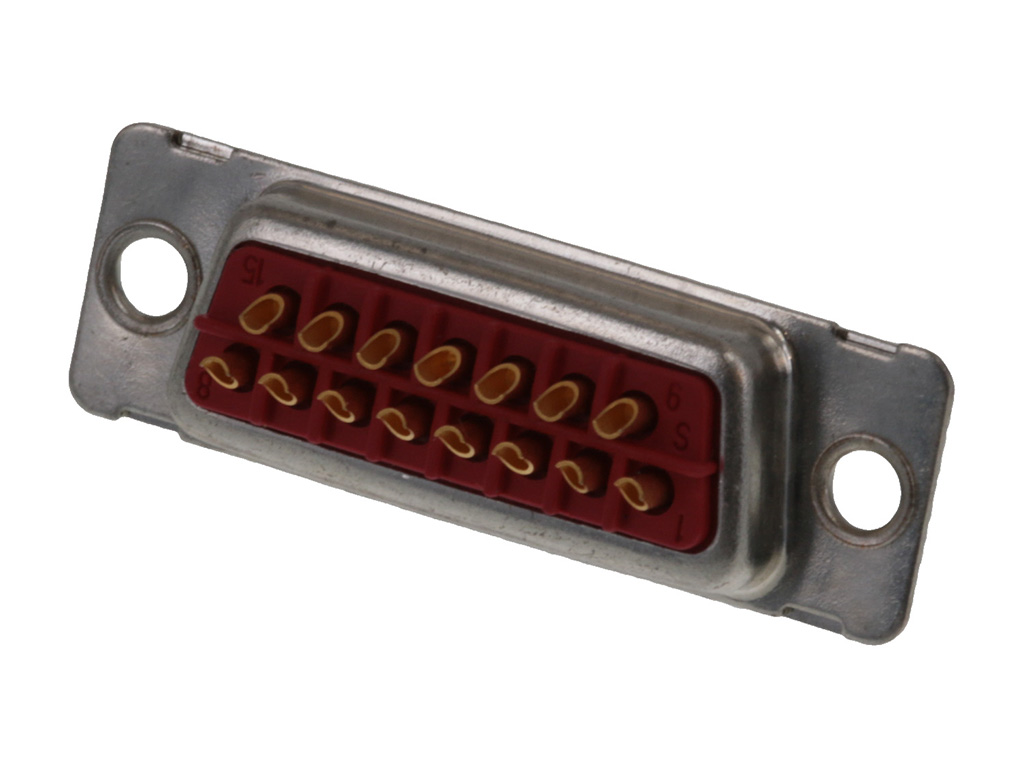

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold over Nickel Phosphorus Plating, 500 Mating Cycles, 15 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0080,
F15SA-K700 |
Where to Buy
Prices starting from US$11.16
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$15.13
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$17.48
|
0
in stock
|
Buy Now |
|
element14
from US$14.27
|
0
in stock
|
Buy Now |
|
Conrad
from US$19.96
|
0
in stock
|
Buy Now |
|
Sager
from US$12.63
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$12.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.16
|
0
in stock
|
Buy Now |
|
Farnell
from US$17.33
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 8.600/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel Phosphorus |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 15P D-Sub Fem. IP67 (Au) | Rutronik |
| D Sub Conn, Rcpt, 15Pos, Solder | Newark Electronics |
| D SUB CONN, RCPT, 15POS, SOLDER | element14 |
| Molex 1727040080 D-SUB Buchse 1 St. Box | Conrad |
| D-Sub Standard Connectors FCT WD DSUB SDR RCPT 15 PN | Sager |
| F15SA-K700 FCT DSUB SDR RCPT 15 PN SLD | Heilind Americas |
172704-0080 Connectors by FCT ELECTRONIC gmbh
D SUB CONN RCPT 15POS SOLDER
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| No. of Contacts | 15Contacts |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Solder |
| D Sub Shell Size | DA |
| Product Range | - |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Contact Termination | Solder |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727040080?
Additional datasheets, footprints and schematics for 1727040080 are listed on our Part Details page. You can also find images and similar parts to 1727040080 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727040080 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727040080 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727040080 fall under?
The 1727040080 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1727040080 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727040080 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727040080 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727040080 have stock available?
Authorised distributors including Rutronik, Newark Electronics, element14, Conrad and Sager have stock available or on a lead time for 1727040080.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727040080 often in real-time on the comparison pages.
What if I can't find stock of 1727040080?
You can fill out our help required form which you can use to request a quote for 1727040080 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
