1727040096 FCT Products by Molex

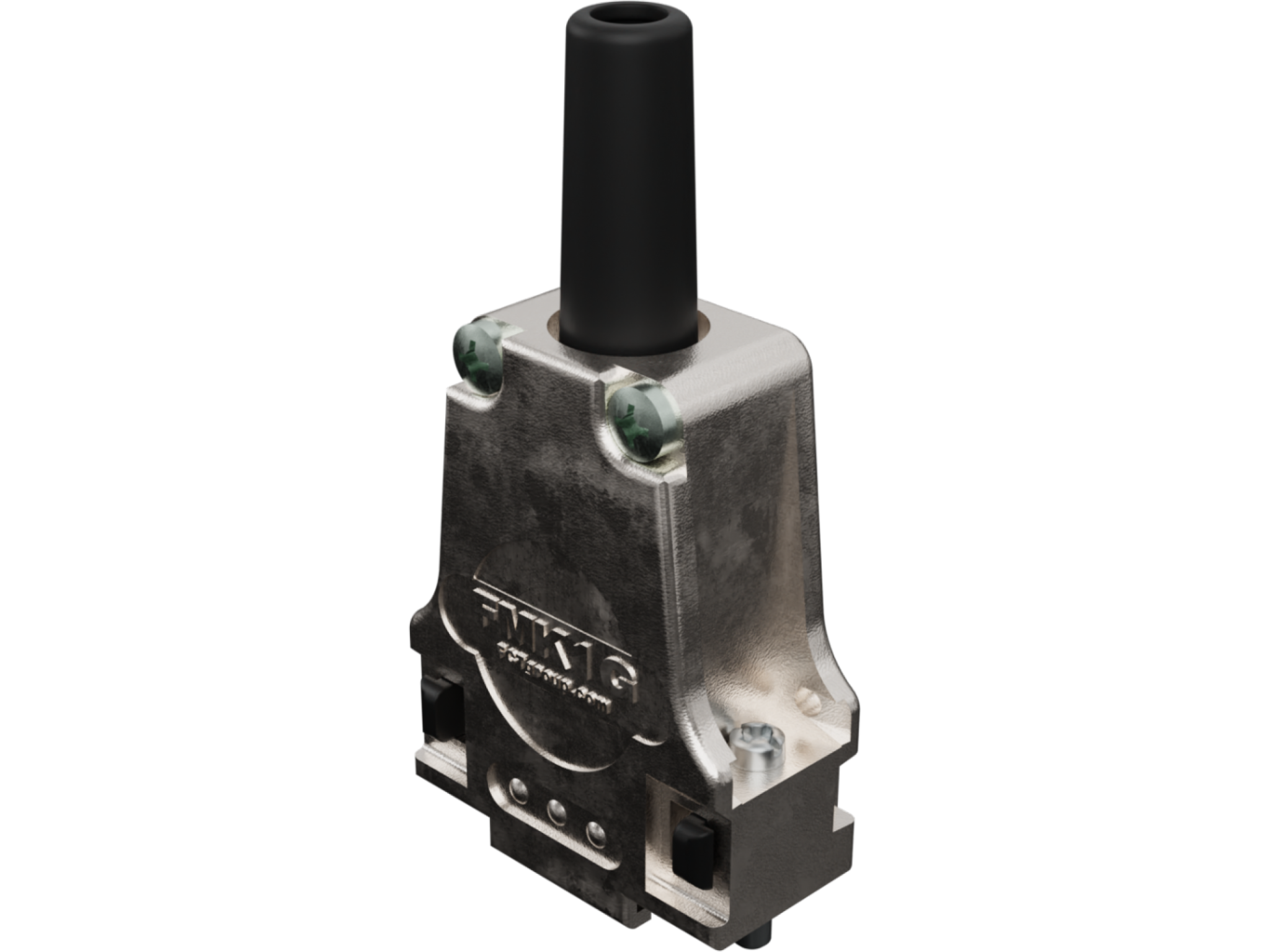

FCT Metal Backshell for D-Sub Connector, Shell Size 1, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0096,
FMK1G |
Where to Buy
Prices starting from US$3.49
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$10.37
|
6,104
in stock
|
Buy Now |
|
TME
from US$3.89
|
317
in stock
|
Buy Now |
|
Newark Electronics
from US$6.23
|
211
in stock
|
Buy Now |
|
Offical Electronic
-
|
1
in stock
|
Buy Now |
|
Rapid Electronics
from US$6.80
|
0
in stock
|
Buy Now |
|
Compona
from US$3.65
|
0
in stock
|
Buy Now |
|
element14
from US$5.27
|
0
in stock
|
Buy Now |
|
Conrad
from US$8.73
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$4.58
|
0
in stock
|
Buy Now |
|
Sager
from US$3.85
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.57
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.88
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
| Shield Type | Solid Metal |
Physical |
|
|---|---|
| Cable Diameter | 3.00-9.50mm |
| Material Backshell | Zinc Die-cast |
| Material Bushing | TPE |
| Material Screw | Steel |
| Mounting Style | Locking Screw |
| Net Weight | 44.000/g |
| Orientation | Straight |
| Plating Back Shell | Nickel |
| Temperature Range Operating | -35° to +100°C |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | No |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex 172704-0096 | RS |
| Enclosure for connectors: D-Sub | TME |
| D-Sub Backshell, De, 180°, Zinc Body | Newark Electronics |
| Molex 1727040096 D-sub Housing Metal Backshell Shell Size 1 Straight | Rapid Electronics |
| MOLEX FMK1G Hood D-Sub metal size 1 (9p) 180° cable outlet 3-9.5mm | Compona |
| D-SUB BACKSHELL, DE, 180°, ZINC BODY | element14 |
| Molex 1727040096 D-SUB Gehäuse 1 St. Carton | Conrad |
| FCT HOOD METAL SIZE 1 STRT | TTI Europe |
| D-Sub Backshells FCT HOOD S1 0 DEG MTL W/SCRWLCK | Sager |
| FMK1G FCT HOOD S1 0 DEG MTL W/SCRWLCK | Heilind Americas |
| HOOD, METAL, SIZE 1, STRT | TTI Asia |
| FCT BACKSHELL METAL SIZE 1 W SCREWLOCK | Rutronik |
172704-0096 Connectors by FCT ELECTRONIC gmbh
D-SUB BACKSHELL DE 180° ZINC BODY
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| Product Range | 172704 Series |
|---|---|
| D Sub Shell Size | DE |
| Cable Exit Angle | 180° |
| Connector Body Material | Zinc Body |
