1727040103 FCT Products by Molex

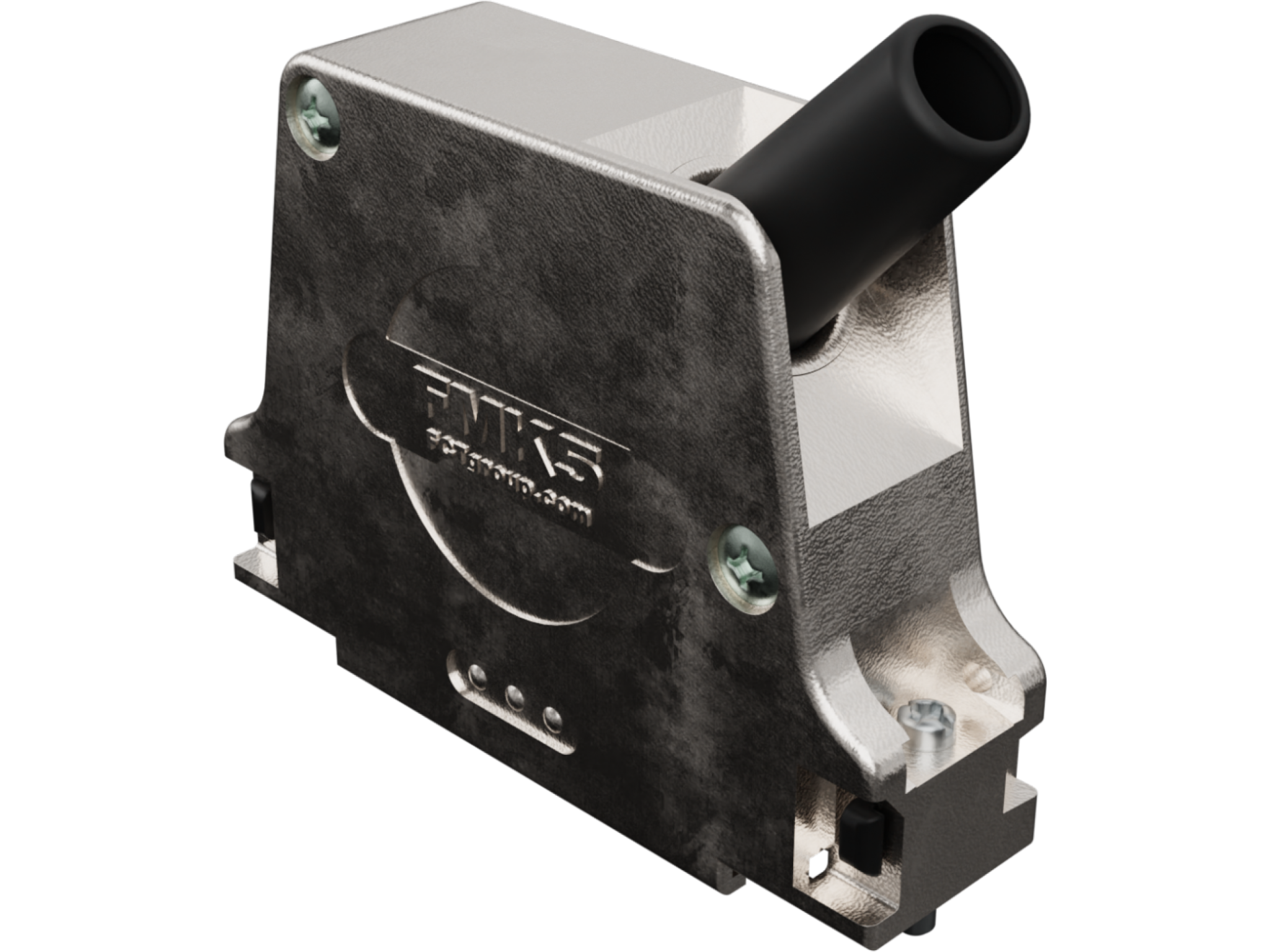

FCT Metal Backshell for D-Sub Connector, Shell Size 5, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0103,
FMK5 |
Where to Buy
Prices starting from US$7.12
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$10.45
|
211
in stock
|
Buy Now |
|
Heilind Europe
from US$7.50
|
122
in stock
|
Buy Now |
|
element14
from US$9.38
|
38
in stock
|
Buy Now |
|
Farnell
from US$11.27
|
38
in stock
|
Buy Now |
|
TTI Europe
from US$7.12
|
20
in stock
|
Buy Now |
|
TME
from US$9.49
|
13
in stock
|
Buy Now |
|
Offical Electronic
-
|
1
in stock
|
Buy Now |
|
Newark Electronics
from US$8.51
|
0
in stock
|
Buy Now |
|
Compona
from US$7.54
|
0
in stock
|
Buy Now |
|
Conrad
from US$15.52
|
0
in stock
|
Buy Now |
|
Sager
from US$7.52
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$7.71
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$7.36
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
| Shield Type | Solid Metal |
Physical |
|
|---|---|
| Cable Diameter | 3.00-12.00mm |
| Material Backshell | Zinc Die-cast |
| Material Bushing | TPE |
| Material Screw | Steel |
| Mounting Style | Locking Screw |
| Net Weight | 97.300/g |
| Orientation | 45° Angle |
| Plating Back Shell | Nickel |
| Temperature Range Operating | -35° to +100°C |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | No |
| Shell Size | 5 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex FMK5 / 1727040103 | RS |
| FMK5 FCT HOOD S5 45 DEG MTL W/ SCRWLCK | Heilind Europe |
| D-SUB BACKSHELL, DD, 45°, ZINC BODY | element14 |
| FCT HOOD METAL SIZE 5 | TTI Europe |
| Enclosure for connectors: D-Sub | TME |
| Fct Hood S5 45 Deg Mtl W/Scrwlck |Molex 172704-0103 | Newark Electronics |
| MOLEX FMK5 Hood D-Sub metal size 5 (50p) 45° cable outlet 3-12mm | Compona |
| Molex 1727040103 D-SUB Gehäuse 1 St. Carton | Conrad |
| D-Sub Backshells FCT HOOD S5 45 DEG MTL W/SCRWLCK | Sager |
| HOOD, METAL, SIZE 5 | TTI Asia |
172704-0103 Connectors by FCT ELECTRONIC gmbh
D-SUB BACKSHELL DD 45° ZINC BODY
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| Product Range | 172704 Series |
|---|---|
| D Sub Shell Size | DD |
| Cable Exit Angle | 45° |
| Connector Body Material | Zinc Body |
