1727040196 FCT Products by Molex

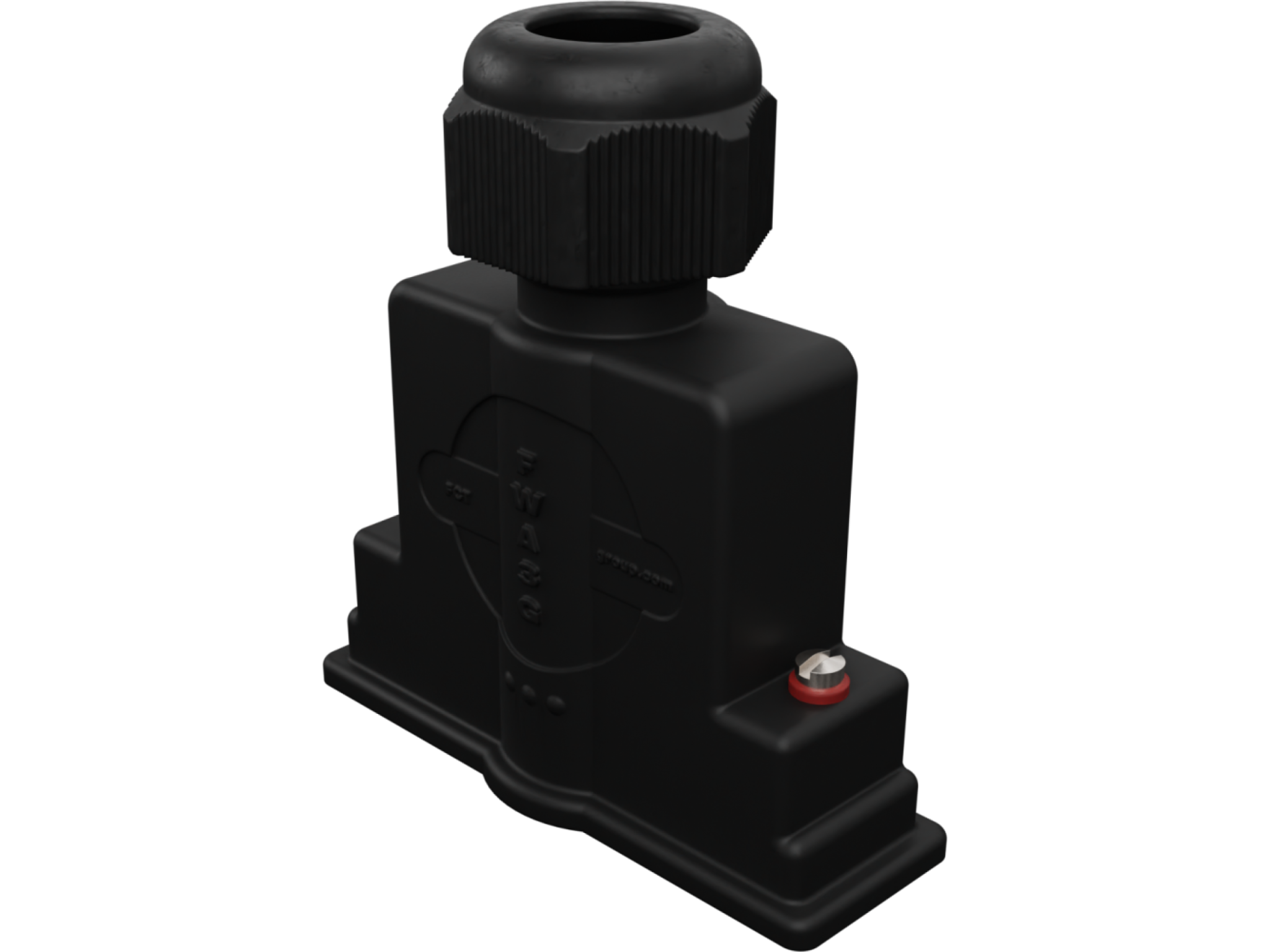

FCT Plastic Backshell for D-Sub Connector, Black, Shell Size 3, Straight Cable Outlet, IP67 Waterproof, with #4-40 Locking Screws, Individual Packing
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
172704-0196,
FWA3GE |
Where to Buy
Prices starting from US$10.79
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$29.19
|
75
in stock
|
Buy Now |
|
Newark Electronics
from US$17.60
|
0
in stock
|
Buy Now |
|
Compona
from US$10.79
|
0
in stock
|
Buy Now |
|
element14
from US$14.87
|
0
in stock
|
Buy Now |
|
Conrad
from US$66.38
|
0
in stock
|
Buy Now |
|
Sager
from US$11.81
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$11.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.08
|
0
in stock
|
Buy Now |
|
Farnell
from US$16.32
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | No |
| Shield Type | None |
Physical |
|
|---|---|
| Cable Diameter | 8.00-10.50mm |
| Color Resin | Black |
| Material Backshell | PC+ABS |
| Material Screw | Brass |
| Material Seal | Elastomer |
| Mounting Style | Locking Screw |
| Net Weight | 29.300/g |
| Orientation | Straight |
| Plating Back Shell | None |
| Temperature Range Operating | -35° to +120°C |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub Waterproof hood shell size 3 | RS |
| D-Sub Backshell, Db, 180°, Pet | Newark Electronics |
| MOLEX FWA3GE Plastic hood IP67, 25p | Compona |
| D-SUB BACKSHELL, DB, 180°, PET | element14 |
| Molex 1727040196 D-SUB Gehäuse Kunststoff 180 ° Schwarz 1 St. | Conrad |
| D-Sub Backshells FCT WD HOOD S3 0 DEG PLSTC W/SCRWLCK | Sager |
| FWA3GE FCT HOOD S3 0 DEG PLSTC W/SCRWLCK | Heilind Americas |
172704-0196 Connectors by FCT ELECTRONIC gmbh
D-SUB BACKSHELL DB 180° PET
| Status: | Unknown |
|---|---|
| Series: | 172704 Series |
| RoHS: | Unknown |
Specifications
| Product Range | 172704 Series |
|---|---|
| D Sub Shell Size | DB |
| Cable Exit Angle | 180° |
| Connector Body Material | PET (Polyester) Body |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727040196?
Additional datasheets, footprints and schematics for 1727040196 are listed on our Part Details page. You can also find images and similar parts to 1727040196 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727040196 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727040196 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727040196 fall under?
The 1727040196 is listed under D-Sub Backshells.
Can I view similar or alternative parts?
You can view similar parts to 1727040196 when available in the D-Sub Backshells range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727040196 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727040196 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727040196 have stock available?
Authorised distributors including RS, Newark Electronics, Compona, element14 and Conrad have stock available or on a lead time for 1727040196.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727040196 often in real-time on the comparison pages.
What if I can't find stock of 1727040196?
You can fill out our help required form which you can use to request a quote for 1727040196 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
