1727080120 Mini-Fit TPA2 by Molex

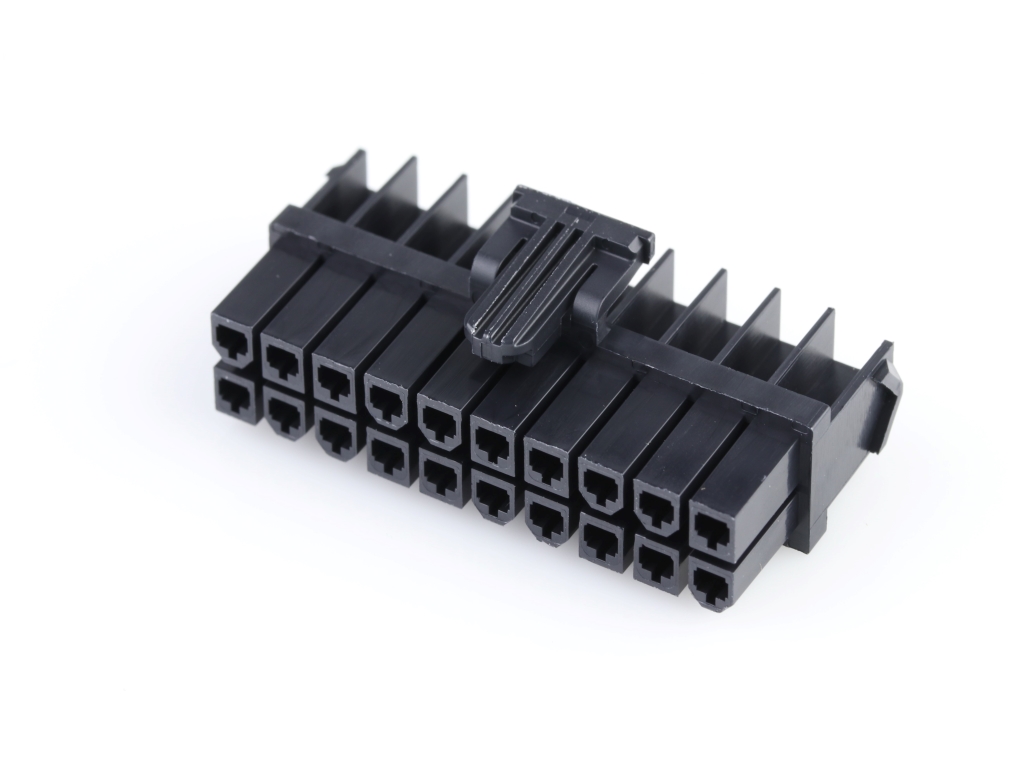

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 20 Circuit
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172708-0120 |
Where to Buy
Prices starting from US$0.23
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.97
|
2,877
in stock
|
Buy Now |
|
Farnell
from US$1.09
|
2,590
in stock
|
Buy Now |
|
Newark Electronics
from US$0.23
|
400
in stock
|
Buy Now |
|
element14
from US$1.08
|
69
in stock
|
Buy Now |
|
RS
from US$1.63
|
0
in stock
|
Buy Now |
|
Sager
from US$0.85
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.87
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.83
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit TPA2 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 20 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.843/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| CONNECTOR HOUSING, RCPT, 20POS, 4.2MM | Farnell |
| Receptacle Housing, 20Pos, Nylon, Black | Newark Electronics |
| RECEPTACLE HOUSING, 20POS, NYLON, BLACK | element14 |
| Molex 172708-0120 Connector Housing | RS |
| Headers & Wire Housings MINI-FIT REC TPA2 02X10P 94V-2 | Sager |
| MINIFIT TPA 2.0 DR RECEPT -2 20CKT | Heilind Americas |
