1727081006 Mini-Fit Sigma by Molex

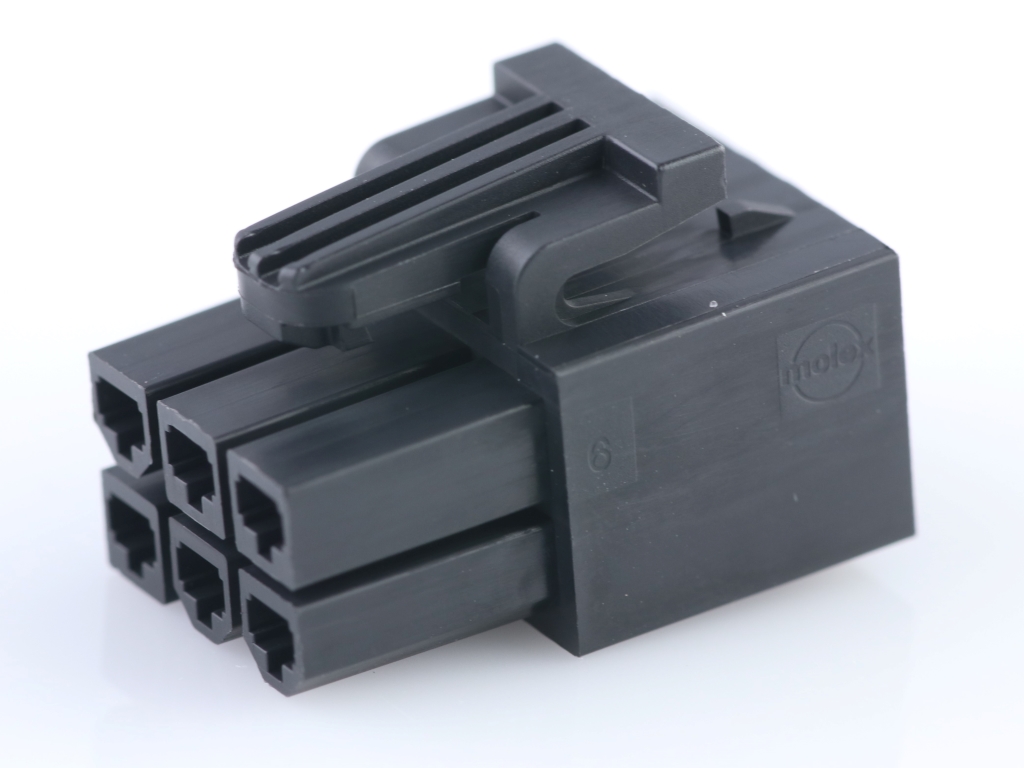

Mini-Fit Sigma Receptacle Housing, 4.20mm Pitch, Dual Row, Glow-Wire Capable, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172708-1006 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.55
|
7,084
in stock
|
Buy Now |
|
element14
from US$0.54
|
7,084
in stock
|
Buy Now |
|
Farnell
from US$0.59
|
7,084
in stock
|
Buy Now |
|
TME
from US$0.47
|
7,050
in stock
|
Buy Now |
|
RS
from US$0.56
|
0
in stock
|
Buy Now |
|
Sager
from US$0.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sigma |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 6 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.647/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn Housing, Rcpt, 6Pos, 4.2Mm Rohs Compliant: Yes |Molex 172708-1006 | Newark Electronics |
| CONN HOUSING, RCPT, 6POS, 4.2MM | element14 |
| Connector: wire-wire | TME |
| Molex 1727081006 PCB Connector Housing | RS |
| Headers & Wire Housings MINI-FIT SIGMA REC 02X03P | Sager |
| MINI-FIT SIGMA DR REC HSG 2X3C | Heilind Americas |
| MINI-FIT SIGMA REC 02X03P | TTI Asia |
| Conn Housing Wire to Board RCP 6 POS 4.2mm ST Cable Mount Bag | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727081006?
Additional datasheets, footprints and schematics for 1727081006 are listed on our Part Details page. You can also find images and similar parts to 1727081006 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727081006 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727081006 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727081006 fall under?
The 1727081006 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 1727081006 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727081006 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727081006 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727081006 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, TME and RS have stock available or on a lead time for 1727081006.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727081006 often in real-time on the comparison pages.
What if I can't find stock of 1727081006?
You can fill out our help required form which you can use to request a quote for 1727081006 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
