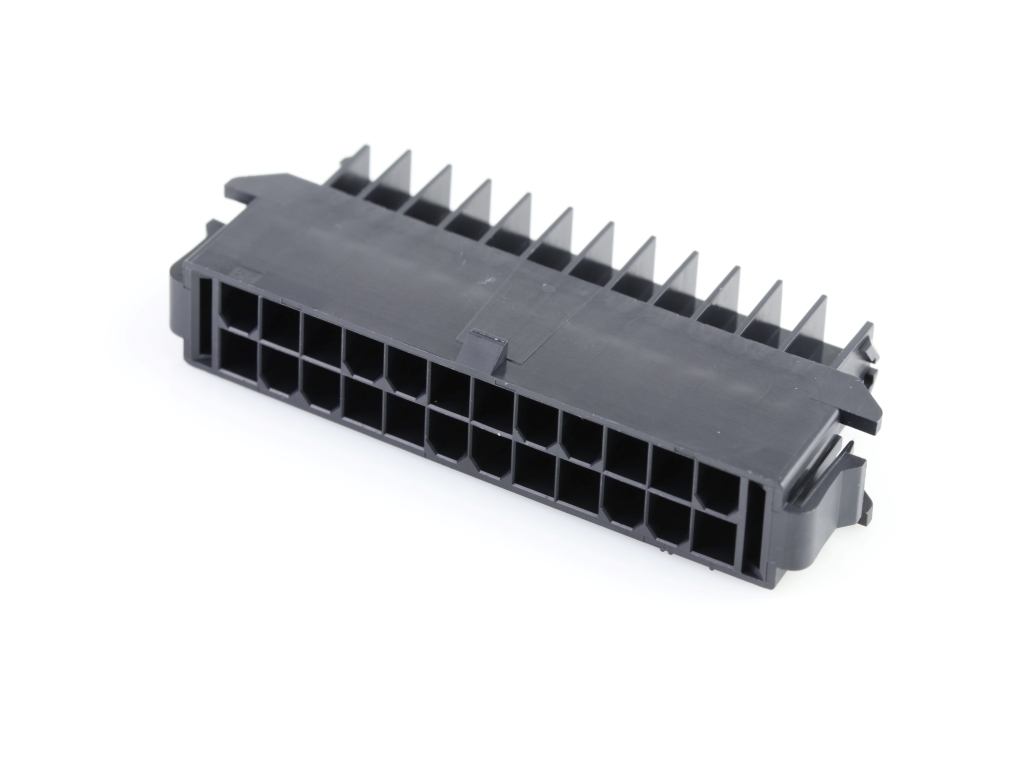

1727670024 Mini-Fit TPA2 by Molex
Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 24 Circuits, Panel Mount
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172767-0024 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.31
|
1,241
in stock
|
Buy Now |
|
Conrad
from US$2.05
|
1,241
in stock
|
Buy Now |
|
Farnell
from US$1.77
|
1,117
in stock
|
Buy Now |
|
Newark Electronics
from US$0.58
|
248
in stock
|
Buy Now |
|
element14
from US$1.48
|
148
in stock
|
Buy Now |
|
Sager
from US$1.00
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.94
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit TPA2 |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 24 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 7.069/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 24 Rastermaß: 4.20 mm 1727670024 1 St. Bulk | Conrad |
| CONNECTOR HOUSING, PLUG, 24POS, 4.2MM | Farnell |
| Plug Housing, 24Pos, Nylon, Black | Newark Electronics |
| PLUG HOUSING, 24POS, NYLON, BLACK | element14 |
| Power to the Board MINI-FIT PLG TPA2 02X12P 94V-0 | Sager |
| MINIFIT TPA 2.0 DR PLUG HSG V-0 24CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1727670024?
Additional datasheets, footprints and schematics for 1727670024 are listed on our Part Details page. You can also find images and similar parts to 1727670024 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1727670024 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1727670024 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1727670024 fall under?
The 1727670024 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 1727670024 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1727670024 you can contact the distributor directly for product support, shipping queries etc.
Is the 1727670024 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1727670024 have stock available?
Authorised distributors including TME, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 1727670024.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1727670024 often in real-time on the comparison pages.
What if I can't find stock of 1727670024?
You can fill out our help required form which you can use to request a quote for 1727670024 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
