1728010001 NeoPress by Molex

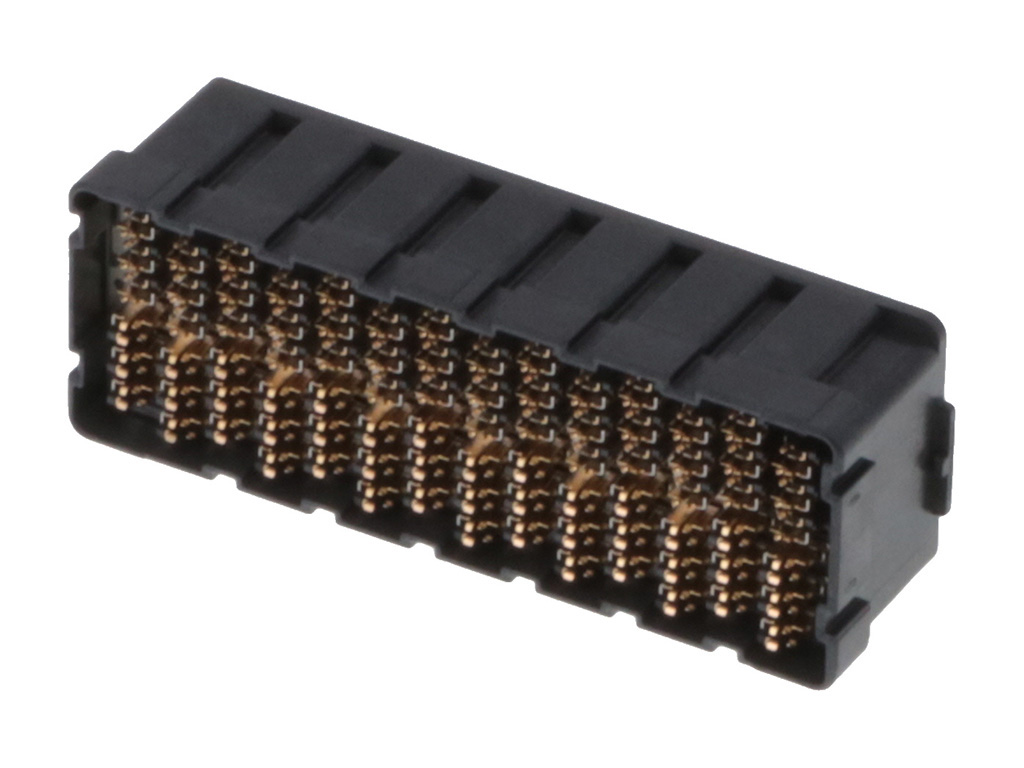

NeoPress High-Speed Mezzanine Plug, 3.50mm Pitch, 6x14, 84 Triads (252 Circuits), 13.50mm Connector Height, 0.76µm Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172801-0001 |
Where to Buy
Prices starting from US$22.33
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$26.39
|
1,394
in stock
|
Buy Now |
|
Conrad
from US$30.19
|
1,394
in stock
|
Buy Now |
|
Farnell
from US$29.87
|
1,255
in stock
|
Buy Now |
|
Newark Electronics
from US$43.05
|
596
in stock
|
Buy Now |
|
element14
from US$24.62
|
596
in stock
|
Buy Now |
|
Heilind Americas
from US$22.33
|
200
in stock
|
Buy Now |
|
RS
from US$41.28
|
0
in stock
|
Buy Now |
|
Sager
from US$29.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$27.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | NeoPress |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 30V AC (RMS) |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 252 |
| Circuits Maximum | 252 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 18.344/g |
| Number Of Rows | 6 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 1.38mm |
| Pitch Mating Interface | 3.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.270µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | None |
| Shrouded | Shrouded |
| Stackable | Yes |
| Temperature Range Operating | -55° to +85°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 252 Rastermaß: 3.50 mm 1728010001 1 St. Tray | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| Mezzanine Conn, Hdr, 252Pos, 6Row, 3.5Mm | Newark Electronics |
| MEZZANINE CONN, HDR, 252POS, 6ROW, 3.5MM | element14 |
| NEOPRESS MEZZ PLUG 252 CIR 6X14,3.5MM,13.5MM HT | Heilind Americas |
| Molex 172801-0001 Backplane Connector | RS |
| Board to Board & Mezzanine Connectors NEOPRESS MEZZ PLG 252C 30AU | Sager |
