1731070057 FCT Products by Molex

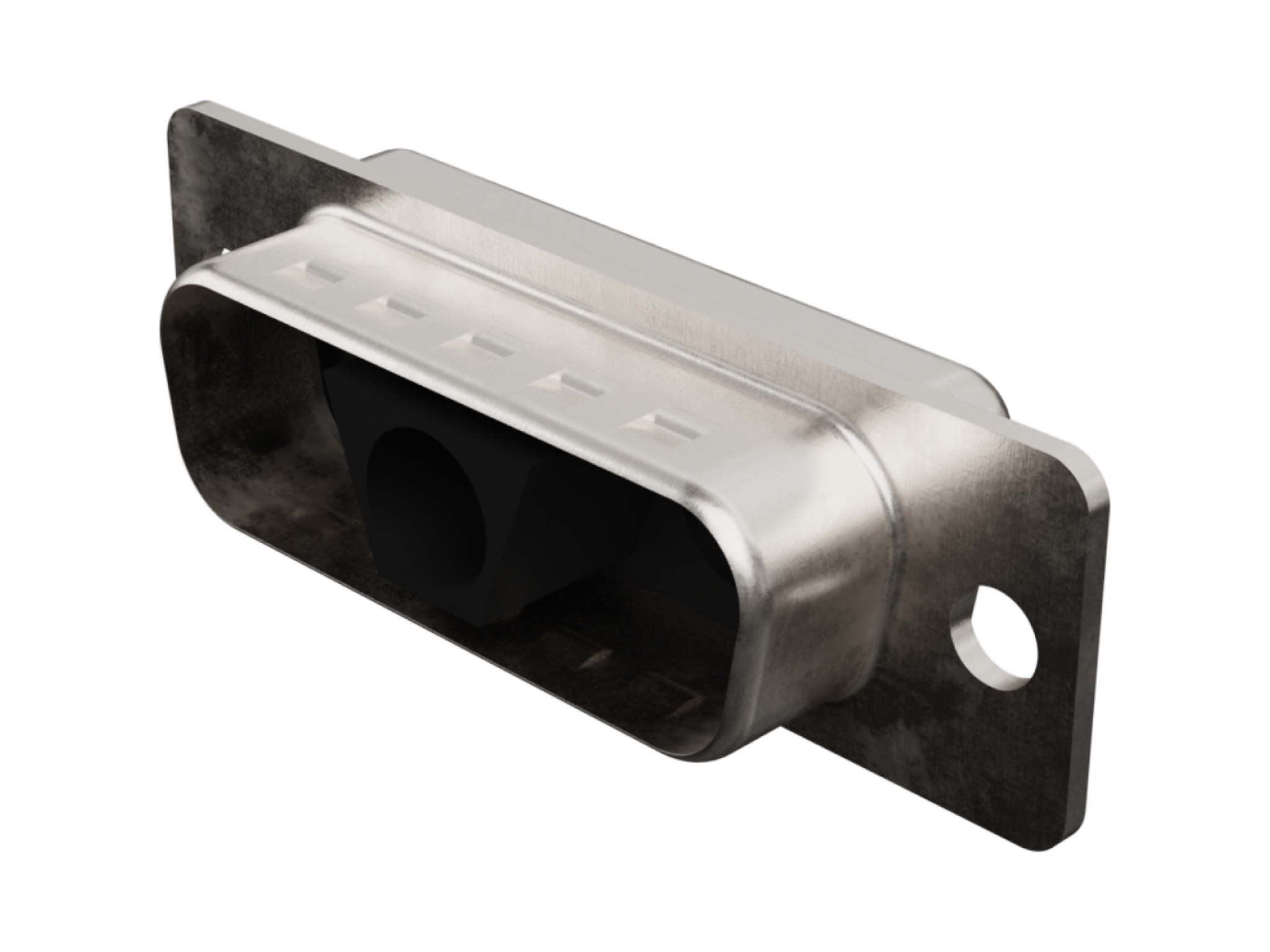

FCT Mixed Layout D-Sub Housing, Male, Tin-plated Shell with Dimples, Polarized, 3 Circuits Unloaded, Black Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0057,
F3W3PC-K120 |
Where to Buy
Prices starting from US$1.57
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$1.75
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$2.24
|
115
in stock
|
Buy Now |
|
element14
from US$1.97
|
115
in stock
|
Buy Now |
|
Farnell
from US$2.46
|
115
in stock
|
Buy Now |
|
RS
from US$2.86
|
60
in stock
|
Buy Now |
|
Rutronik
from US$2.08
|
0
in stock
|
Buy Now |
|
Compona
from US$1.57
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.97
|
0
in stock
|
Buy Now |
|
Sager
from US$1.62
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.65
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Gender | Male |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 5.400/g |
| Number Of Rows | 1 |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| F3W3PC-K120 FCT ML DSUB PLG 3W3C | Heilind Europe |
| D-Sub Housing, Plug, 3Pos, Da-3W3, Steel Rohs Compliant: Yes |Molex 173107-0057 | Newark Electronics |
| D-SUB HOUSING, PLUG, 3POS, DA-3W3, STEEL | element14 |
| FCT from Molex F3W3PC-K120 / 1731070057 | RS |
| 3W3 D-Sub Mixed-Layout Male | Rutronik |
| MOLEX F3W3PC-K120 Connector shell male D-Sub 15p | Compona |
| FCT ML DSUB PLG 3W3C | TTI Europe |
| D-Sub Mixed Contact Connectors FCT ML DSUB PLG 3W3C | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731070057?
Additional datasheets, footprints and schematics for 1731070057 are listed on our Part Details page. You can also find images and similar parts to 1731070057 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731070057 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731070057 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731070057 fall under?
The 1731070057 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731070057 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731070057 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731070057 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731070057 have stock available?
Authorised distributors including Heilind Europe, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 1731070057.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731070057 often in real-time on the comparison pages.
What if I can't find stock of 1731070057?
You can fill out our help required form which you can use to request a quote for 1731070057 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
