1731070062 FCT Products by Molex

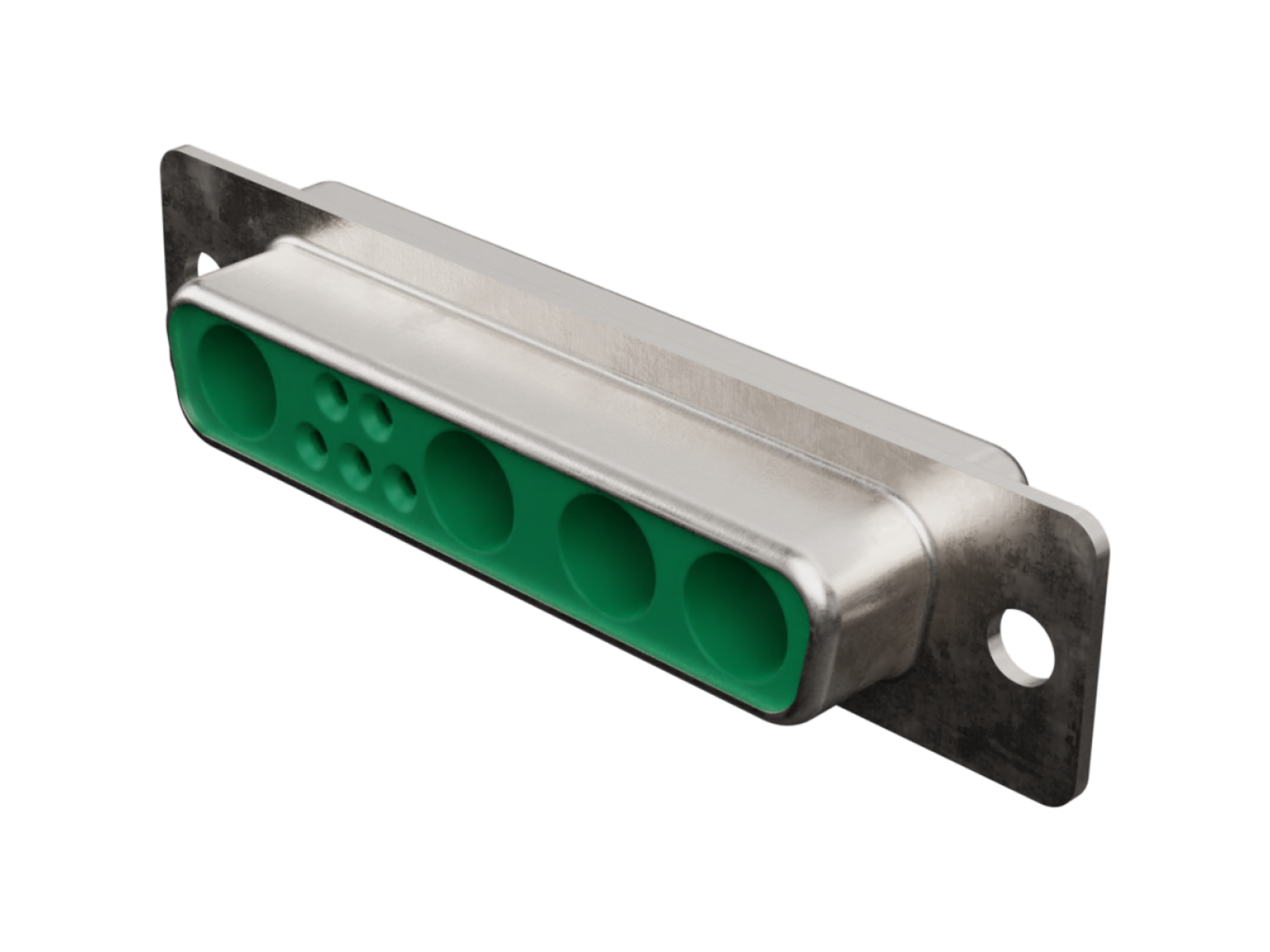

FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-plated Shell, 9 Circuits Max, 5 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0062,
FM9W4S-K121 |
Where to Buy
Prices starting from US$3.25
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$4.09
|
2,000
in stock
|
Buy Now |
|
Heilind Europe
from US$3.55
|
1,680
in stock
|
Buy Now |
|
Farnell
from US$6.28
|
838
in stock
|
Buy Now |
|
RS
from US$7.43
|
689
in stock
|
Buy Now |
|
Newark Electronics
from US$5.69
|
156
in stock
|
Buy Now |
|
element14
from US$4.23
|
156
in stock
|
Buy Now |
|
Rapid Electronics
from US$5.23
|
40
in stock
|
Buy Now |
|
Conrad
from US$5.85
|
40
in stock
|
Buy Now |
|
TME
from US$4.21
|
30
in stock
|
Buy Now |
|
Offical Electronic
-
|
693
in stock
|
Buy Now |
|
Rutronik
from US$4.35
|
0
in stock
|
Buy Now |
|
Compona
from US$3.25
|
0
in stock
|
Buy Now |
|
Sager
from US$3.39
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$3.69
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.61
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 9 |
| Color Resin | Green |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 9.200/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.800µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
