1731070091 FCT Products by Molex

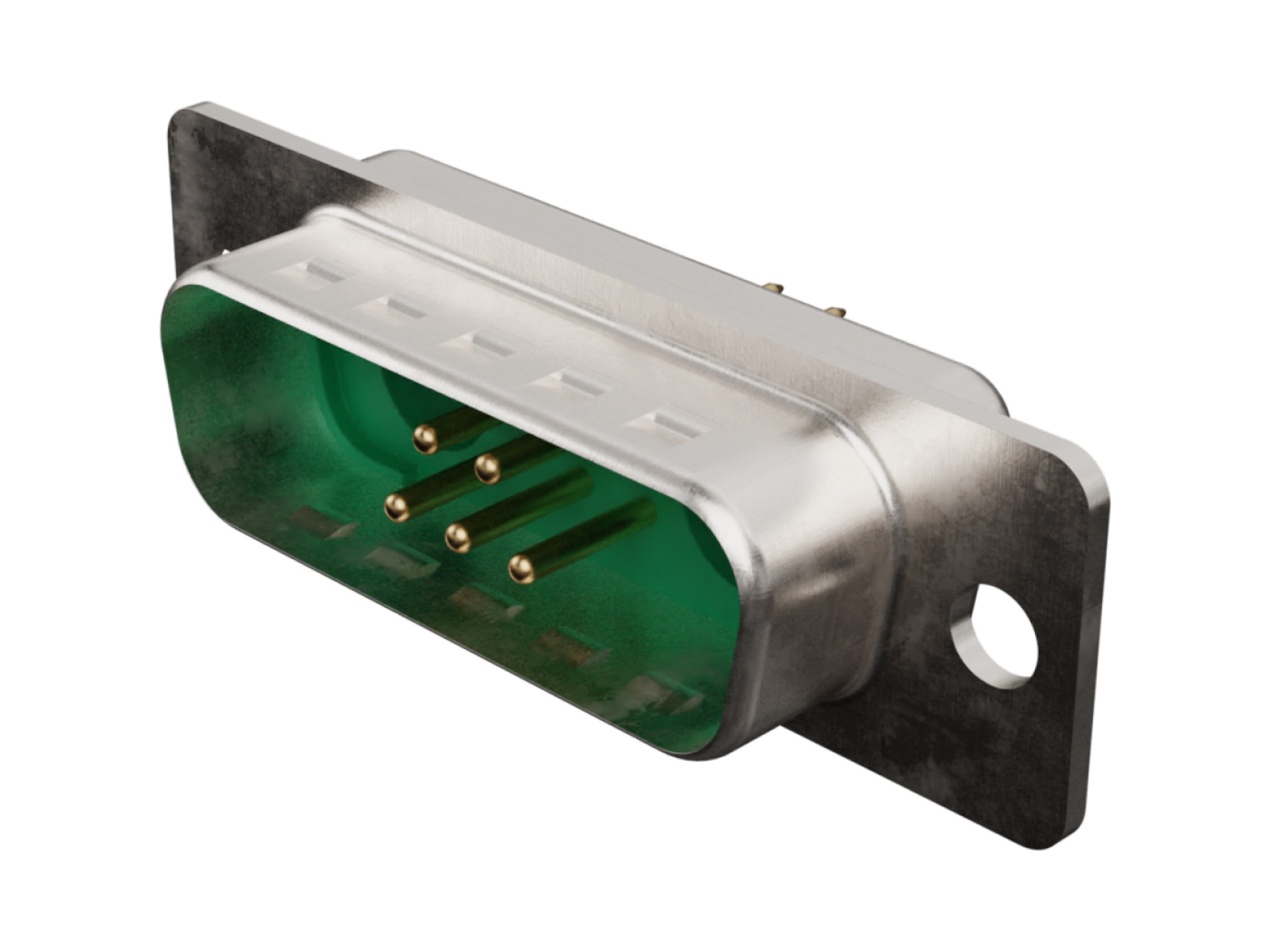

FCT Mixed Layout D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, 10.30mm Tail Length, Tin-plated Shell with Dimples, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0091,
FM7W2P1-K120 |
Where to Buy
Prices starting from US$2.90
| Distributor | Stock | ||
|---|---|---|---|
|
Offical Electronic
-
|
50
in stock
|
Buy Now |
|
Rutronik
from US$4.81
|
0
in stock
|
Buy Now |
|
RS
from US$5.41
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$5.78
|
0
in stock
|
Buy Now |
|
Compona
from US$3.83
|
0
in stock
|
Buy Now |
|
element14
from US$4.10
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$4.57
|
0
in stock
|
Buy Now |
|
Sager
from US$2.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.60
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.93
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.82
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 7 |
| Color Resin | Green |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 6.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.30mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 7W2 D-Sub Mixed-Layout Male | Rutronik |
| FCT from Molex FM7W2P1-K120 / 1731070091 | RS |
| Fct Ml Dsub Str Pc Plg 7W2 Rohs Compliant: Yes |Molex/fct 173107-0091 | Newark Electronics |
| MOLEX FM7W2P1-K120 D-Sub Male connector shell Mixed Layout | Compona |
| FCT ML DSUB STR PC PLG 7W2 | element14 |
| D-Sub Mixed Contact Connectors FCT ML DSUB STR PC PLG 7W2 | Sager |
| FM7W2P1-K120 FCT ML DSUB STR PC PLG 7W2 | Heilind Americas |
| Combination Layout D Sub Connector, 173107 Series, DA-7W2, Plug, 7 Contacts, 5 Signal, 2 Power | Avnet Asia |
