1731070102 FCT Products by Molex

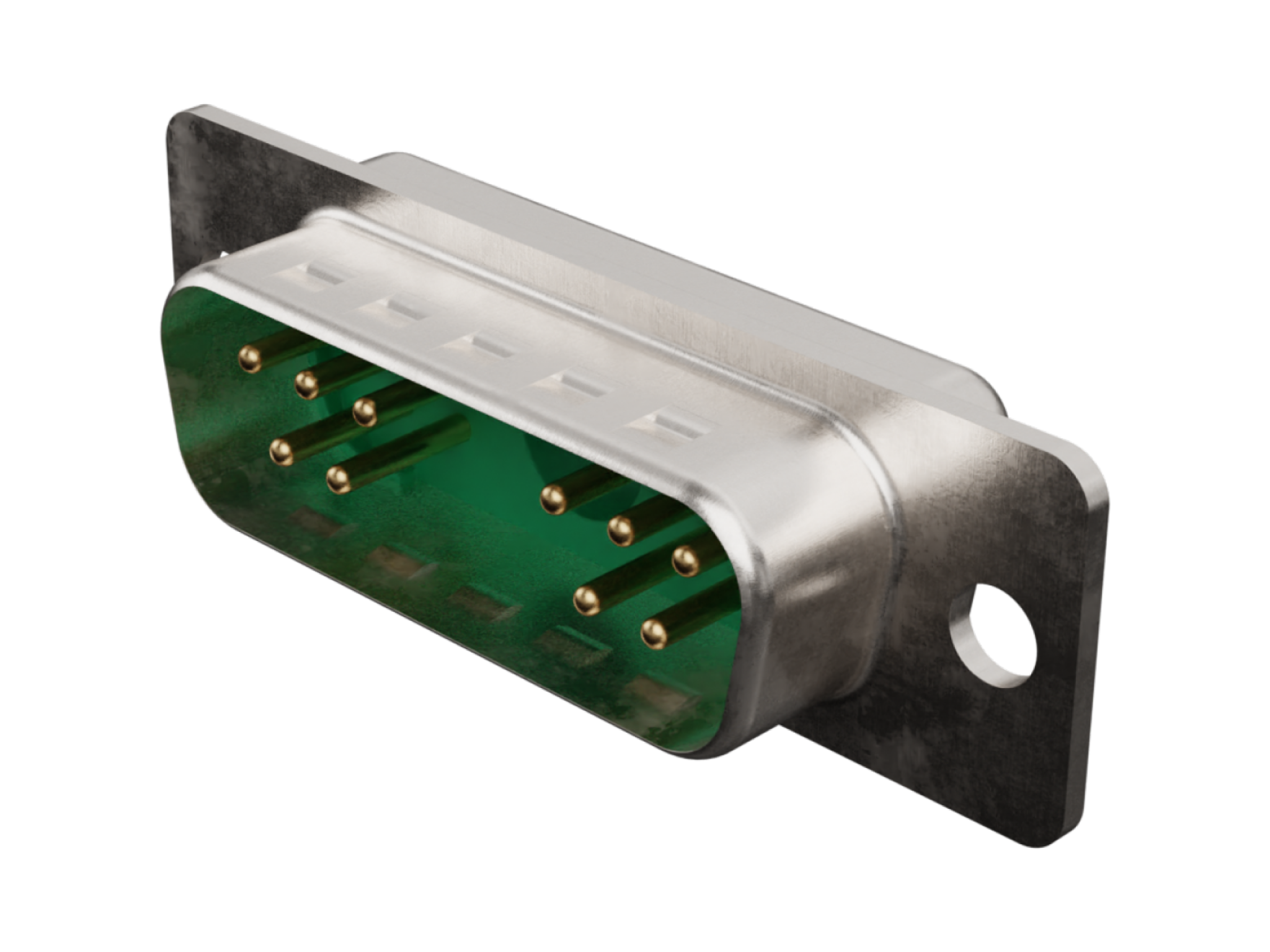

FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 11 Circuits Max, 10 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0102,
FM11W1P-K120 |
Where to Buy
Prices starting from US$3.77
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$4.35
|
1,400
in stock
|
Buy Now |
|
TME
from US$4.80
|
100
in stock
|
Buy Now |
|
Offical Electronic
-
|
100
in stock
|
Buy Now |
|
RS
from US$8.11
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$4.69
|
0
in stock
|
Buy Now |
|
Compona
from US$3.77
|
0
in stock
|
Buy Now |
|
element14
from US$5.21
|
0
in stock
|
Buy Now |
|
Sager
from US$4.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.11
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.05
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 11 |
| Color Resin | Green |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 6.700/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.800µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT ML DSUB CONNECTOR | TTI Europe |
| 173107-0102 | TME |
| FCT from Molex FM11W1P-K120 / 1731070102 | RS |
| Fct Ml Dsub Sdr Plg 11W1 Rohs Compliant: Yes |Molex/fct 173107-0102 | Newark Electronics |
| MOLEX FM11W1P-K120 Connector shell male D-Sub Mixed Layout | Compona |
| FCT ML DSUB SDR PLG 11W1 | element14 |
| D-Sub Mixed Contact Connectors FCT ML DSUB SDR PLG 11W1 | Sager |
| FM11W1P-K120 FCT ML DSUB SDR PLG 11W1 | Heilind Americas |
| COMBO D-SUB CONN, PLUG, DA-11W1 | Farnell |
