1731070171 FCT Products by Molex

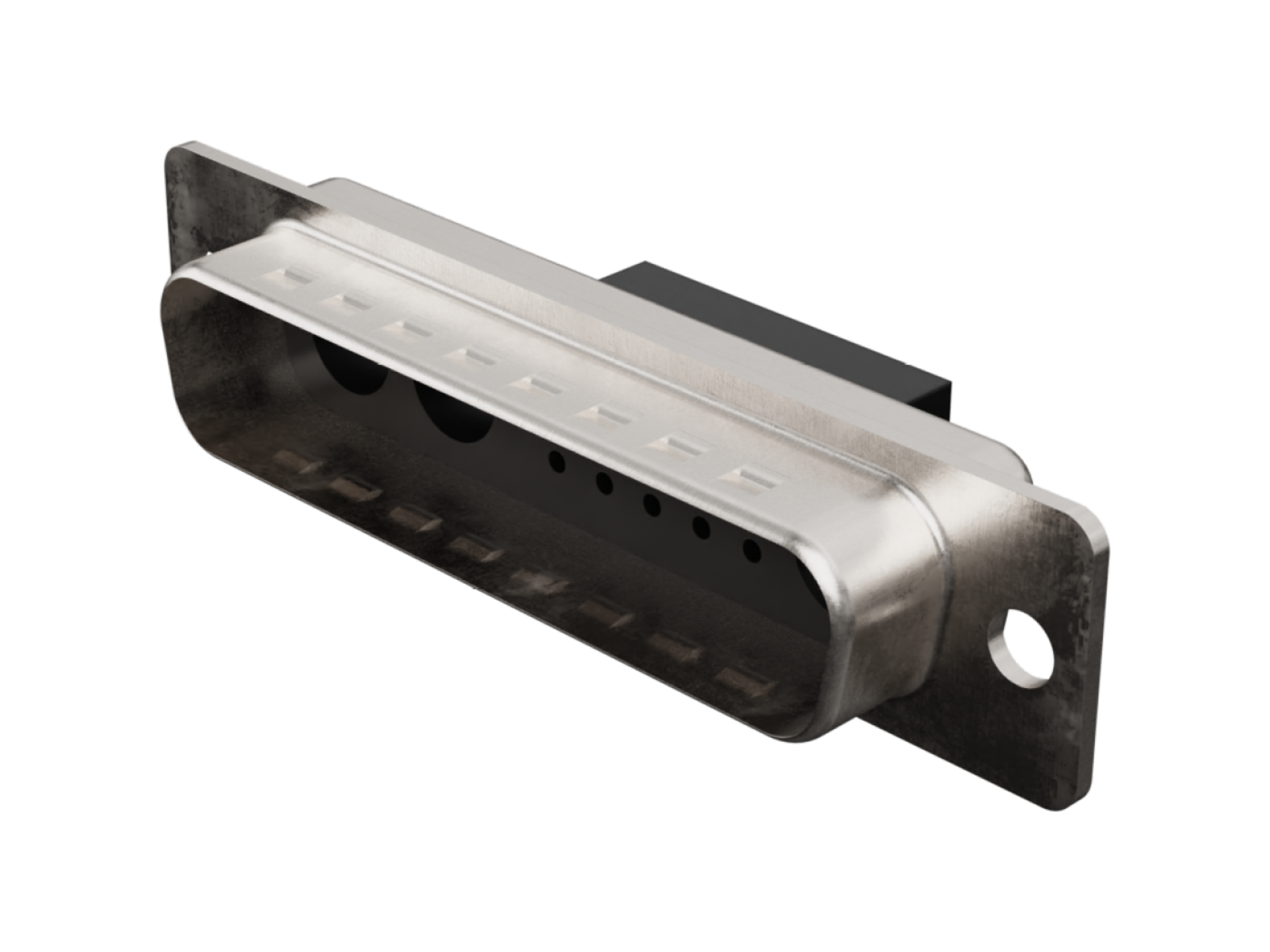

FCT Mixed Layout D-Sub Crimp Housing, Male, Tin-plated Shell with Dimples, 13 Circuits Unloaded, 10 Signal Contact Positions, Black Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0171,
FL13W3P7-K120 |
Where to Buy
Prices starting from US$2.09
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$2.30
|
50
in stock
|
Buy Now |
|
Newark Electronics
from US$3.18
|
0
in stock
|
Buy Now |
|
Compona
from US$2.09
|
0
in stock
|
Buy Now |
|
element14
from US$2.80
|
0
in stock
|
Buy Now |
|
Conrad
from US$3.41
|
0
in stock
|
Buy Now |
|
Sager
from US$2.17
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$2.23
|
0
in stock
|
Buy Now |
|
Farnell
from US$3.35
|
0
in stock
|
Buy Now |
|
EME
from US$3.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 13 |
| Color Resin | Black |
| Gender | Male |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 7.600/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +115°C |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 18, 20, 22, 24, 26, 28 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FL13W3P7-K120 FCT ML DSUB CRP PLG 13W3 | Heilind Europe |
| Fct Ml Dsub Crp Plg 13W3 Rohs Compliant: Yes |Molex 173107-0171 | Newark Electronics |
| MOLEX FL13W3P7-K120 Connector shell male D-Sub Mixed Layout | Compona |
| D-SUB HOUSING, PLUG, 13POS, DB-13W3 | element14 |
| Molex 1731070171 D-SUB Steckverbinder 1 St. | Conrad |
| D-Sub Mixed Contact Connectors FCT ML DSUB CRP PLG 13W3 | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731070171?
Additional datasheets, footprints and schematics for 1731070171 are listed on our Part Details page. You can also find images and similar parts to 1731070171 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731070171 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731070171 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731070171 fall under?
The 1731070171 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731070171 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731070171 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731070171 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731070171 have stock available?
Authorised distributors including Heilind Europe, Newark Electronics, Compona, element14 and Conrad have stock available or on a lead time for 1731070171.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731070171 often in real-time on the comparison pages.
What if I can't find stock of 1731070171?
You can fill out our help required form which you can use to request a quote for 1731070171 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
