1731070268 FCT Products by Molex

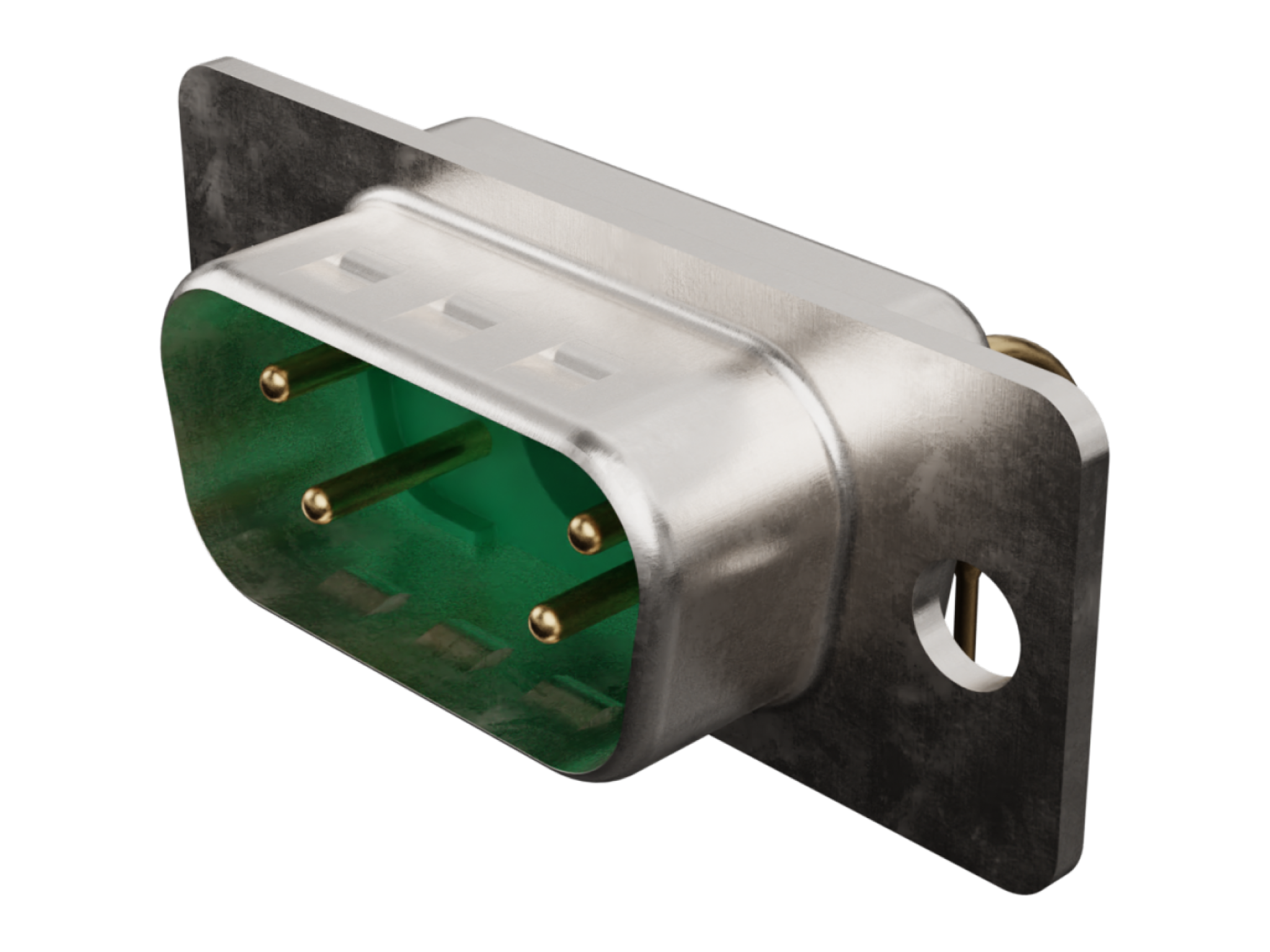

FCT Mixed Layout D-Sub Connector, Male, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell with Dimples, 5 Circuits Max, 4 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0268,
FM5W1P5-K120 |
Where to Buy
Prices starting from US$2.69
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.69
|
70
in stock
|
Buy Now |
|
element14
from US$5.68
|
70
in stock
|
Buy Now |
|
Farnell
from US$6.82
|
70
in stock
|
Buy Now |
|
TME
from US$4.72
|
37
in stock
|
Buy Now |
|
Sager
from US$3.18
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 5 |
| Color Resin | Green |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 8.300/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.10mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Ml Dsub Ra Pc Plg 5W1 Rohs Compliant: Yes |Molex 173107-0268 | Newark Electronics |
| FCT ML DSUB RA PC PLG 5W1 99AC4904 | element14 |
| Connector: D-Sub | TME |
| D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 5W1 | Sager |
| FM5W1P5-K120 FCT ML DSUB RA PC PLG 5W1 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731070268?
Additional datasheets, footprints and schematics for 1731070268 are listed on our Part Details page. You can also find images and similar parts to 1731070268 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731070268 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731070268 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731070268 fall under?
The 1731070268 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731070268 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731070268 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731070268 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731070268 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, TME and Sager have stock available or on a lead time for 1731070268.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731070268 often in real-time on the comparison pages.
What if I can't find stock of 1731070268?
You can fill out our help required form which you can use to request a quote for 1731070268 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
