1731070363 FCT Products by Molex

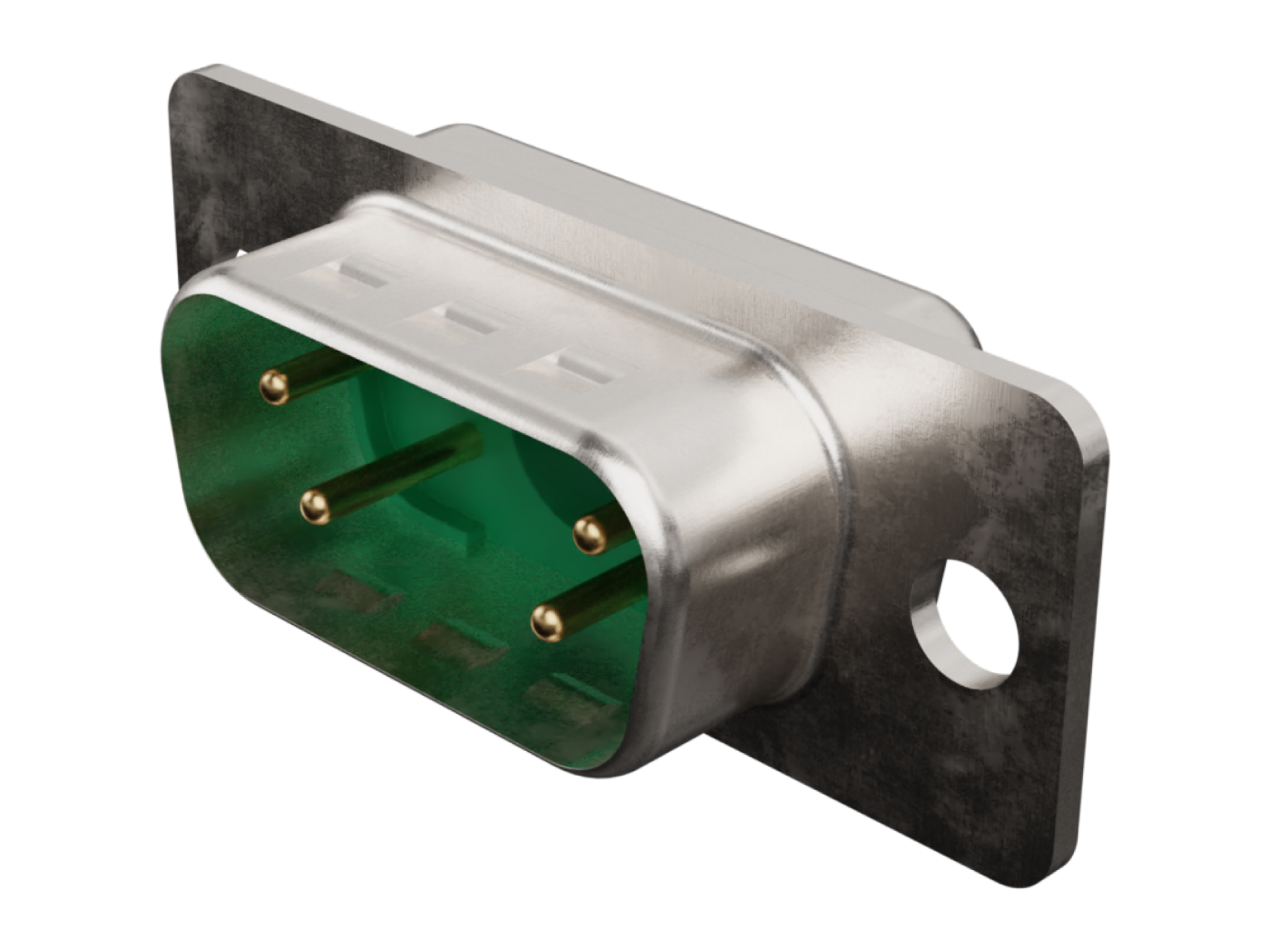

FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 5 Circuits Max, 4 Signal Contacts Loaded, Green Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173107-0363,
FM5W1P-K120 |
Where to Buy
Prices starting from US$2.38
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$2.73
|
1,617
in stock
|
Buy Now |
|
Avnet America
from US$2.38
|
0
in stock
|
Buy Now |
|
Compona
from US$2.67
|
0
in stock
|
Buy Now |
|
element14
from US$3.73
|
0
in stock
|
Buy Now |
|
Conrad
from US$5.02
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$2.75
|
0
in stock
|
Buy Now |
|
Farnell
from US$4.37
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 5 |
| Color Resin | Green |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 4.600/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.800µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FM5W1P-K120 FCT ML DSUB SDR PLG 5W1 | Heilind Europe |
| Conn Mixed Layout D Subminiature PIN 1 POS Power/4 POS Signal 1 Shell Size Solder Pot ST Panel Mount | Avnet America |
| MOLEX FM5W1P-K120 Connector shell male D-Sub Mixed Layout | Compona |
| FCT ML DSUB SDR PLG 5W1 | element14 |
| Molex 1731070363 D-SUB Steckverbinder Polzahl: 5 Lötkelch 1 St. | Conrad |
| COMBO D-SUB CONN, PLUG, DE-5W1 | Farnell |
