1731090121 FCT Products by Molex

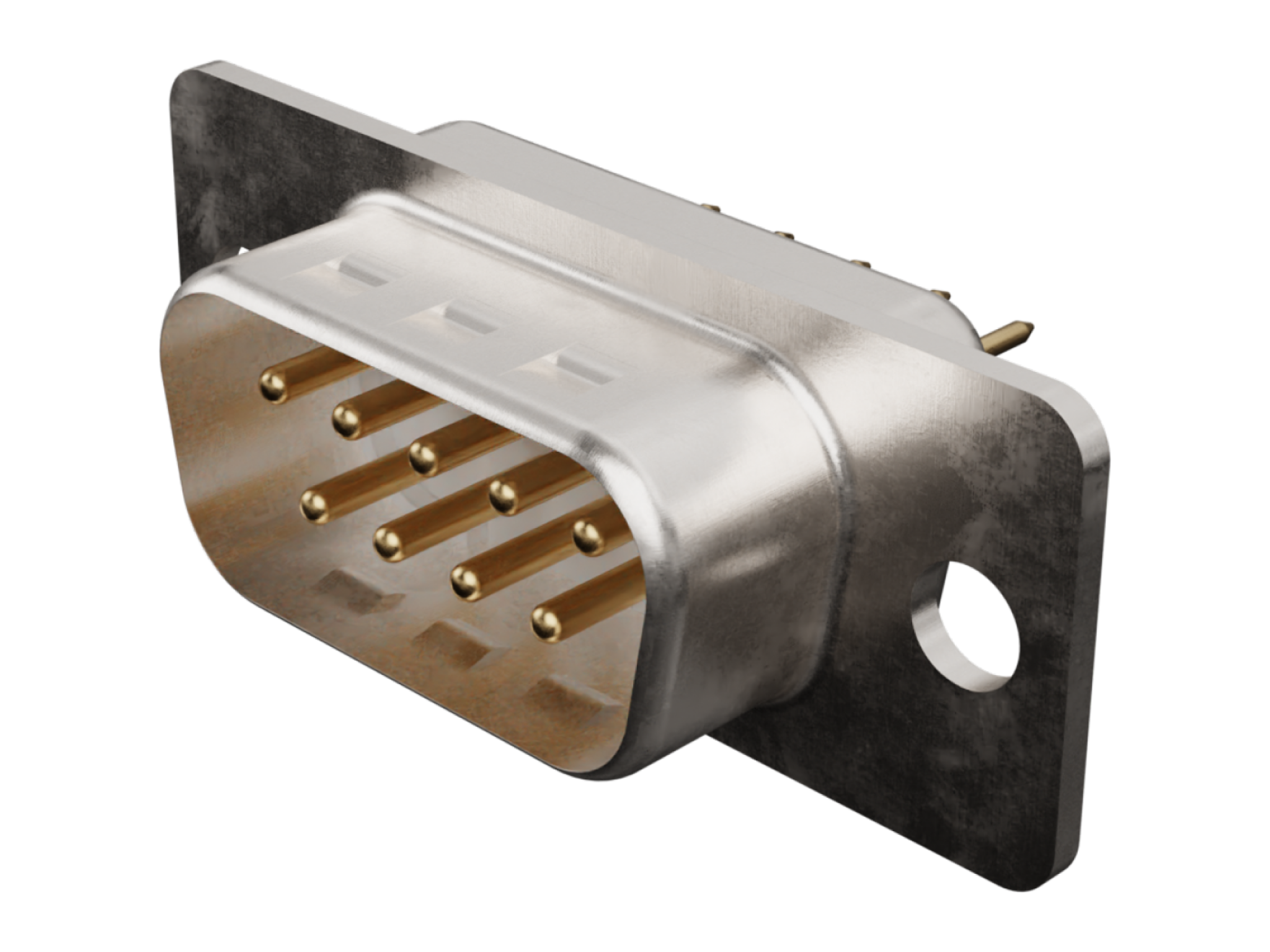

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 200 Mating Cycles, 9 Circuits, White Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173109-0121,
F09P1G2 |
Where to Buy
Prices starting from US$1.45
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$2.04
|
262
in stock
|
Buy Now |
|
RS
from US$4.36
|
242
in stock
|
Buy Now |
|
Offical Electronic
-
|
18
in stock
|
Buy Now |
|
Newark Electronics
from US$2.22
|
0
in stock
|
Buy Now |
|
TME
from US$2.05
|
0
in stock
|
Buy Now |
|
Compona
from US$1.45
|
0
in stock
|
Buy Now |
|
element14
from US$2.12
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.74
|
0
in stock
|
Buy Now |
|
Sager
from US$1.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.48
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.69
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | White |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 5.100/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.30mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| F09P1G2 FCT DSUB STR PC PLG 09 PN | Heilind Americas |
| D-Sub 9 way vertical PCB plug | RS |
| Fct Dsub Str Pc Plg 09 Pn Rohs Compliant: Yes |Molex 173109-0121 | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX F09P1G2 D-Sub Connector male 9p | Compona |
| FCT DSUB STR PC PLG 09 PN | element14 |
| FCT DSUB STR PC | TTI Europe |
| D-Sub Standard Connectors FCT DSUB STR PC PLG 09 PN | Sager |
| D SUB CONN, PLUG, 9POS, SOLDER | Farnell |
