1731090280 FCT Products by Molex

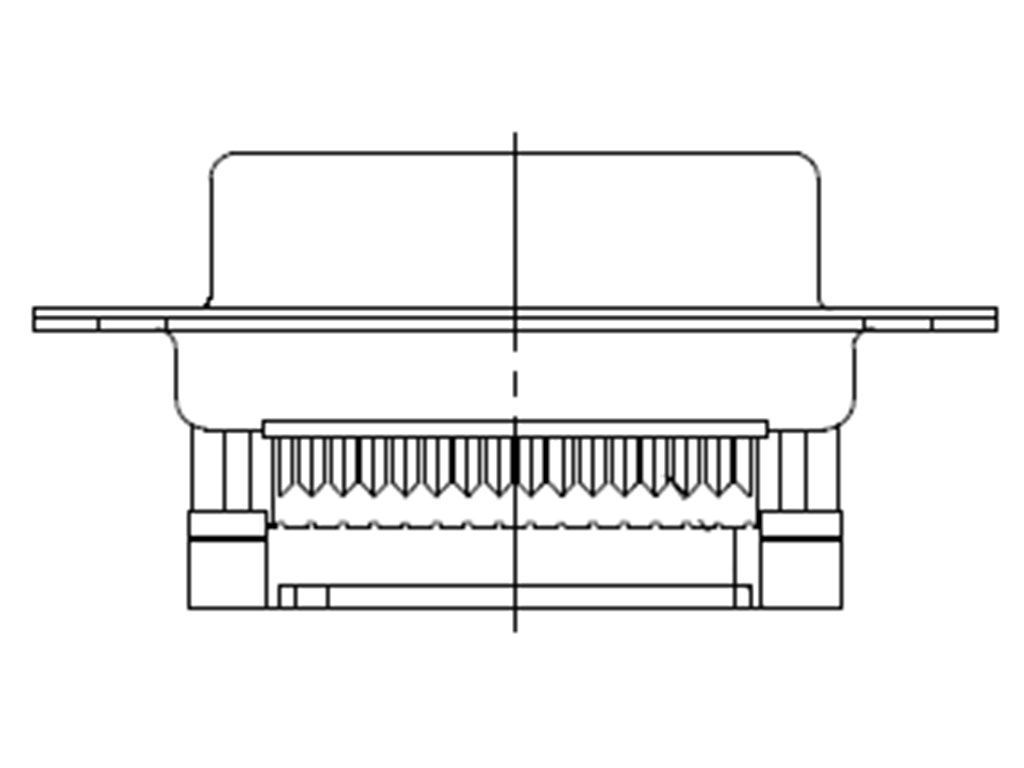

FCT Standard-Density D-Sub Connector, Female, Straight, IDC Ribbon, 0.20µm Gold Plating, 15 Circuits, Black Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173109-0280,
F15S15-K49 |
Where to Buy
Prices starting from US$2.52
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$6.28
|
100
in stock
|
Buy Now |
|
Newark Electronics
from US$2.52
|
12
in stock
|
Buy Now |
|
Heilind Europe
from US$7.23
|
9
in stock
|
Buy Now |
|
Offical Electronic
-
|
151
in stock
|
Buy Now |
|
RS
from US$10.10
|
0
in stock
|
Buy Now |
|
Avnet America
from US$4.90
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$34.67
|
0
in stock
|
Buy Now |
|
Compona
from US$5.26
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$6.07
|
0
in stock
|
Buy Now |
|
Sager
from US$4.85
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$6.02
|
0
in stock
|
Buy Now |
|
Farnell
from US$8.17
|
0
in stock
|
Buy Now |
|
EME
from US$7.11
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 11.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 2.000µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +130°C |
| Termination Style | IDC Ribbon |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 28 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| IDC RIBBON CONNECTORS | TTI Europe |
| Fct Dsub Idc Rcpt 15 Pn W/Clinch Rohs Compliant: Yes |Molex/fct 173109-0280 | Newark Electronics |
| F15S15-K49 FCT DSUB IDC RCPT 15 PN W/CLINCH | Heilind Europe |
| FCT from Molex F15S15-K49 / 1731090280 | RS |
| D Sub Connector, Receptacle, 173109, 15 Contacts, DA, IDC / IDT | Avnet America |
| HIGH-DENSITY WATERPROOF D-SUB, FEMALE, STRAIGHT, SOLDER CUP, GOLD, 44 CIRCUITS | RS Americas |
| MOLEX F15S15-K49 D-Sub Connector female 15p | Compona |
| FCT DSUB | TTI Americas |
| D-Sub Standard Connectors FCT DSUB IDC RCPT 15 PN | Sager |
| D SUB CONNECTOR, RCPT, DA, 15POS, IDC | Farnell |
