1731090479 FCT Products by Molex

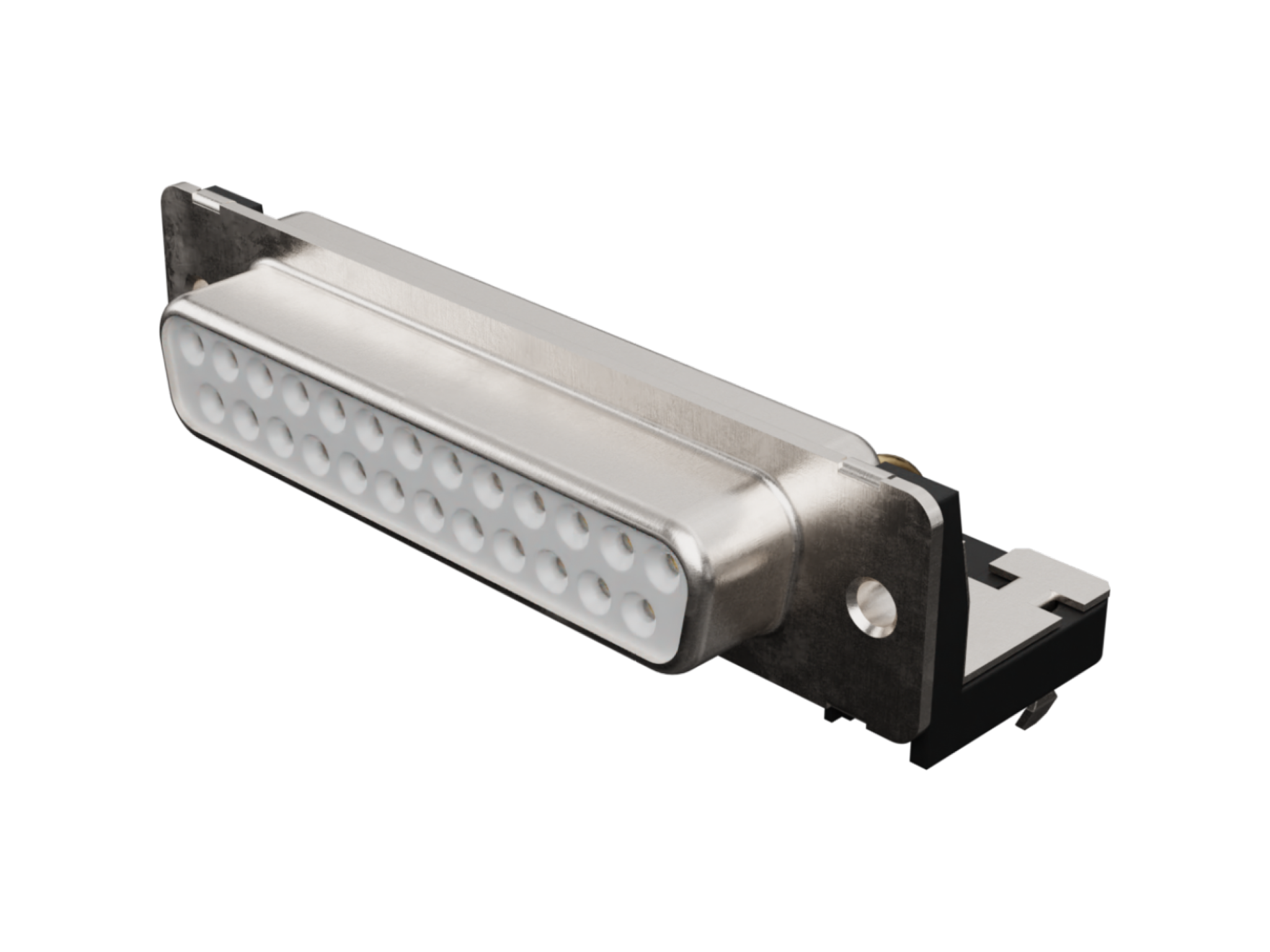

FCT Standard-Density D-Sub Connector, Female, Right-Angle, PCB Through Hole, 11.10mm Tail Length, Gold Plating, 200 Mating Cycles, Plastic Bracket with Snap-in Grounding Bracket and Clinch Nut, 25 Circuits, White Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173109-0479,
F25S5G2-0326 |
Where to Buy
Prices starting from US$8.89
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$13.97
|
0
in stock
|
Buy Now |
|
Compona
from US$10.96
|
0
in stock
|
Buy Now |
|
element14
from US$13.97
|
0
in stock
|
Buy Now |
|
Sager
from US$8.89
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$11.04
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$9.88
|
0
in stock
|
Buy Now |
|
Farnell
from US$15.02
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | White |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 16.900/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.10mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +125°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Dsub Ra Pc Rcpt 25 Pn W/Clinch Rohs Compliant: Yes |Molex 173109-0479 | Newark Electronics |
| MOLEX F25S5G2-0326 D-Sub Female connector 25p, 90° | Compona |
| FCT DSUB RA PC RCPT 25 PN W/CLINCH | element14 |
| D-Sub Standard Connectors FCT DSUB RA PC RCPT 25 PN W/CLINCH | Sager |
| F25S5G2-0326 FCT DSUB RA PC RCPT 25 PN W/ | Heilind Americas |
| FCT DSUB RA PC RCPT 25 PN W/CLINCH 99AC5203 | Farnell |
